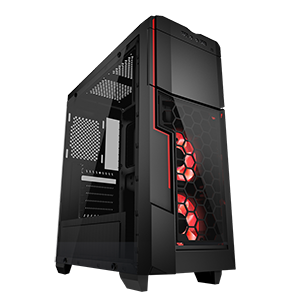

CRIMSON 211

PRODUCT SPECIFICATIONS

DIMENSIONS:480mm x 197mm x 427mm (H x W x D)

COLOR:Black

PRODUCT INFORMATION

▪Supports up to 340mm VGA cards.

▪High-quality transparent side panel allows for clear visuals to inner components.

Available Fan Ports:

2x120mm fan ports on the top

2x120mm / 2x140mm fan ports in the front

1x120mm fan port in the rear

▪Supports 240mm water cooling radiator.

Model
Model Name Crimson 211
Model Number CSAZ-211/CSAZ-211G
Specs
Type ATX Mid-Tower
Color Black (exterior)/Black (interior)
Side Panel CSAZ-211-Flat transparent side acrylic panel
CSAZ-211G-Tempered Glass With Rubber Mounts
Max CPU Cooler Height Up to 155mm
Max VGA Card Length Up to 340mm
Water cooling radiator Front: up to 240mm
Motherboard Compatibility ATX, Micro ATX(The width of main board doesn′t exceed 220mm.)
Power Supply Locations Rear Bottom
Expansion
External 5.25" Drive Bays: 1
Internal 2.5" Drive Bays Up to 3
Internal 3.5" Drive Bays Up to 3
Expansion slots 7
Front Ports 1 x USB 3.0, 1 x USB 2.0,HD Audio, Mic.
Cooling System 2x120mm Red LED fan in front
Available Fan Ports
Front 2x120mm / 2x140mm
Top 2x120mm
Rear 1x120mm
Physical Specs
Dimensions(HxWxD) 480x197x427mm / 18.9" x 7.8" x 16.8" inch
Weight 4.0Kg / 9.0 lbs
Carton Size (H x W x D) 500x245x530mm

OverclockZoneTV 2018/1/9

Azza Crimson 211 PC Case Review


  • The Crimson 211 is a very honest case, being simple yet effective. With a (flat transparent side acrylic panel), the case allows for easy viewing of the inner components.
    The Crimson 211 comes with two red LED fans on the front, providing exceptional airflow and cooling, while adding to the case’s aesthetics. The Crimson 211 supports 120mm and 240mm water cooling radiators. Supporting the longest video cards in the market, up to 340mm long, the Crimson 211 is extremely versatile.
    The power supply is housed inside its own isolated chamber, preventing the residual heat from the power supply from affecting the other components.

<

  • Supports VGA cards
    up to 340mm in length.


  • Support 2.5”Devices X3
    (D、E、F)

<

  • Support 3.5”HDD X3
    (A、B、C)


  • Supports two 120mm fan
    up to 240mm water cooling radiator in height.

<

  • Supports one 120mm fan
    up to 120mm water cooling radiator in height.


  • Supports two 120mm fan
    up to120mm water cooling radiator in length.
