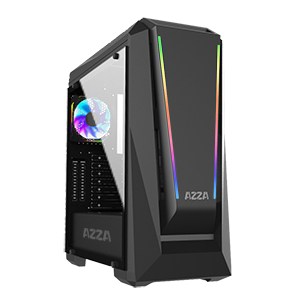

CHROMA 410A

PRODUCT SPECIFICATIONS

DIMENSIONS:520mm x205mm x 500mm (H x W x D)

COLOR:Black

Digital RGB light effects:

‧All Digital RGB light effects controlled by RF Remote (included) or motherboard

PRODUCT INFORMATION

‧Supports up to 400mm long Video cards.

‧High-quality tempered glass side panel allows for clear visuals to inner components.

Available Fan Ports:

2x120mm Fan ports on the top

3x120mm or 2x140mm Fan ports in the front

2x120mm black Fan (installed)

1x120mm Fan port in the rear

1x120mm PRISMA-Digital RGB Square Fan in the rear (installed)

‧Supports Water Cooling Radiators up to 240mm on top / 360mm in front.

Model
Model Name Chroma 410
Model Number CSAZ-410A
Specifications
Type ATX Mid-Tower
Color Black (exterior)/Black (interior)
Side Panel Window Tempered Glass With Rubber Mounts
Max CPU Cooler Height Up to 162mm
Max Video Card Length Up to 400mm long Video card
Power Supply Locations Not Included
Motherboard Compatibility ATX, Micro ATX
Expansion
External 5.25" Drive Bays: 0
Internal 2.5" Drive Bays Up to 6 (2 with metal tray)
Internal 3.5" Drive Bays Up to 2
Expansion slots 7(Horizontal)+2(Vertical)

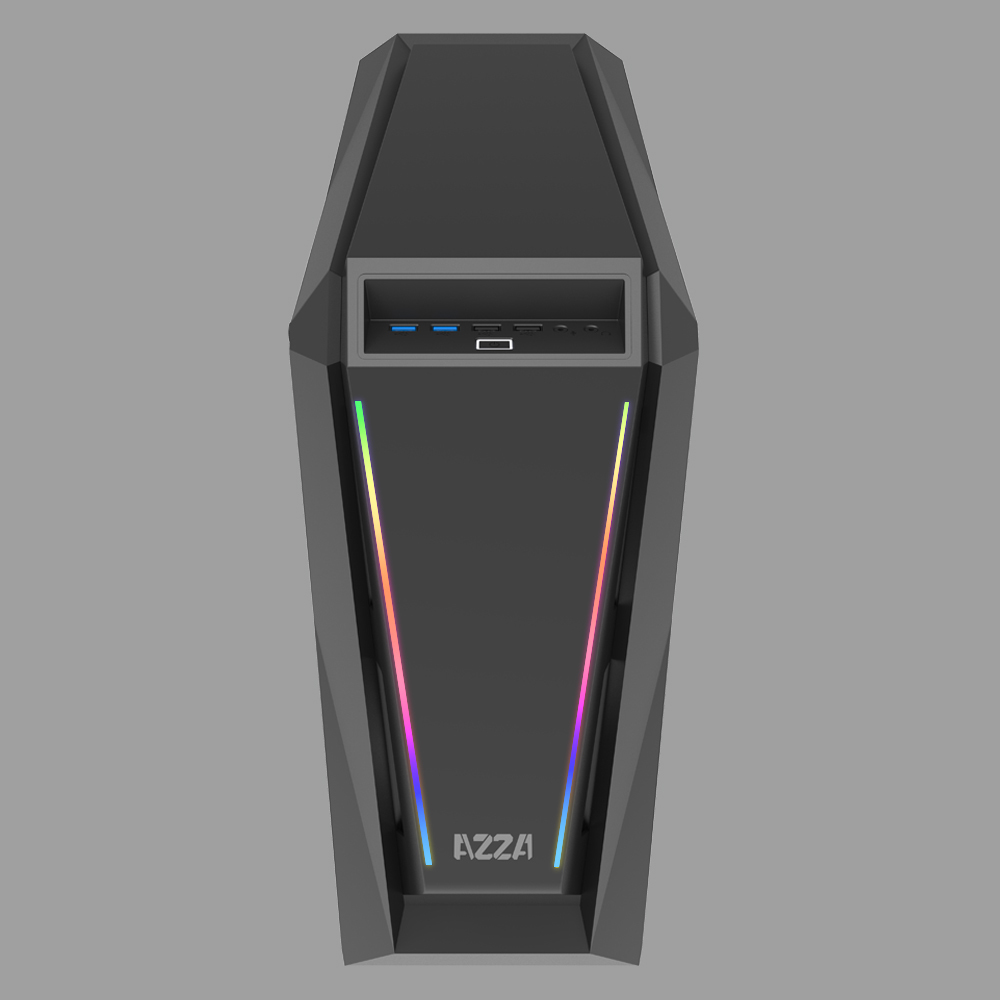

Top Ports 2xUSB3.0,2xUSB2.0, HD Audio
Physical Specs
Dimensions(HxWxD) 520x205x500mm / 20.5x8.1x19.7 inches
Weight 6.82 kg / 15.0 lbs
Carton Size (H x W x D) 570x295x572mm
Features
Digital RGB Light Effects Digital RGB Light on the front.
All Digital RGB light devices controlled by RF Remote (included) or motherboard

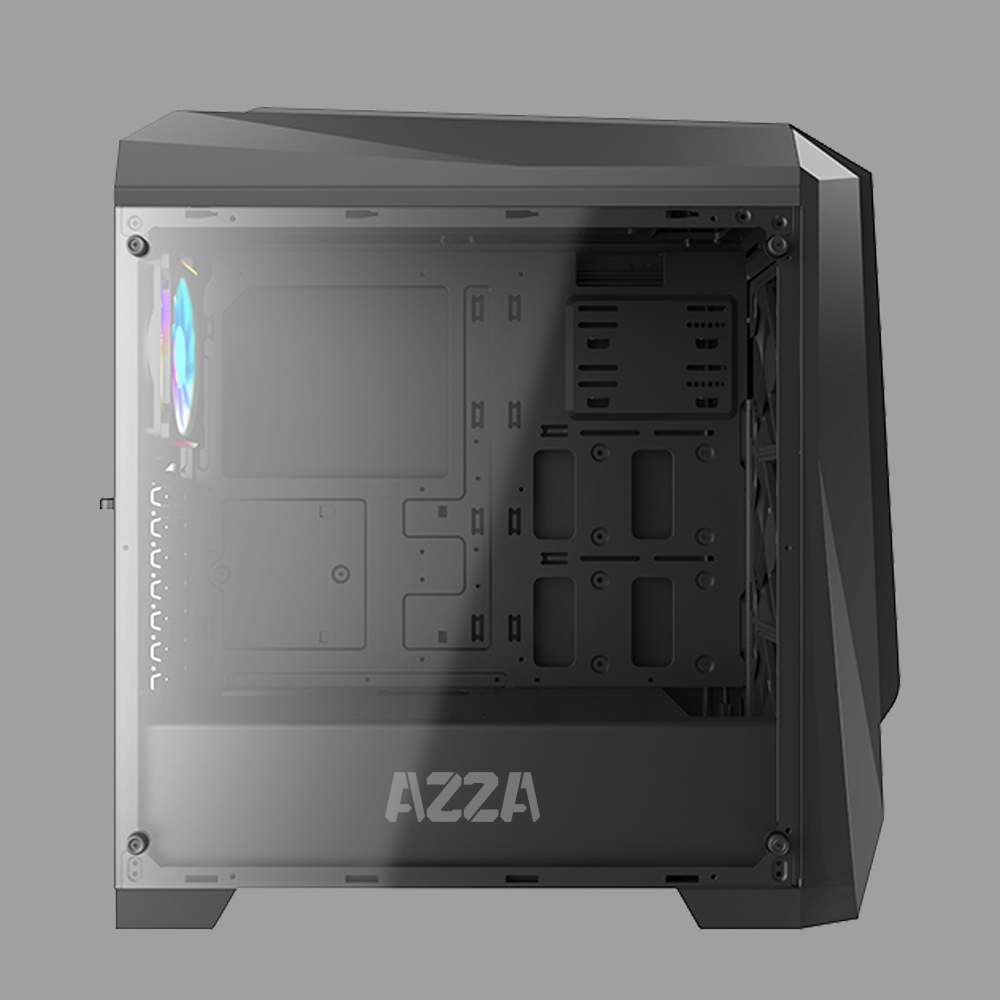

Tempered Glass Side Window High-quality tempered glass side window allows for clear visuals to inner components
Available Fan Ports
Front 3x120mm or 2x140mm
(2x120mm Black Fan included)
Top 2x120mm
Rear 1x120mm
(1x120mm PRISMA-Digital RGB Square Fan included)
Dust Filters Dustproof PVC Net x2 on bottom of Chassis
Water Cooling Supports radiators up to 240mm on top / 360mm in front
Isolated Chamber Power supply is housed inside its own isolated chamber,
preventing its heat from affecting other components
Water Cooling Supports radiators up to 240mm on top / 360mm in front
Easy Installation Cooler A pre-cut hole for easy installation of CPU Cooler,
eliminating the need to remove the motherboard

2018//

Azza Chroma 410B PC Case Review

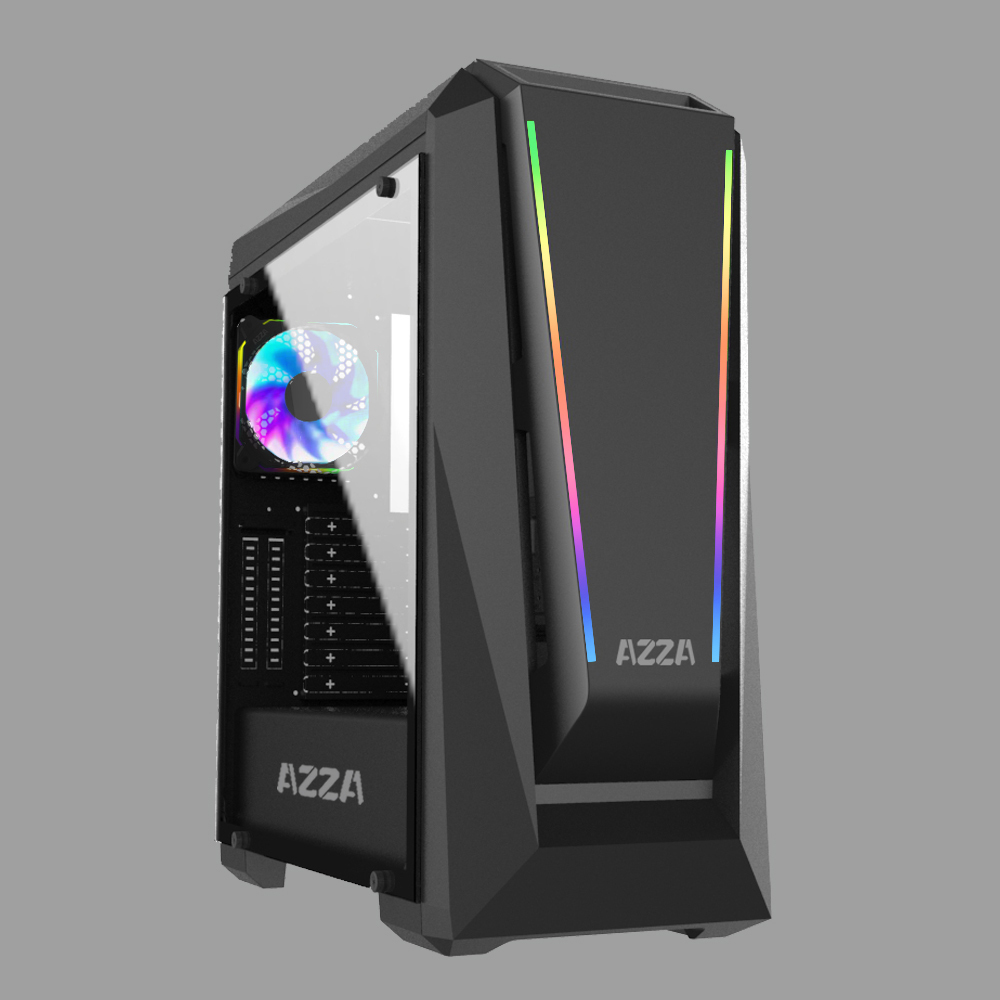

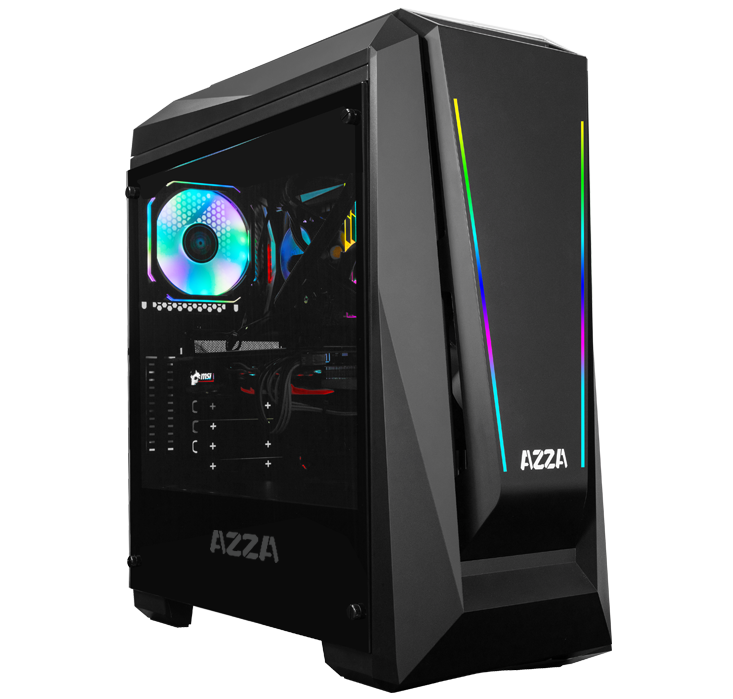

  • The Chroma 410A, along with its sister case, the Chroma 410B, is a mid-tower gaming case. As the name suggest, is an RGB lover’s dream. Armed with an RGB light strip on the front, and the beautiful PRISMA Digital RGB Square fan in the back, RGB fans can customize the look of this case to truly make it their own.
    It can support up to 400mm long video cards, supporting some of the longest cards available in the market, making it an ideal choice for a variety of different builds. The high-quality tempered glass side window allows you to show off your components in style, while also providing dust protection.
    The RGB lighting is all controlled with the included RF remote, so no need to fiddle around with software to get the RGB lights up and running. The Chroma 410A is the perfect case for those who are looking for a minimalistic case, yet still want the RGB flare that’s all the rage nowadays.

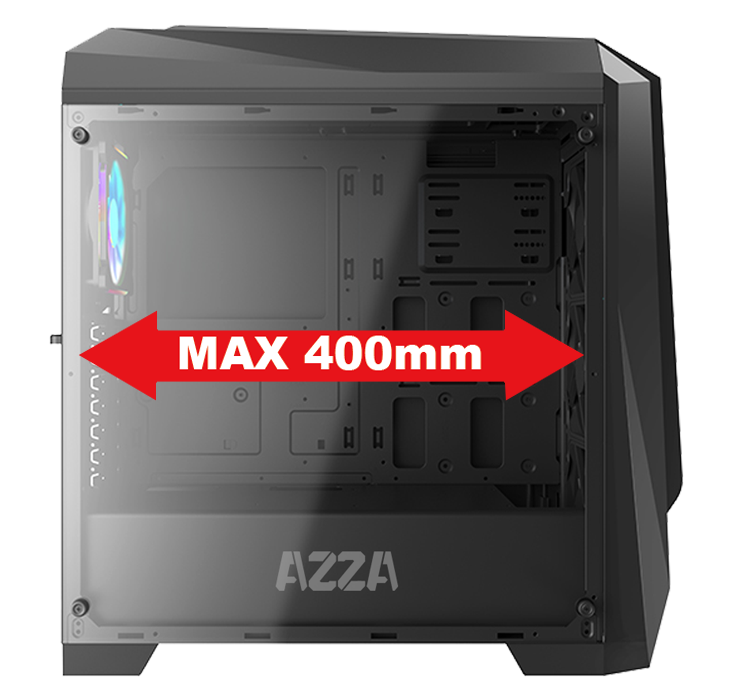

  • Supports Video cards
    up to long 400mm in length.

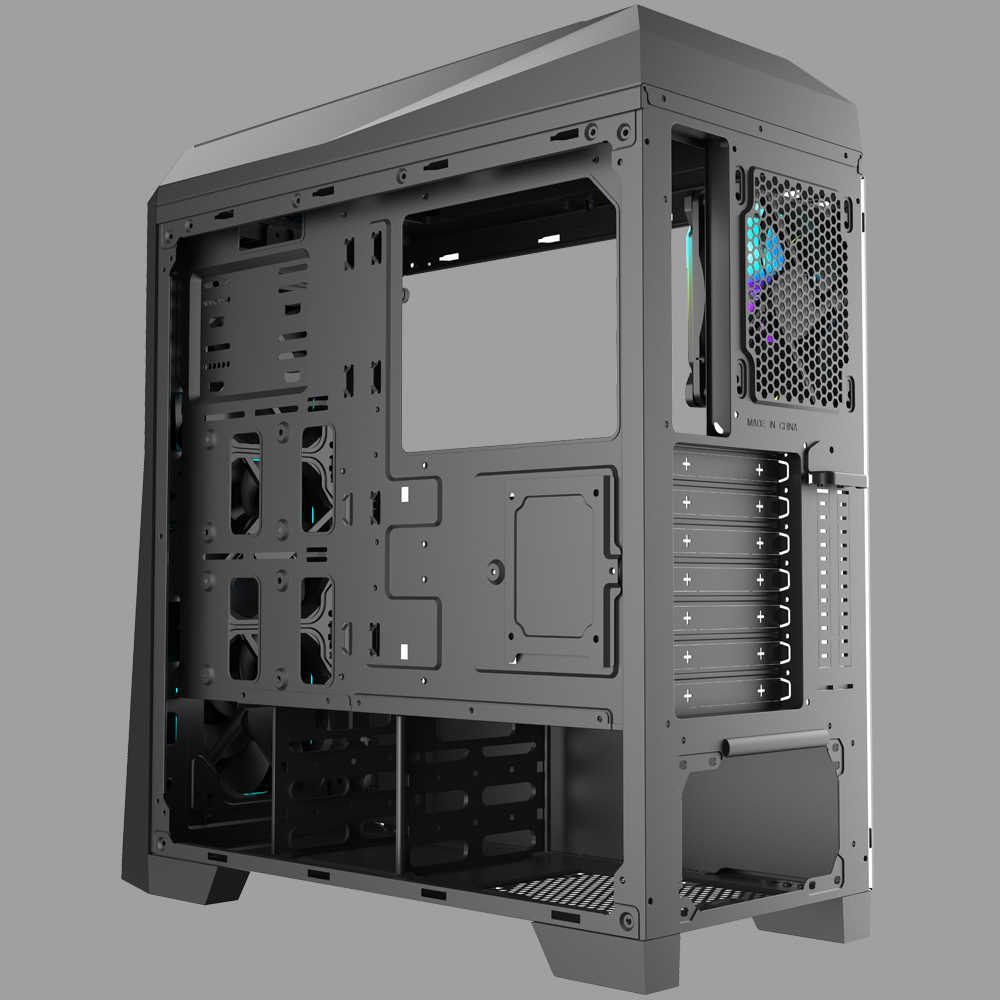

  • Two multifunctional brackets support
    2.5" SSD( A、B)
    Two mounting holes support
    2.5" devices.(C、D)

<

  • Two multifunctional trays support
    3.5" HDD or 2.5" SSD.( E、F)


  • TOP
    Supports for liquid cooling system
    (2 x 120mm Fan or Water Cooling Radiator 240 mm)

    FRONT
    Supports for liquid cooling system
    (3 x 120mm / 2 x 140mm Fan or Water Cooling Radiator 360 mm / 240 mm )
