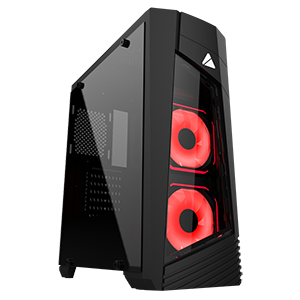

BLAZE 231

FEATURES SPECIFICATIONS REVIEW MANUAL

▪Supports up to 340mm long video card.

▪Left Side Panel:

Transparent acrylic for CSAZ-231, tempered glass for CSAZ-231G

Available Fan Ports:

2x120mm fan ports on the top

2x120mm or 2x140mm fan ports in the front

( 2x120mm PRISMA-RGB Fan included )

1x120mm fan port in the rear

▪Supports up to 240mm water cooling radiator.

Model
Model Name	Blaze 231
Model Number	CSAZ-231 / CSAZ-231G
Specifications
Type	ATX Mid-Tower
Color	Black (exterior)/Black (interior)
Side Panel Window:CSAZ-231	Transparent Acrylic with rubber mounts
Side Panel Window:CSAZ-231G	Transparent Glass with rubber mounts
Max CPU Cooler Height	Up to 155mm
Max VGA Card Length	Up to 340mm long video card
Power Supply	Not included
Motherboard Compatibility	ATX, Micro ATX
Expansion
External 5.25" Drive Bays:	0
Internal 2.5" Drive Bays	Up to 3
Internal 3.5" Drive Bays	Up to 3
Expansion slots	7
Top Ports	1 x USB 3.0, 1 x USB 2.0,HD Audio
Physical Specs
Dimensions(HxWxD)	480mmx197mmx427mm / 18.9 x7.8 x 16.8 inches
Weight:CSAZ-231	3.75Kg / 8.3 lbs
Weight:CSAZ-231G	4.8Kg /10.6lbs
Features
RGB Light Effects	RGB light on the front.All RGB light devices controlled by motherboard
Left Side Panel	Transparent acrylic for CSAZ-231, tempered glass for CSAZ-231G
Available Fan Ports	2x120mm ports on the Top
	2x120mm or 2x140mm ports in the Front
	(2x120mm PRISMA-RGB Fan included)
	1x120mm Fan port in the rear
Dust Filters	Removable(Magnetic) dustproof PVC Net on the bottom of chassis
Water Cooling	Supports radiators up to 240mm in front
Isolated Chamber	Power supply is housed inside its own isolated chamber, preventing its heat from affecting other components
Easy Installation Cooler	A pre-cut hole for easy installation of CPU Cooler, eliminating the need to remove the motherboard

000 1/1/1

Azza PC Case Review

Minimalistic designs are in. The Blaze 231 is a minimalist’s case and provides all the necessary features for an awesome gaming rig.
With a transparent side-panel, you can show off your rig with pride! With water cooling support and exceptional cable management, the Blaze 231 offers great airflow to help keep your rig cool for those intense gaming sessions.
Supporting some of the longest video cards in the market at 370mm, as well as compatibility with various motherboard sizes, the Blaze 231 is diverse enough to fit a variety of different setups.
Several red led fans are included, further enhancing airflow and giving the case a custom look. While it may not have all the bells and whistles, it comes with all you need to create an amazing gaming setup. Sometimes, simpler is better!
