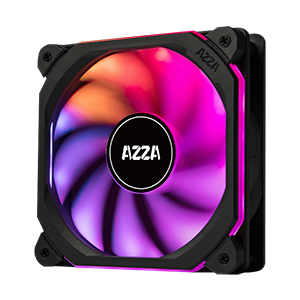

1 X PRISMA DIGITAL RGB FAN 120mm + Digital RF Remote (Optional)
PRODUCT SPECIFICATIONS
DIMENSIONS：120x120x33mm(HxWxD)
Color：Black
Parts list：
1 x Prisma digital RGB fan
1 x RF remote
PRODUCT INFORMATION
▪ATTRACTIVE –With Vibrant Digital RGB lighting and a unique Square design with individually addressable RGB LED diodes (5V), the PRISMA Digital RGB Square Fan is an attractive lighting option to any setup. WS2812B-compliant.
▪ENHANCED COOLING –Our fan blades will improve cooling performance with their unique design.
▪QUIET – Rubber pads are mounted on all four corners of the fan, offering improved performance over standard fans by offering less vibration, less noise, and less turbulence.
▪SYNC DIGITAL RGB – By plugging the AZZA PRISMA digital RGB square fan into a motherboard/lighting controller that is compatible with addressable RGB lights, the lighting and fan speeds can be controlled directly.
| Model Name | Prisma Digital RGB |
| Model Number | FFAZ-12DRGB-011(NO RF Remote)/FFAZ-12DRGB-211 (Include RF Remote) |
| Rating Voltage | DC12V (Fan) DC5V (LED) |
| Rated Voltage | DC6.0-13.8V (Fan) DC4.5-5.3V (LED) |
| Start-up Voltage | DC6V (Fan) (ON/OFF) DC4.5V (LED) (ON/OFF) |
| Rated Current | Max: 240mA (Fan) Max: 1080mA (LED) |
| Life Expectancy | 40000 hrs ,25℃ |
| Bearing Type | Hydro Bearing |
| Fan Speed | 800-1600 RPM |
| Air Pressure | 1.7mmH2O |
| Noise Level | 31.0dB |
| Max.Air Flow | 52.1 CFM |
| Connector | 4PIN PWM & Molex connector(Fan) |
| 5V,3pin WS2812B Addressable RGB Header: Male & Female header | |
| Fan Dimensions | 120x120x33mm |
| Weight | 0.16kg |
tech-legend 2019/9/20
1 X PRISMA DIGITAL RGB FAN + Digital RF Remote (Optional) Review
tech-legend 2019/9/20
1 X PRISMA DIGITAL RGB FAN + Digital RF Remote (Optional) Review
< -
Cylindrical Lighting
Instead of a tiny ring of light,why not light up the whole thing?
With a frame constructed of acrylic material, the PRISMA DIGITAL RGB fan allows for Digital RGB lightning to illuminate evenly throughout the entire frame, giving you a clean Digital RGB aesthetic.
-
Silence
Rubber pads are mounted on all four corners of the fans, offering improved performance over standard fans by offering less vibration, less noise, and less turbulence
< -
PRISMA Digital RGB SQUARE Fan Installation For Motherboard
Connecting a strip to an incorrect connector can potentially cause damage to the LED strip, due to the RGB, and Digital RGB connectors providing different voltages .
Our digital RGB devices are WS2812B-compliant.Please check your motherboard’s specifications before use. Do not go past the motherboard’s allowed limits on power rating and LED count when connecting multiple fans/LED strips.
“PRISMA Digital RGB fan supports direct connection to the 5V addressable RGB header on compatible motherboards, such as MSI™, ASUS™, ASROCK™, and Gigabyte™.”
