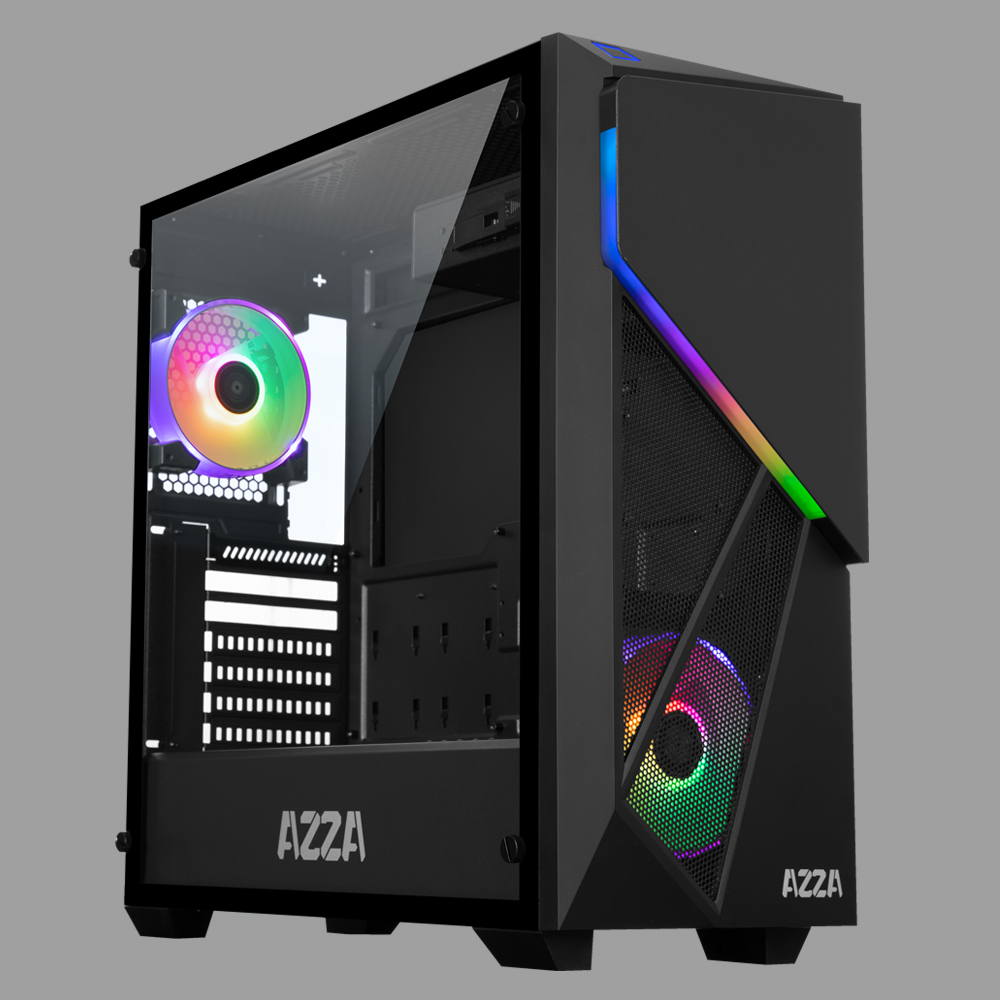

INFERNO 310 DH
PRODUCT SPECIFICATIONS
DIMENSIONS：480mm x 205mm x 475mm (H x W x D)
COLOR：Black
Digital RGB light effects：
‧2x AZZA HURRICANE II Digital RGB fans

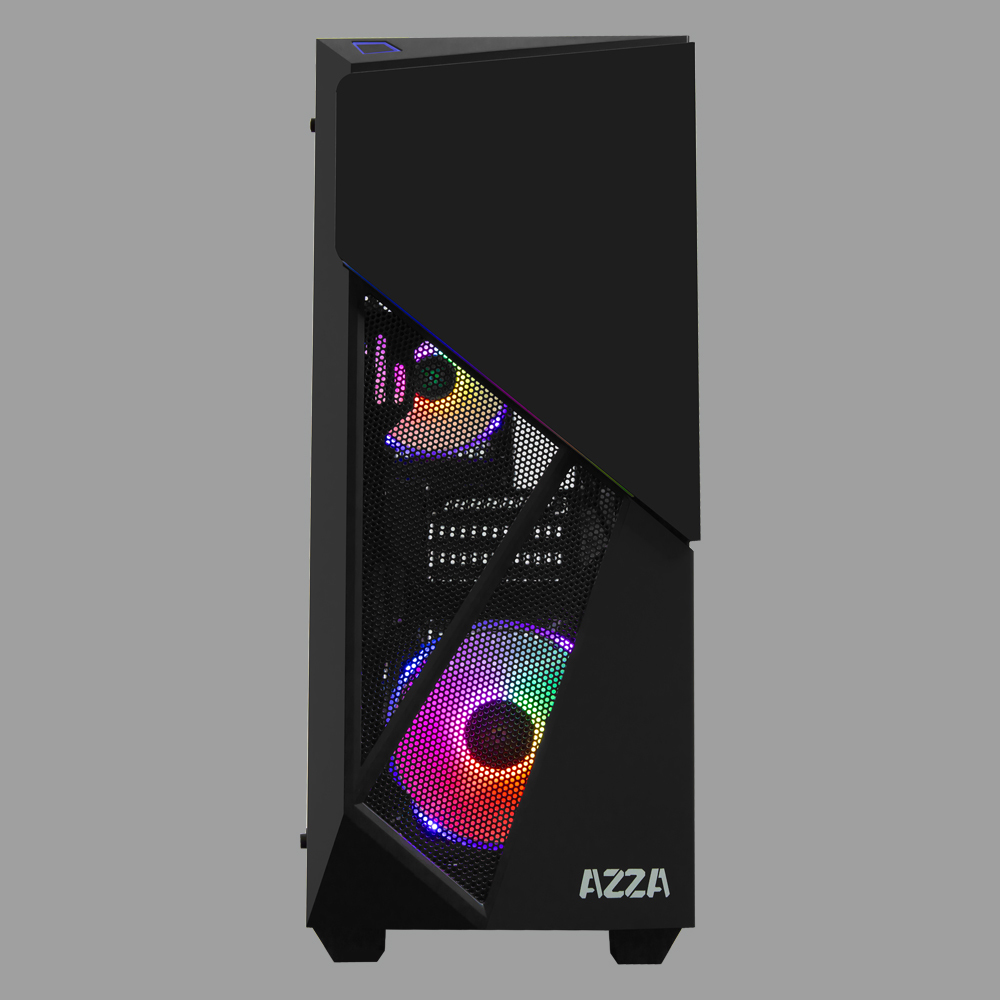

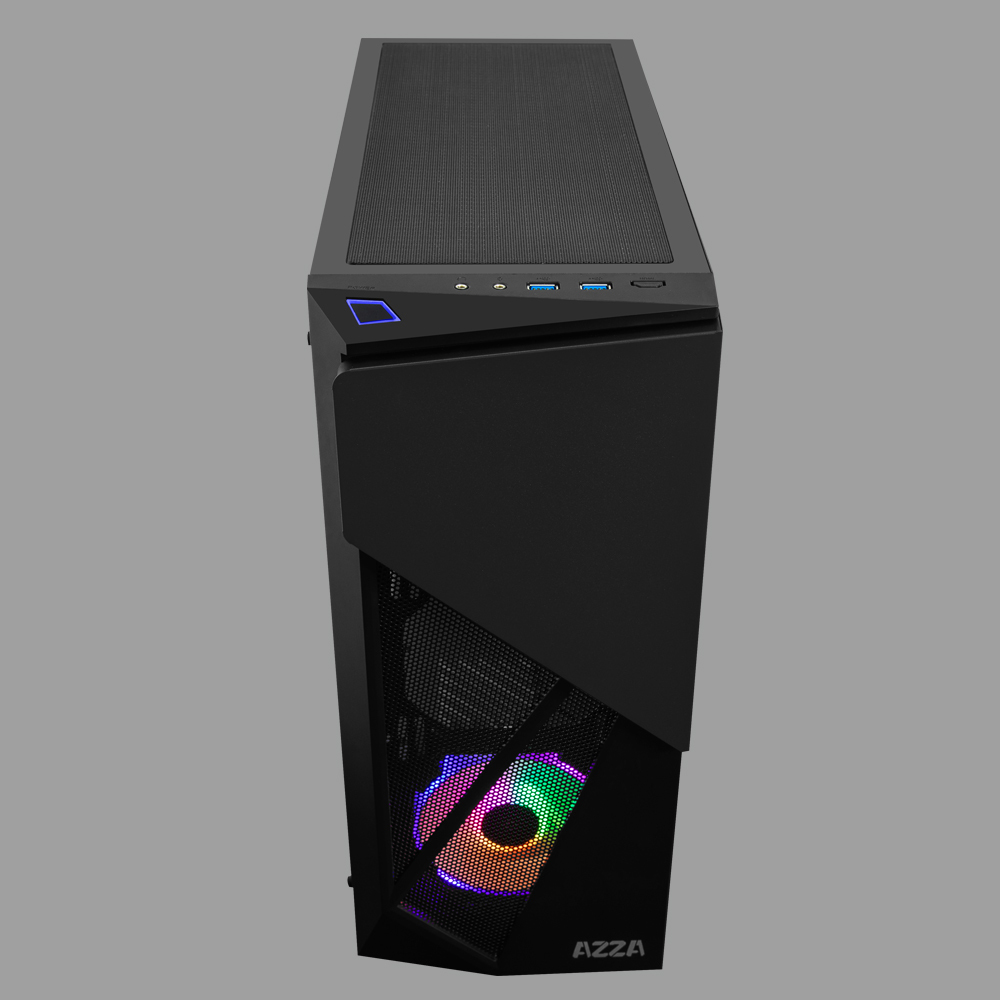

‧Digital RGB LED front panel
‧All Digital RGB light effects controlled by Digital RGB RF Remote
PRODUCT INFORMATION
‧Supports up to 380mm Video cards.
‧High-quality tempered glass side panel allows for clear visuals to inner components.
Available Fan Ports:
3x120mm or 2x140mm fan ports on the top
2x120mm or 2x140mm fan ports in the front
1x120mm Hurricane II Digital RGB fan in the front (installed)
1x120mm Hurricane II Digital RGB fan in the rear (installed)
‧Supports up to 360mm water cooling radiator.
| Model | |
|---|---|
| Model Name | Inferno |
| Model Number | CSAZ-310DH |
| Specifications | |
| Type | ATX Mid-Tower |
| Color | Black (exterior)/Black (interior) |
| Side Panel | Tempered Glass With Rubber Mounts |
| Max CPU Cooler Height | Up to 155mm |
| Power Supply | Not Included |
| Motherboard Compatibility | ATX, Micro ATX |
| Expansion | |
| External 5.25" Drive Bays: | 1 |
| Internal 2.5" Drive Bays | Up to 6 (2 with metal tray) |
| Internal 3.5" Drive Bays | Up to 2 |
| Expansion slots | 7 |
| Cooling System | |
| Fans Installed | Front 1x120mm AZZA HURRICANE II Digital RGB fan, Rear 1x120mm AZZA HURRICANE II Digital RGB fan |
| Physical Specifications | |
| Dimensions(HxWxD) | 480x205x475mm / 18.9x8.1x18.7 inches |
| Weight | 6.7 kg / 14.8 lb |
| Features | |
| Digital RGB Light Effects | Digital RGB Light on Front, 2x120mm Digital RGB fans All Digital RGB light devices controlled by Digital RGB RF Remote |
| Max video Card Length | Supports up to 380mm long video cards |
| Tempered Glass Side Window | High-quality tempered glass side window allows for clear visuals to inner components |
| Available Fan Ports | 3x120mm or 2x140mm ports on the Top |
| 3x120mm or 2x140mm ports in the front | |
| (1x120mm AZZA Hurricane II Digital RGB Fan included) | |
| 1x120mm Fan port in the rear | |
| (1x120mm AZZA Hurricane II Digital RGB Fan included) | |

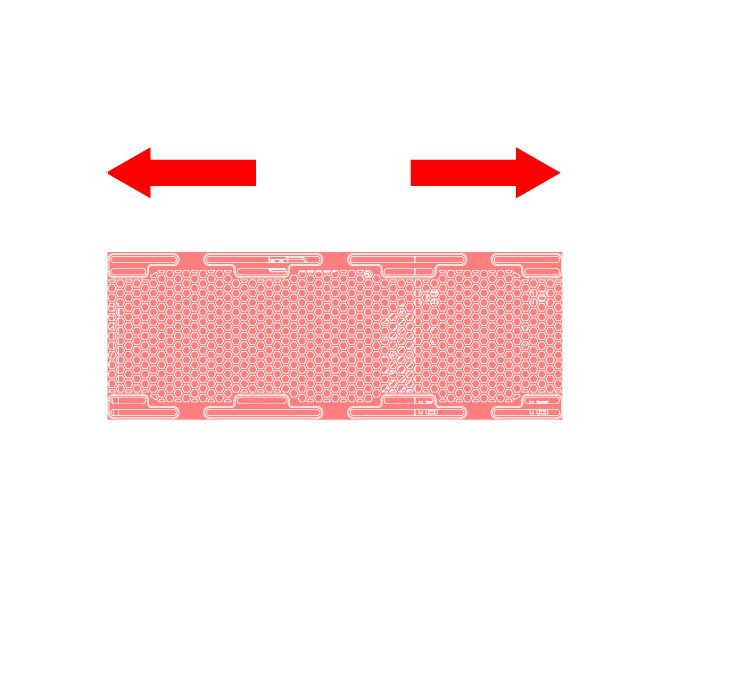

| Dust filters | Dustproof PVC Net top and bottom of Chassis |
| Water Cooling | Supports radiators up 360mm on top/280mm in front |

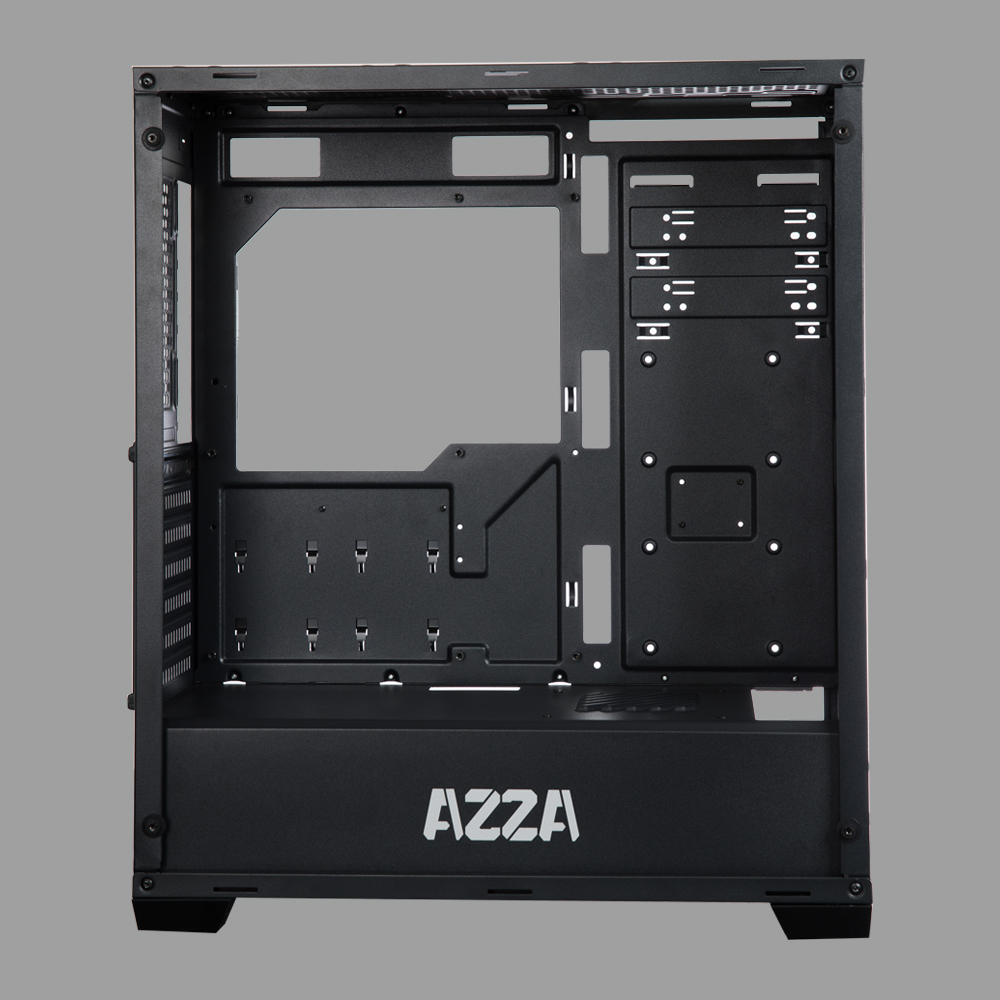

| Isolated Chamber | Power supply is housed inside its own isolated chamber, preventing its heat from affecting other components |
| Easy Installation Cooler | A pre-cut hole for easy installation of CPU Cooler, eliminating the need to remove the motherboard |
| Carton Size (HxWxD) | 544x274x538mm |
-

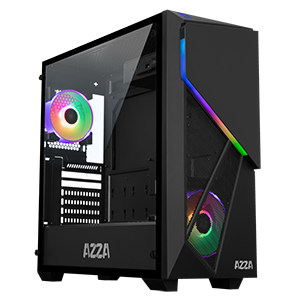

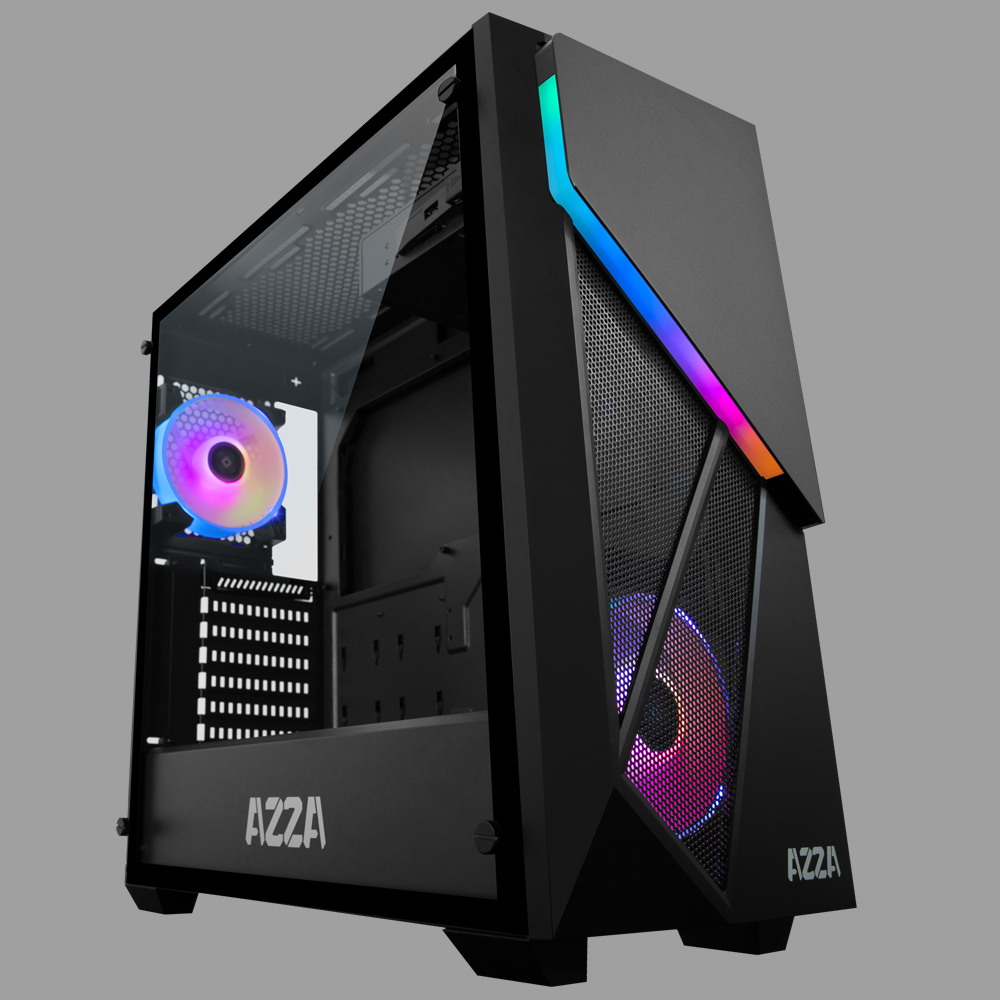

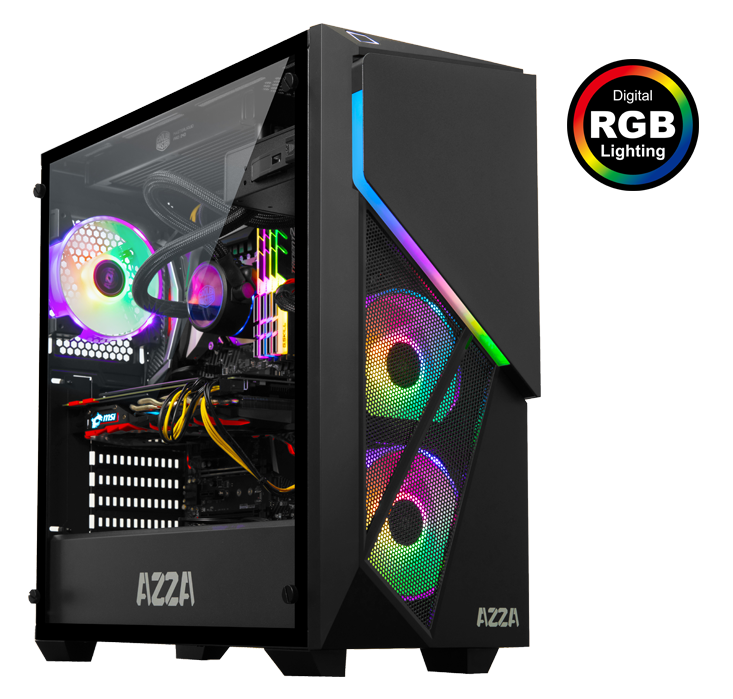

The Inferno 310DH is the hottest new case in our lineup, as it is geared towards users who want a lot of flare and style in their rig. With a sleek and sturdy tempered glass side panel, the case allows for easy viewing of the inner components.

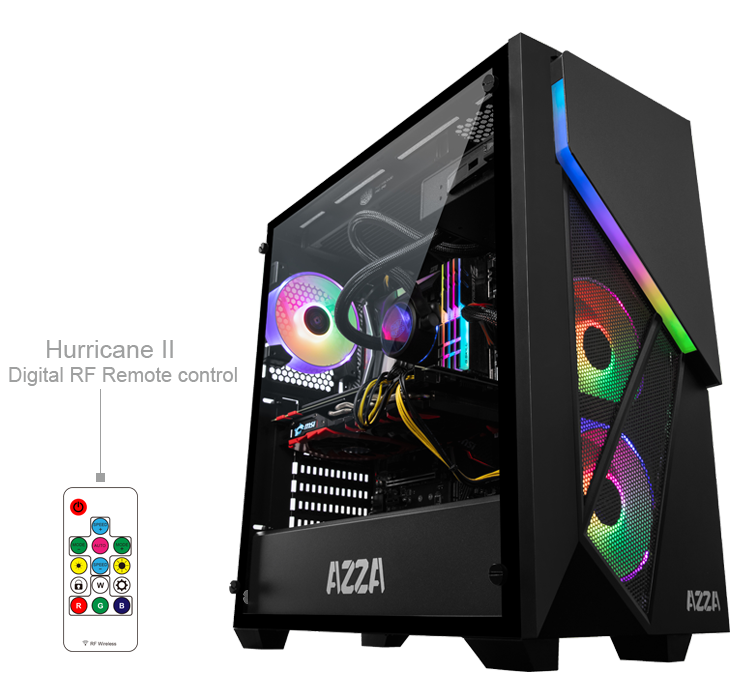

For those Digital RGB fanatics, the Inferno 310DH includes two of our HURRICANE II DIGITAL RGB fans, an Digital RGB strip on the front panel and AZZA logo with silk printing on the power supply chamber, all Digital RGB light devices are controlled by the Digital RGB RF Remote, all fully customizable, allowing you to make this case truly yours.
With a metal front door panel, the case features a sturdy design that is suited for all users.
The Inferno 310DH supports a 360mm water cooling radiator on the top, as well as a 280mm one on the front. The Inferno 310DH supports the longest video cards in the market, up to 380mm long. The power supply is housed inside its own isolated chamber, preventing the residual heat from the power supply from affecting the other components.
-
Supports Video cards
up to 380mm in length.
-

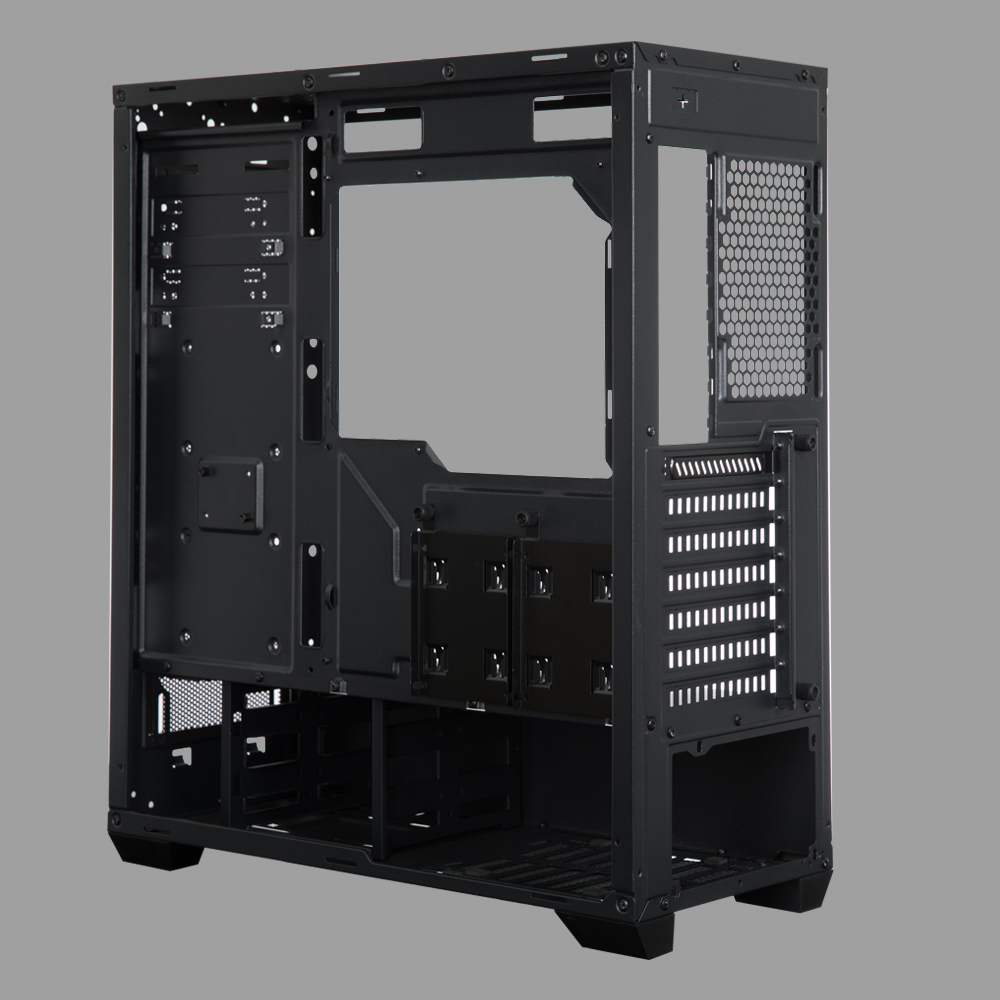

‧Two multifunctional brackets support
3.5" HDD or 2.5" SSD( A、B)
‧Two multifunctional brackets support
2.5" SSD( C、D)
< -
‧Two mounting holes support
2.5" devices.( E、F)
-

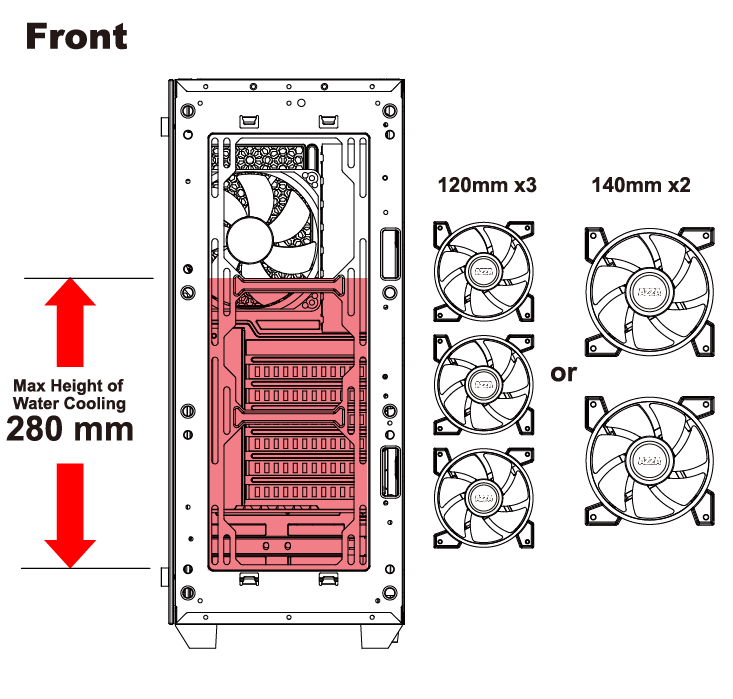

Supports up to 3 x 120mm or 2 x 140mm fan
up to 280mm water cooling radiator in height.
< -
Supports up to 2 x 140mm or 3 x 120mm fan
up to 360mm water cooling radiator in length.
