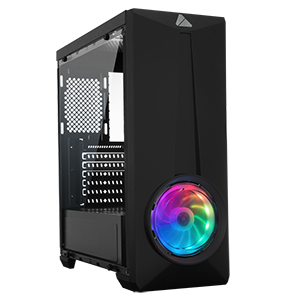

ARC 241
PRODUCT SPECIFICATIONS
DIMENSIONS：480mm x 197mm x 427mm (H x W x D)
COLOR：Black
PRODUCT INFORMATION
▪Supports up to 340mm long video card.
▪Left Side Panel:
Transparent acrylic for CSAZ-241, tempered glass for CSAZ-241G
Available Fan Ports:
2x120mm fan ports on the top
2x120mm or 2x140mm fan ports in the front
( 1x120mm built-in automatic lighting mode digital RGB Fan included )
1x120mm fan port in the rear
▪Supports up to 240mm water cooling radiator.
| Model | |
|---|---|
| Model Name | ARC 241 |
| Model Number | CSAZ-241 / CSAZ-241G |
| Specifications | |
| Type | ATX Mid-Tower |
| Color | Black (exterior)/Black (interior) |
| Side Panel Window:CSAZ-241 | Transparent Acrylic with rubber mounts |
| Side Panel Window:CSAZ-241G | Transparent Glass with rubber mounts |
| Max CPU Cooler Height | Up to 155mm |
| Max VGA Card Length | Up to 340mm long video card |
| Power Supply | Not included |
| Motherboard Compatibility | ATX, Micro ATX |
| Expansion | |
| External 5.25" Drive Bays: | 0 |
| Internal 2.5" Drive Bays | Up to 3 |
| Internal 3.5" Drive Bays | Up to 3 |
| Expansion slots | 7 |
| Top Ports | 1 x USB 3.0, 1 x USB 2.0,HD Audio |
| Physical Specs | |
| Dimensions(HxWxD) | 480mmx197mmx427mm / 18.9 x7.8 x 16.8 inches |
| Weight:CSAZ-231 | 3.75Kg / 8.3 lbs |
| Weight:CSAZ-231G | 4.8Kg /10.6lbs |
| Features | |
| Digital RGB Light Effects | Digital RGB light on the front |
| Left Side Panel | Transparent acrylic for CSAZ-231, tempered glass for CSAZ-231G |
| Available Fan Ports | 2x120mm ports on the Top |
| 2x120mm or 2x140mm ports in the Front | |
| (1x120mm built-in automatic lighting mode digital RGB Fan included) | |
| 1x120mm Fan port in the rear | |
| Dust Filters | Removable(Magnetic) dustproof net on the top and dustproof PVC Net on the bottom of chassis |
| Water Cooling | Supports radiators up to 240mm in front |
| Isolated Chamber | Power supply is housed inside its own isolated chamber, preventing its heat from affecting other components |
| Easy Installation Cooler | A pre-cut hole for easy installation of CPU Cooler, eliminating the need to remove the motherboard |
-
The Arc 241 is an attractive case that will make a create fit for any user who wants to get in on the RGB party, but without going all out. The case features a single, digital RGB ring fan on the front of the case, which displays an automatically-programmed lighting pattern.
The case comes in two variants, the regular 241, and the 241G. The only difference is that the 241G offers a tempered glass side panel, while the 241 has an acrylic side panel. Supporting video cards up to 340mm long, as well as water cooling radiators up to 240mm long, the Arc 241 has a very versatile offering of options.
With a plethora of fan ports, as well as an isolated chamber for the power supply to keep its heat away from other components, the Arc 241 offers exceptional cooling performance.
For those who want a little bit of RGB to spice up their setup but don’t want to dive in fully, the Arc 241 is a perfect case to consider.
< -
‧Supports Video cards
up to 340mm in length.
-
‧Support 2.5" Devices x3
(D、E、F)
< -
‧Support 3.5" HDD x3
(A、B、C)
-
Supports up to 2x120mm or 2x140mm fan
up to 240mm water cooling radiator in height.
< -
Supports up to 2 x 120mm fan
Up to 120 mm water cooling radiator in length.
-
Supports 1x120mm fan
up to 120 mm water cooling radiator in height.
