APOLLO 430
PRODUCT SPECIFICATIONS
DIMENSIONS：480mm x 205mm x 420mm (H x W x D)
COLOR：Black/White
PRODUCT INFORMATION
‧Supports up to 370mm long video card.

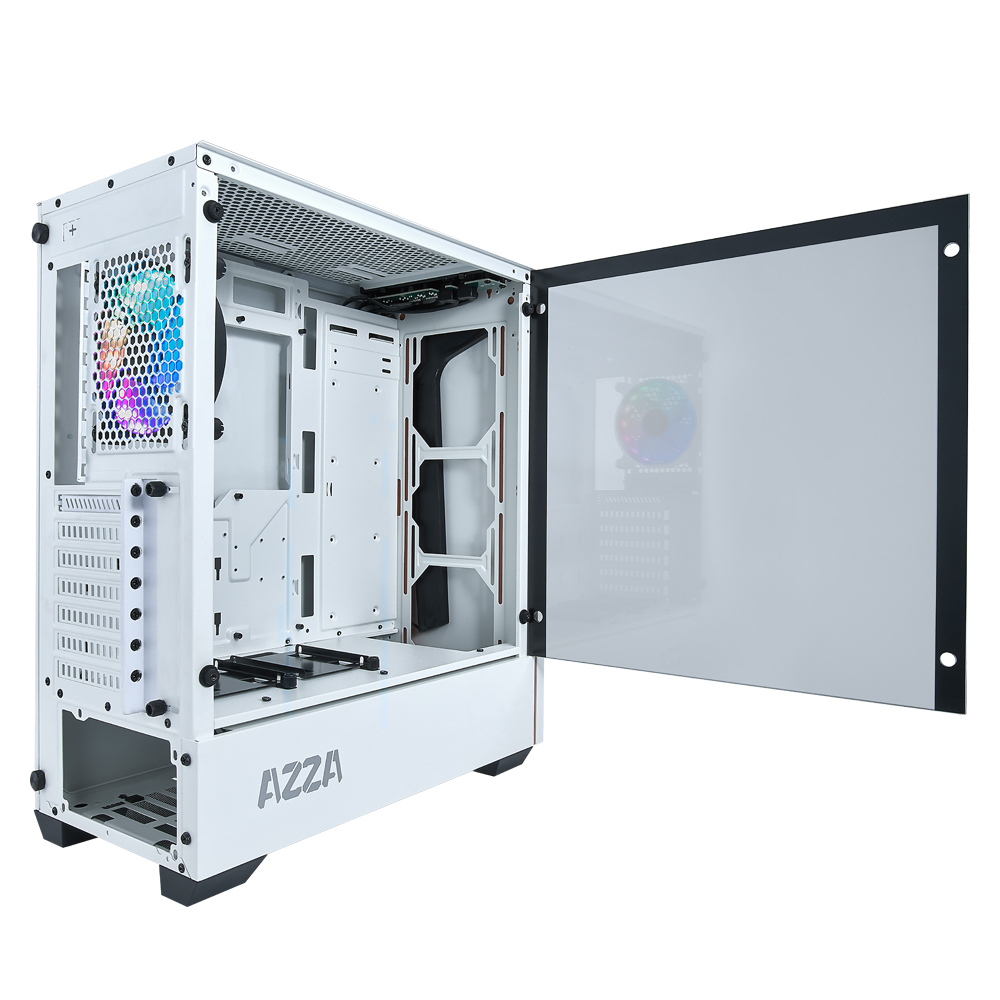

‧High-quality tempered glass side panel allows for clear visuals to inner components.
‧Available Fan Ports:
3x120mm or 2x140mm Fan ports in the front
2x120mm or 2x140mm Fan ports on the top
1x120mm Fan port in the rear
‧Supports radiators up to 240mm in the Front and up to 240mm on the Top
‧Model options depending on the matching fan difference.
| Model | |
|---|---|
| Model Name | APOLLO 430 |
| Model Number | CSAZ-430B-DF1 /CSAZ-430B-DF2 / CSAZ-430W-DF1 / CSAZ-430W-DF2 |
| Specifications | |
| Type | ATX Mid Tower |
| Color | Black/Black(interior), White/White(interior) |
| Side Panel Window | Left Side panel: Tempered Glass with rubber mounts |
| Max CPU Cooler Height | Up to 155mm |
| Max video Card Length | Up to 370mm long video card |
| Power Supply | Not Included |
| Motherboard Compatibility | ATX、Micro ATX |
| Expansion | |
| External 5.25" Drive Bays: | 0 |
| Internal 2.5" Drive Bays | Up to 6 |
| Internal 3.5" Drive Bays | Up to 2 |
| Expansion slots | 7 |

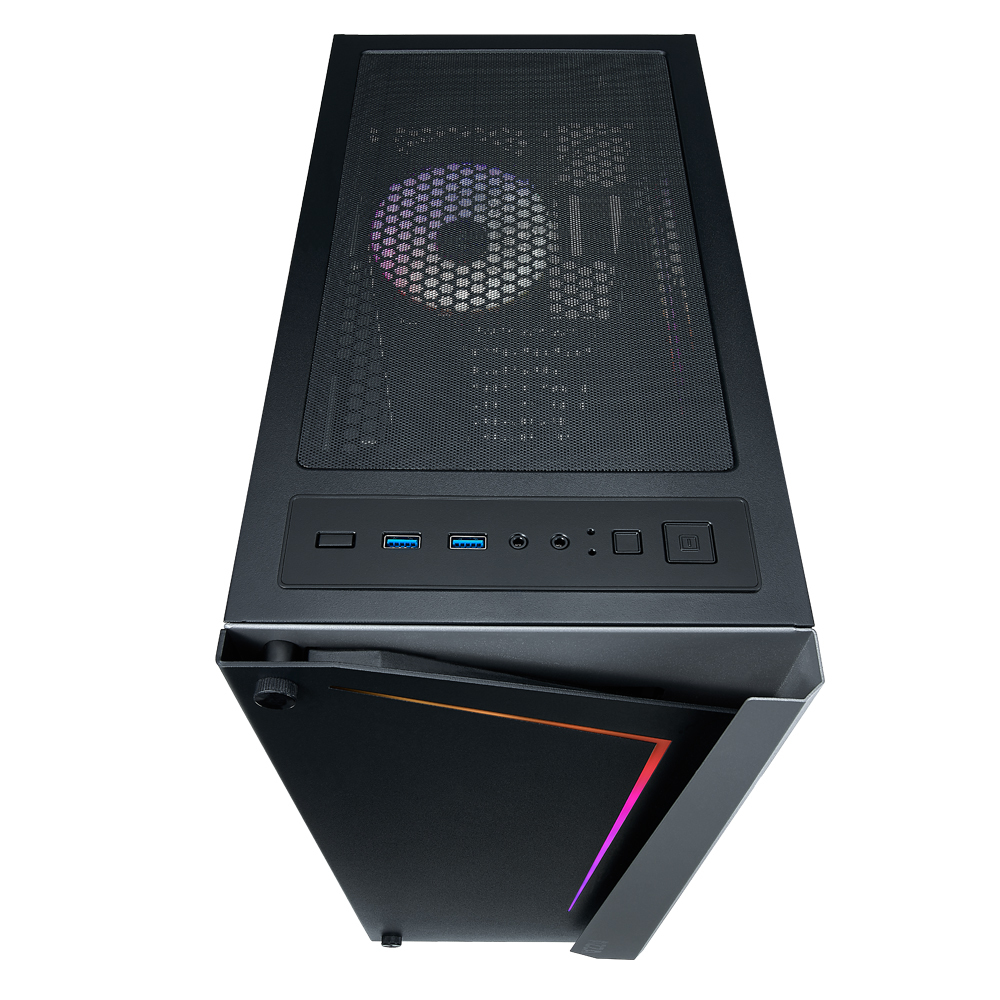

| Top Ports | Power button, reset button, HD Audio, USB 3.0 x 2 |
| Physical Specifications | |
| Case Dimension (HxWxD) | 480x205x420mm/18.9x8.1x16.5 inches |
| Weight | 7.9kg /17.4lbs |
| Features | |
| Tempered Glass Sides Window | High-quality tempered glass side window allows for clear visuals to inner components |
| Addressable RGB Light Effects | Addressable RGB light fan in the rear. All Addressable RGB light devices sync with the motherboard, allowing the motherboard software to directly control the lighting. |
| Available Fan Ports | 3x120mm or 2x140mm Fan ports in the front |
| 2x120mm or 2x140mm Fan ports on the top | |
| 1x120mm Fan port in the rear | |
| (1x120mm Hurricane II Addressable RGB Fan included for model | |
| CSAZ-430B-DF1 / CSAZ-430W-DF1) | |
| (1x120mm Addressable RGB Fan included for model | |
| CSAZ-430B-DF2 / CSAZ-430W-DF2) | |
| Water Cooling | Supports radiators up to 240mm in the Front |
| Supports radiators up to 240mm on the Top | |
| Dust filters | Removable (magnetic) dustproof net on the top and front, iron net on bottom of chassis. |
| Power Supply Support | Bottom mounted ATX Power Supply |
Tofanger 2019/12/26
Azza PC Case Review
GTX 2019/09/28
Azza PC Case Review
XFastest 2019/12/30
Azza PC Case Review
tech4gamers 2020/04/07
Azza PC Case Review
-

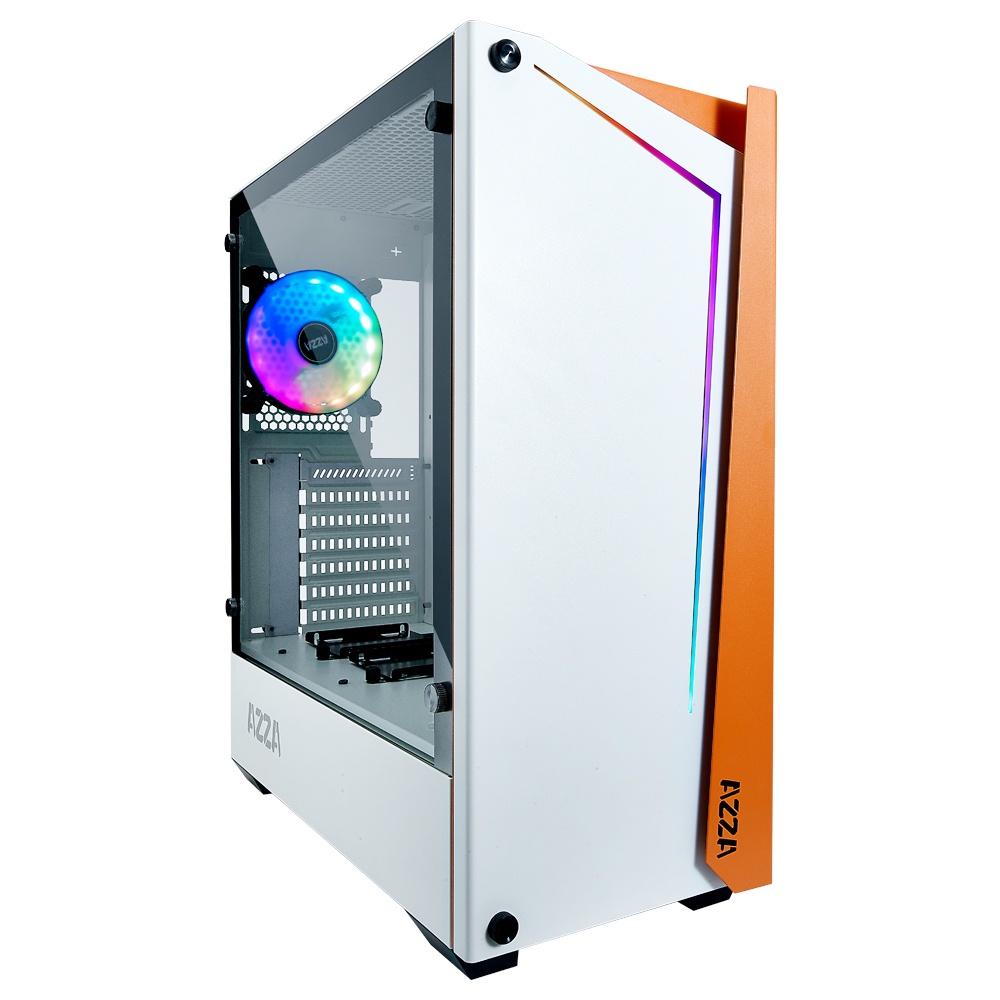

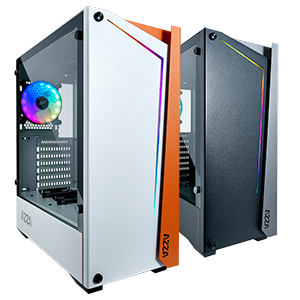

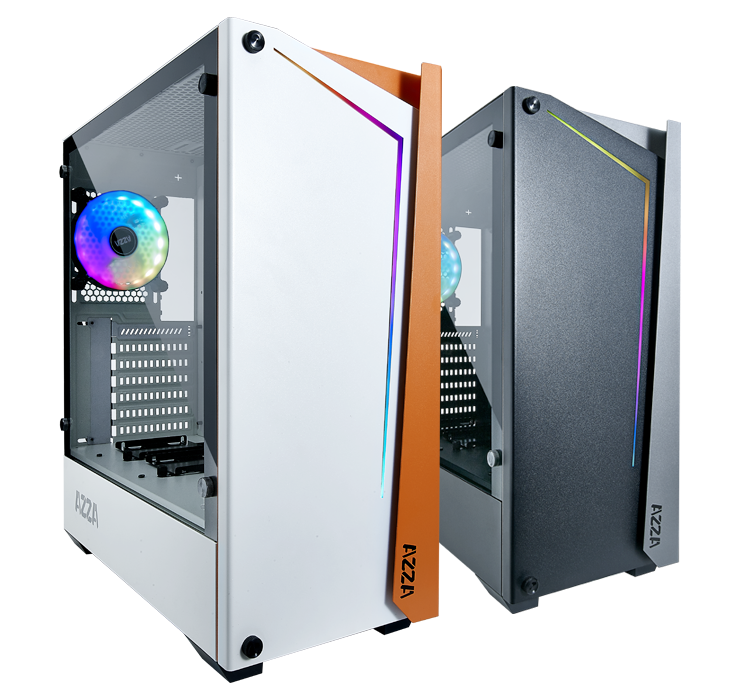

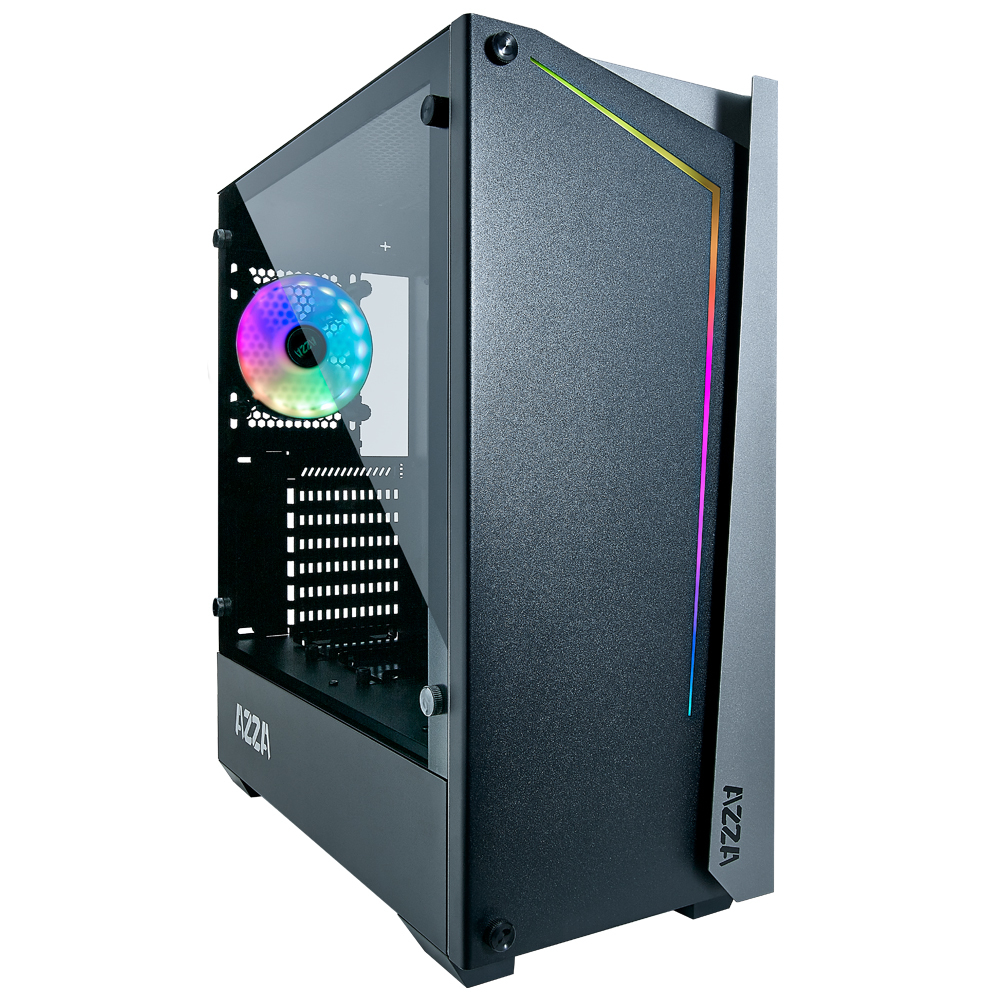

With its bright orange accent befitting of its name, the Apollo 430 mid-tower case is sure to become the spotlight of any computer setup.
This case offers everything you need for a variety of builds, supporting ATX and micro ATX motherboards.
It can support some of the longest video cards on the market, up to 370mm long, so it is able to accommodate almost any build you throw at it.

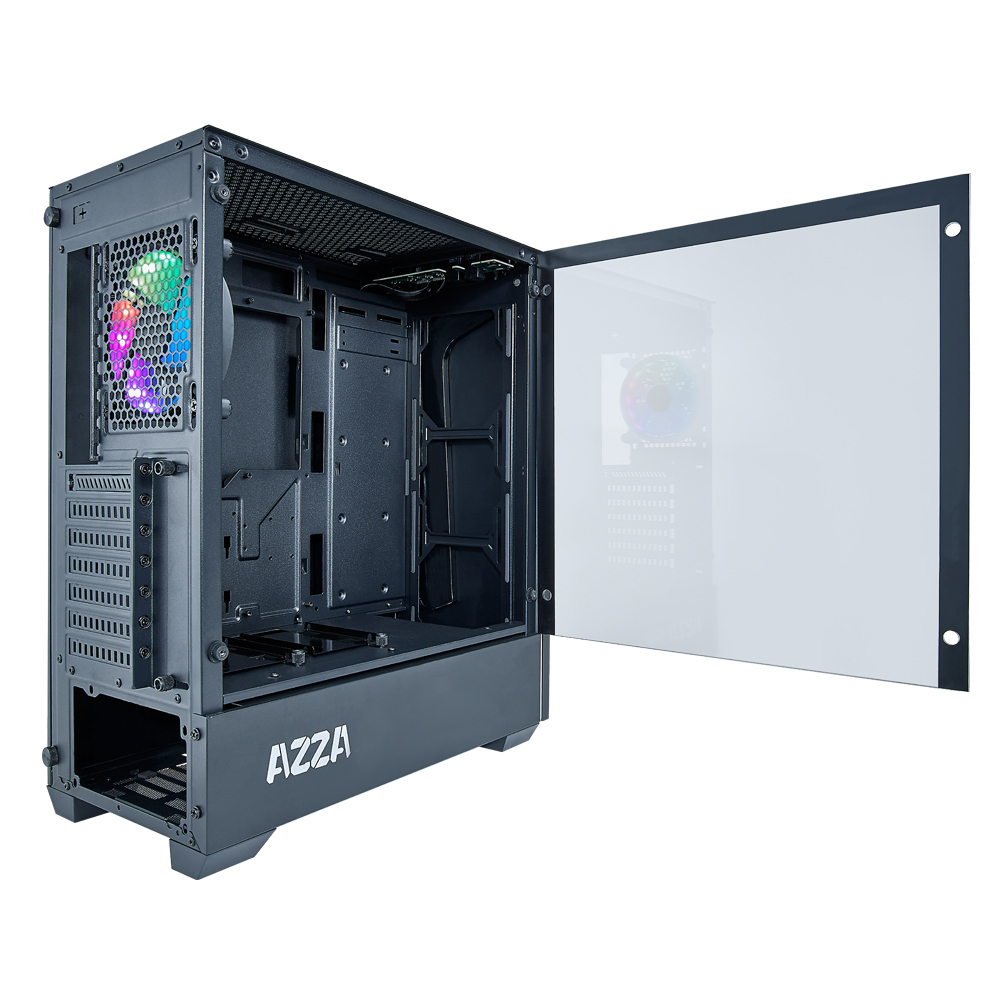

With a high-quality tempered glass side panel, you can show off your aesthetic inner components. With water cooling support up to 240mm on the front and 240mm on the top, you can be sure that this case will fit all of your cooling needs.

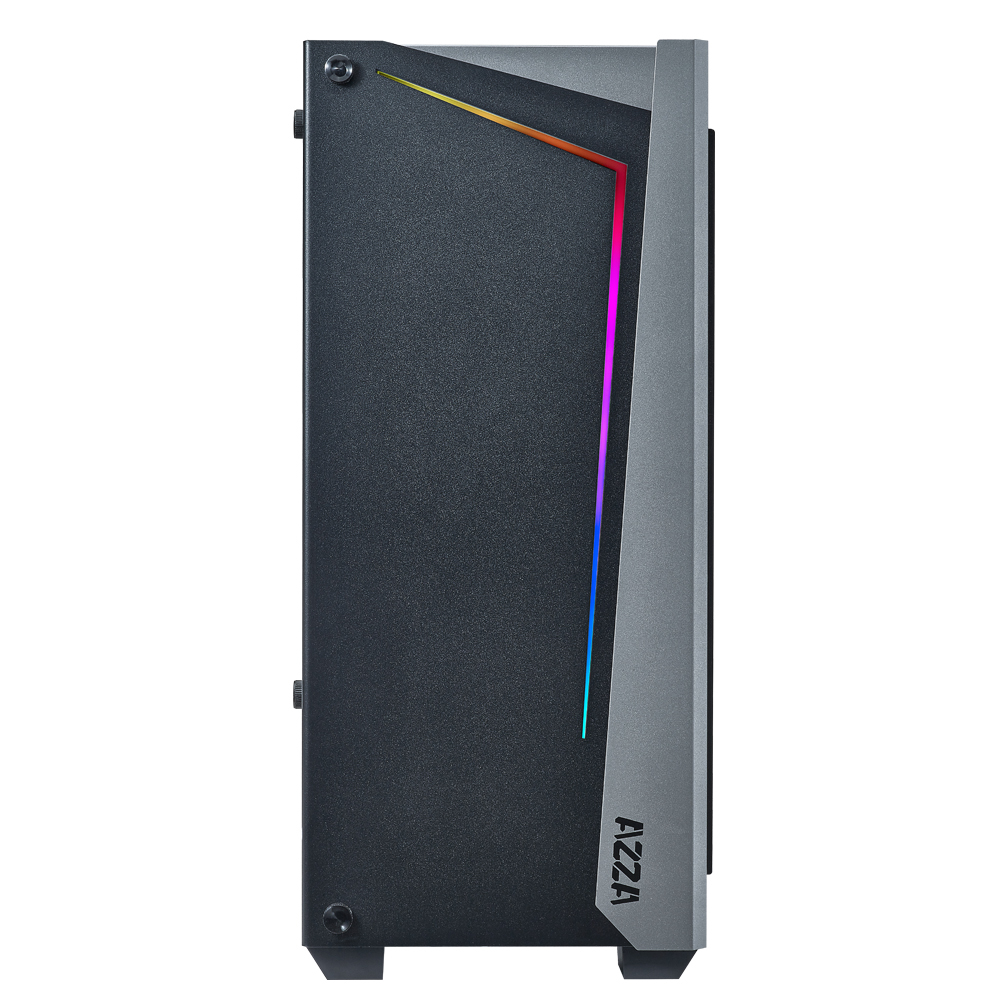

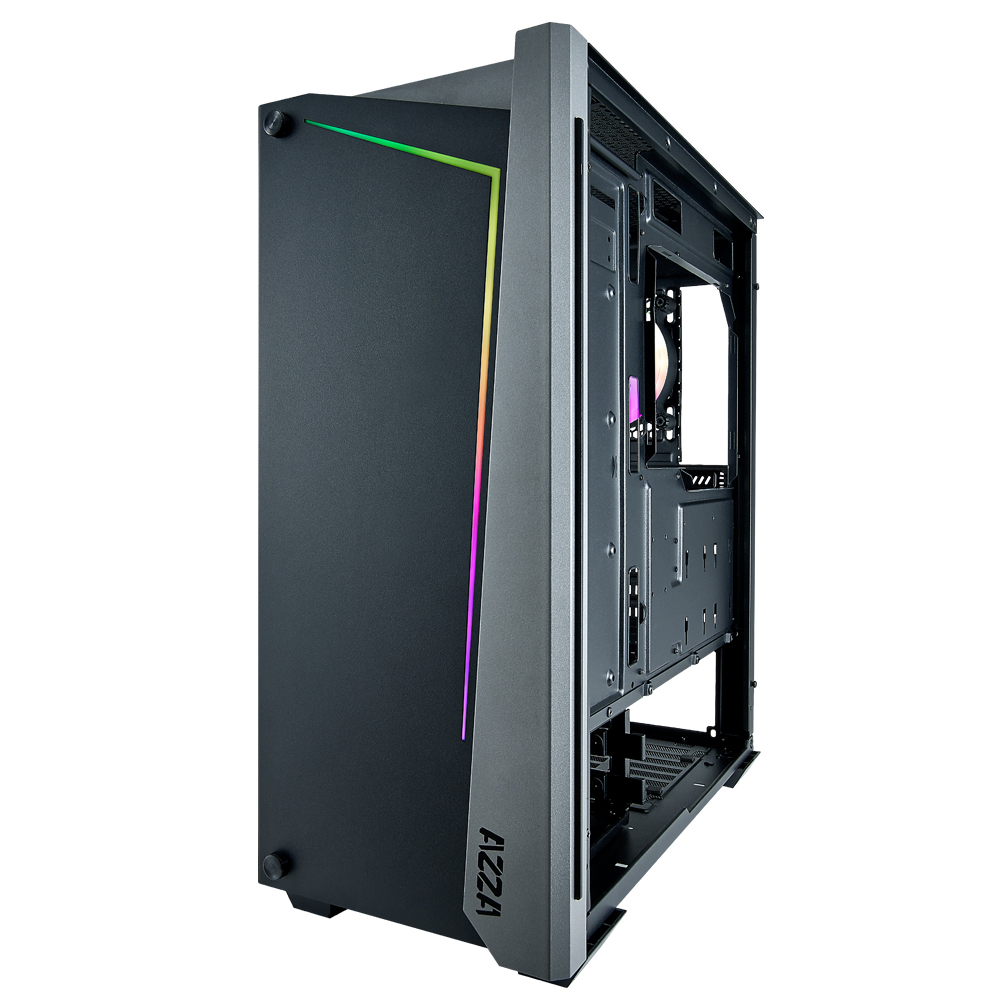

The front panel sports a stylish RGB strip light in a unique pattern, allowing you to customize the lighting to your heart’s desire.
-

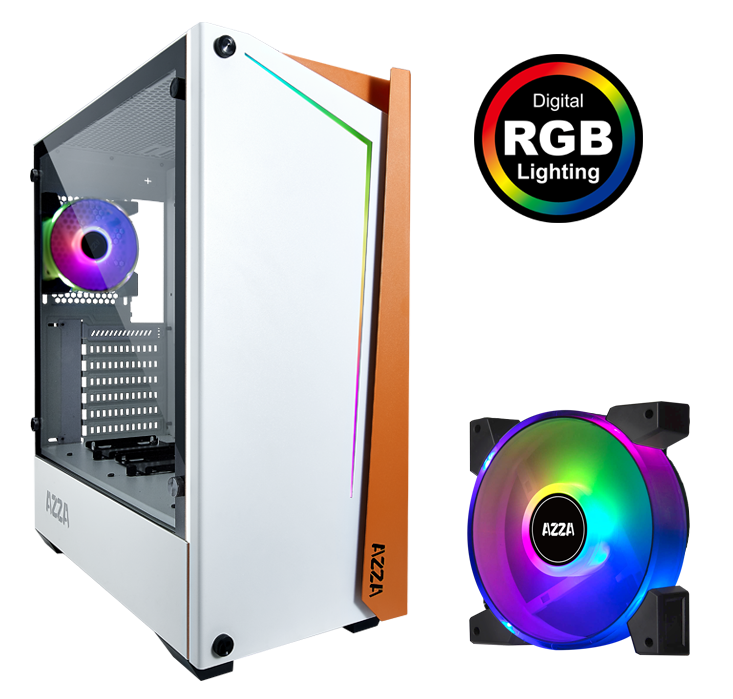

Option1:CSAZ-430B-DF1/CSAZ-430W-DF1
( APOLLO 430 chassis with 120mm Digital RGB fan)
Digital RGB fan:
Connect with compatible digital RGB devices or compatible digital RGB motherboard.
-

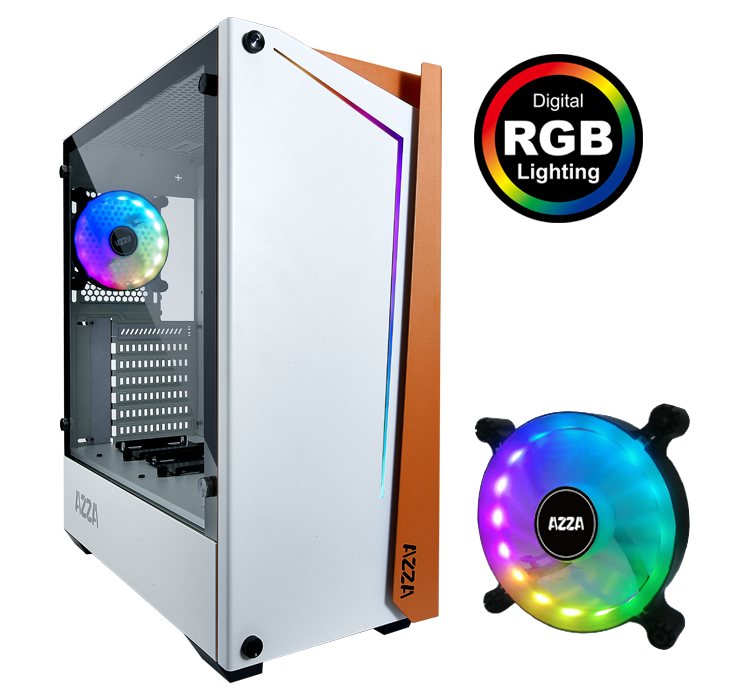

Option2: CSAZ-430B-DF2/CSAZ-430W-DF2
( APOLLO 430 chassis chassis with 120mm Digital RGB fan)
Digital RGB fan:
Connect with compatible digital RGB devices or compatible digital RGB motherboard.
-

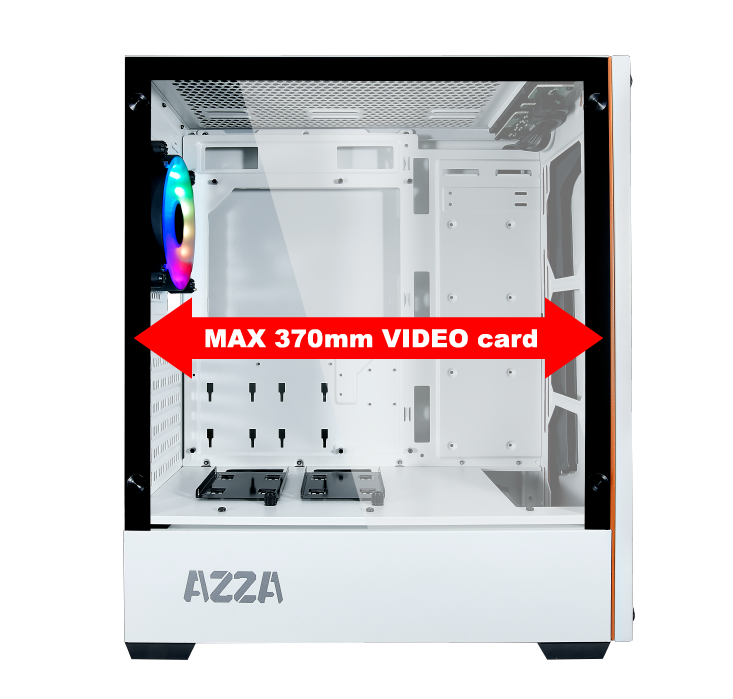

Supports VIDEO cards
up to 370mm in length.
-

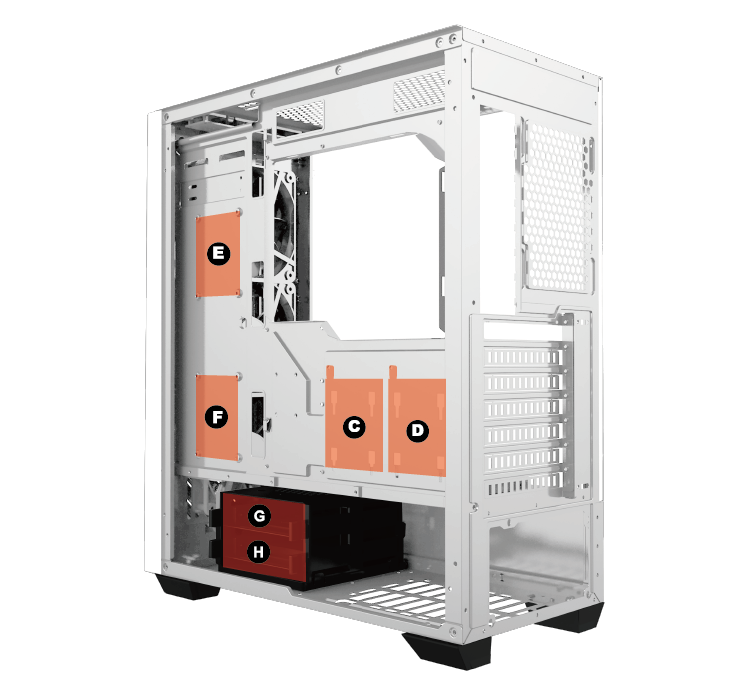

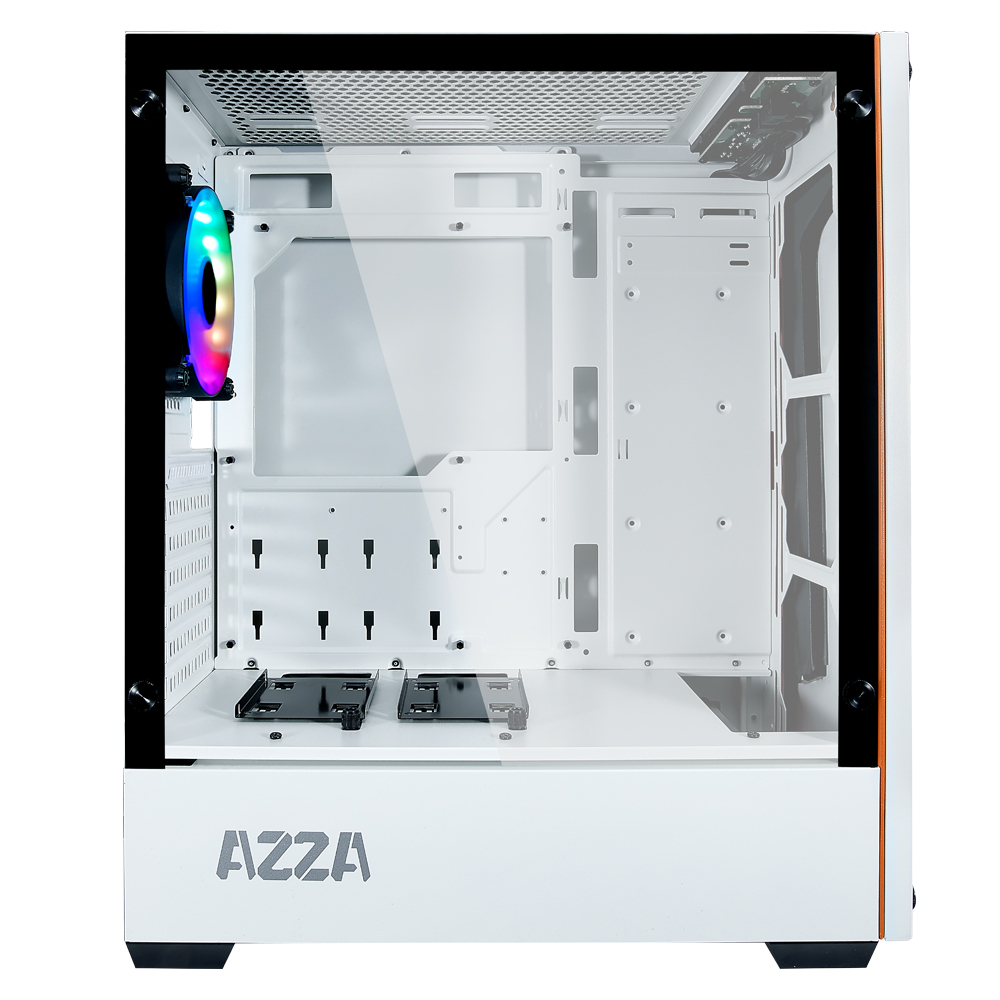

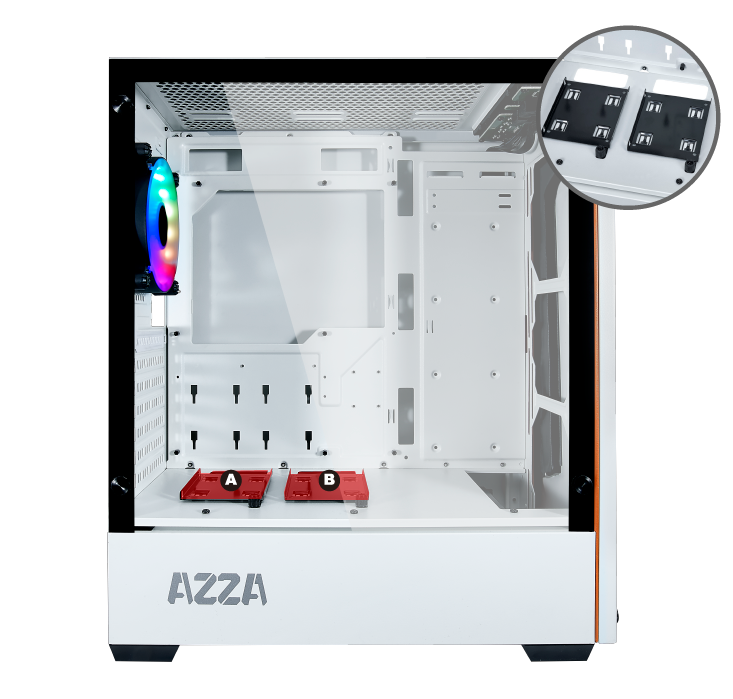

Two brackets support 2.5" devices.
( A、B、C、D)
-
Two mounting holes support 2.5" devices.( E、F)
Two multifunctional trays support 3.5" HDD or 2.5" SSD.( G、H)
-
Supports up to 3 x 120mm or
2 x 140mm fan up to 240mm
water cooling radiator in height.
-

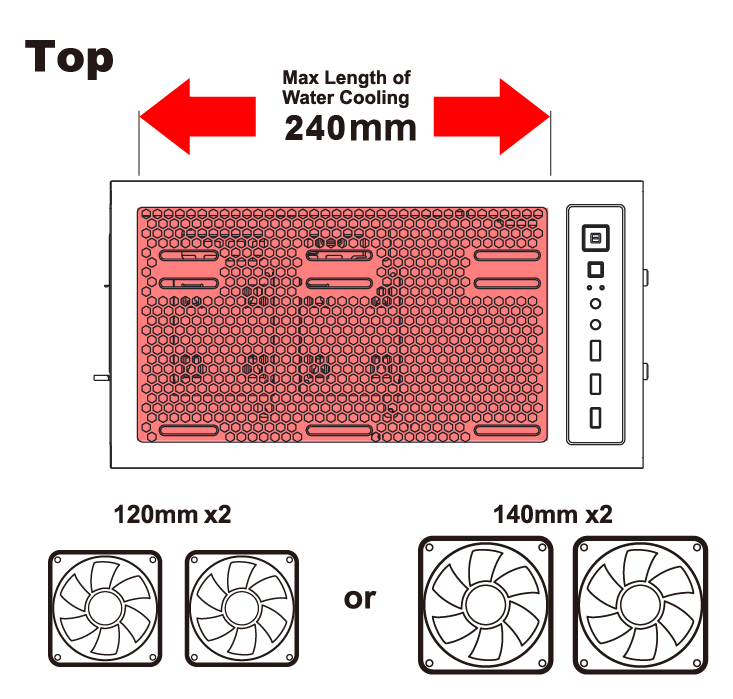

Supports up to 2 x 120mm or
2 x 140mm fan up to 240mm
water cooling radiator in length.
