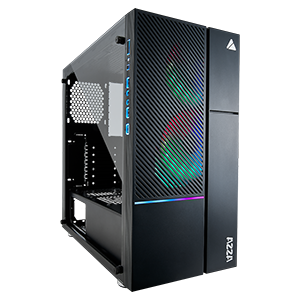

IRIS 330
PRODUCT SPECIFICATIONS
DIMENSIONS：447mm x 216mm x 440mm (H x W x D)
COLOR：Black
PRODUCT INFORMATION
‧Supports up to 380mm long video card.
‧High-quality tempered glass side panel allows for clear visuals to inner components.
‧Available Fan Ports:
3x120mm Fan ports in the front
(2x120mm Digital RGB Fan included)
2x120mm Fan ports on the top
1x120mm Fan port in the rear
2x120mm Fan ports on the top of PSU chamber
‧Supports radiators up to 240/360mm in the Front
| Model | |
|---|---|
| Model Name | IRIS 330 |
| Model Number | CSAZ-330 |
| Specifications | |
| Type | ATX Mid Tower |
| Color | Black/Black(interior) |
| Side Panel Window | Left Side panel: Tempered Glass with rubber mounts |
| Max CPU Cooler Height | Up to 155mm |
| Max video Card Length | Up to 380mm long video card |
| Power Supply | Not Included |
| Motherboard Compatibility | ATX |
| Expansion | |
| External 5.25" Drive Bays: | 0 |
| Internal 2.5" Drive Bays | Up to 3 |
| Internal 3.5" Drive Bays | Up to 2 |
| Expansion slots | 7 |
| I/O Ports | Power button, reset button, HD Audio, USB 3.0x1, USB 2.0x2 |
| Physical Specifications | |
| Case Dimension (HxWxD) | 447x216x440mm/17.6x8.5x17.3 inches |
| Weight | 5.49kg /12.1lbs |
| Features | |
| Tempered Glass Sides Window | High-quality tempered glass side window allows for clear visuals to inner components |

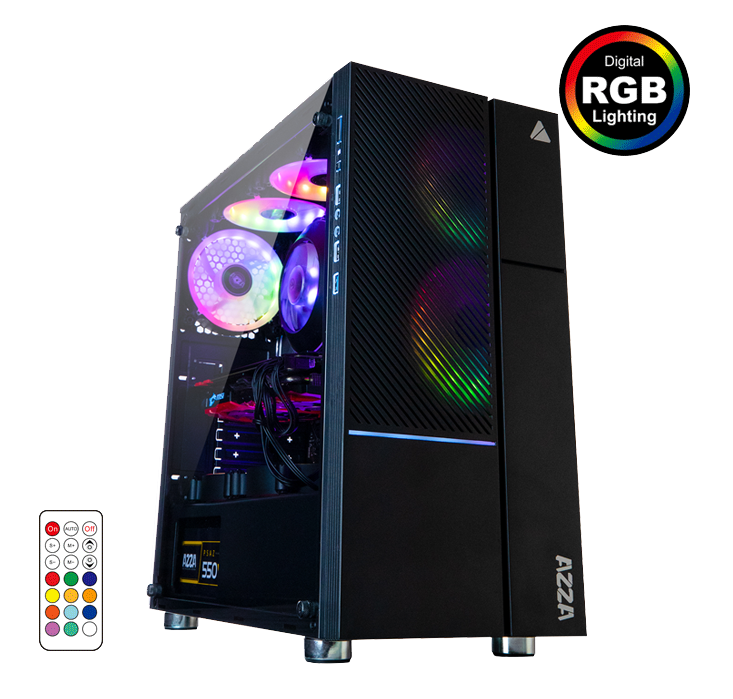

| Addressable RGB Light Effects | Addressable RGB light strips on the front panel and side port location, all controlled by RF Remote (2020 New version) |
| ※Without RF REMOTE before 2020 version, controlled by motherboard. | |
| Available Fan Ports | 3x120mm Fan ports in the front |
| (2x120mm Digital RGB Fan included) | |
| 2x120mm Fan ports on the top | |
| 1x120mm Fan port in the rear | |
| 2x120mm Fan ports on the top of PSU chamber | |
| Water Cooling | Supports radiators up to 240/360mm in the Front |

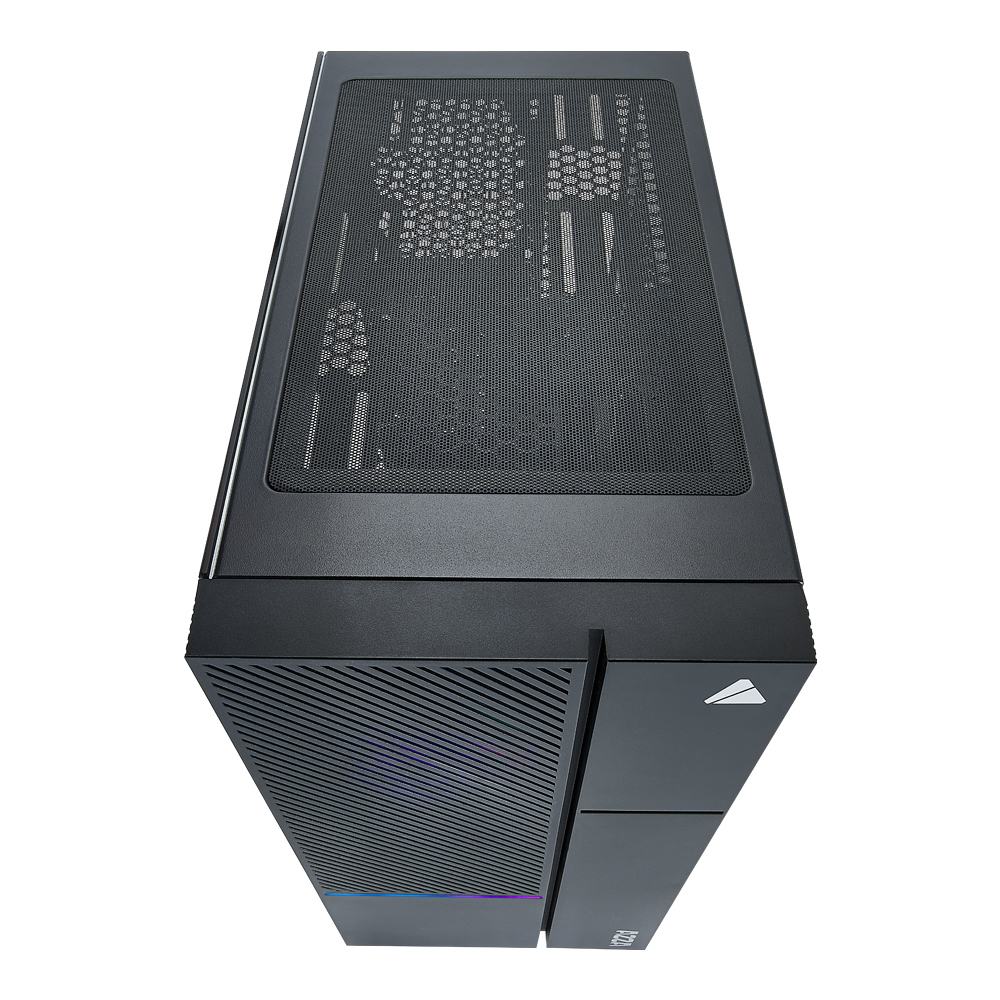

| Dust filters | Removable (magnetic) dustproof net on the top, iron net on bottom of chassis. |
| Power Supply Support | Bottom mounted ATX Power Supply |
-

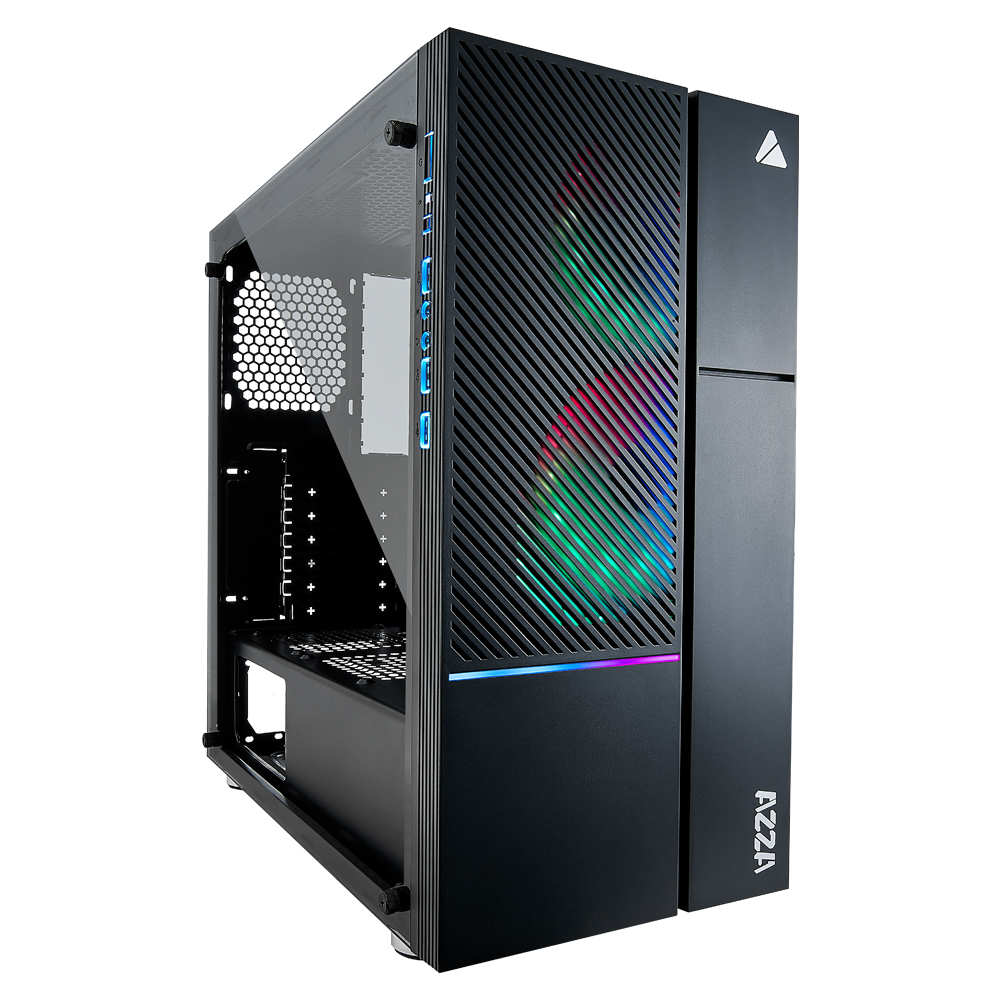

The Iris 330 is a beautiful case with a tempered glass side panel. It has all the standard features a modern midtower case can offer, as well as some extra bells and whistles.

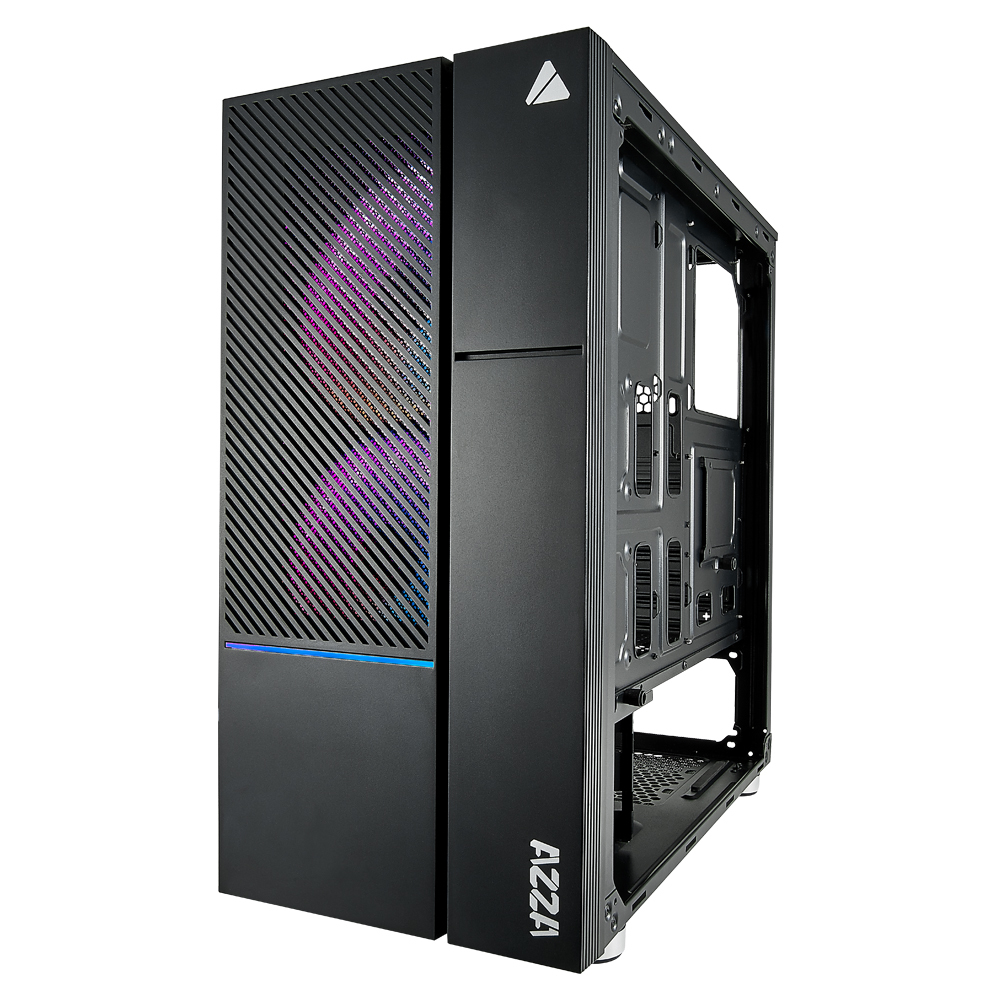

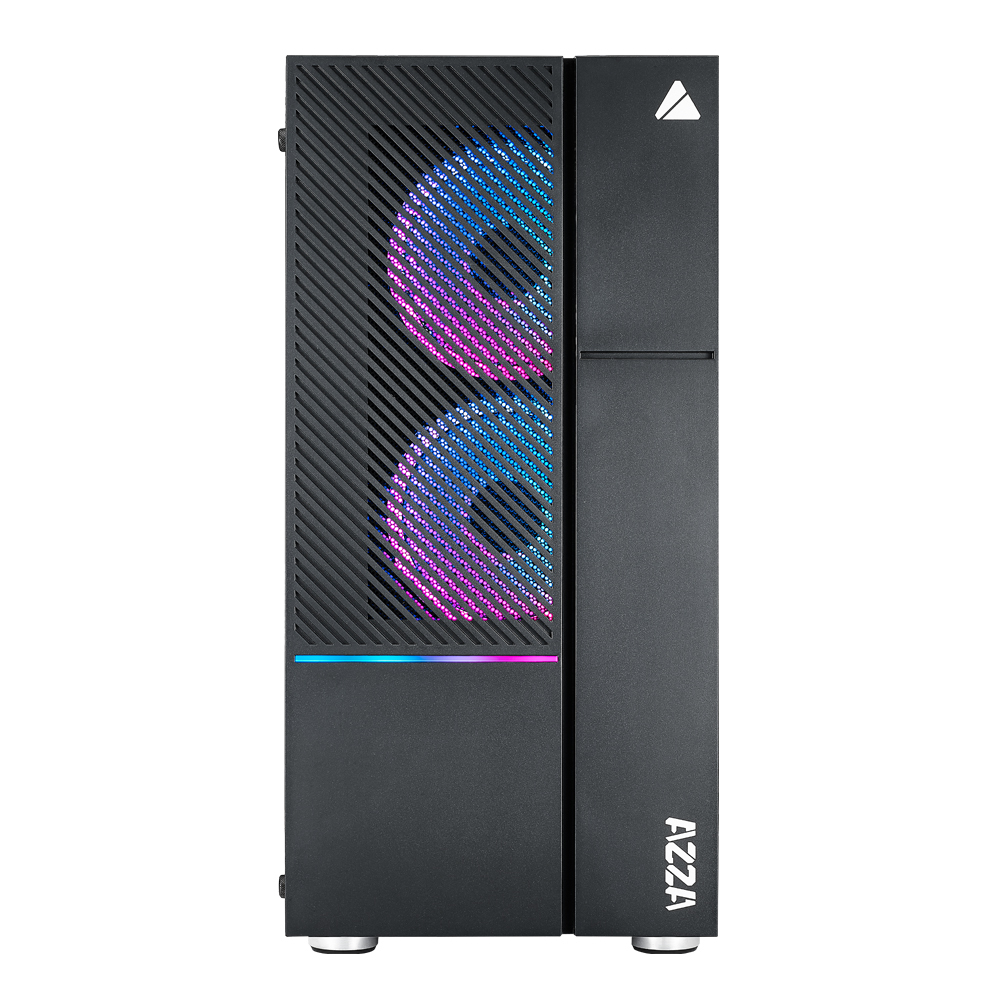

The front panel sports an addressable RGB accent light, and the IO ports also have some RGB lighting, all controllable through a compatible motherboard.
The case supports video cards up to 380mm long, supporting some of the longest cards on the market. A 120mm digital RGB fan is also included, for your cooling needs.
The power supply is encased inside its own chamber, prevent its heat from affecting other components.

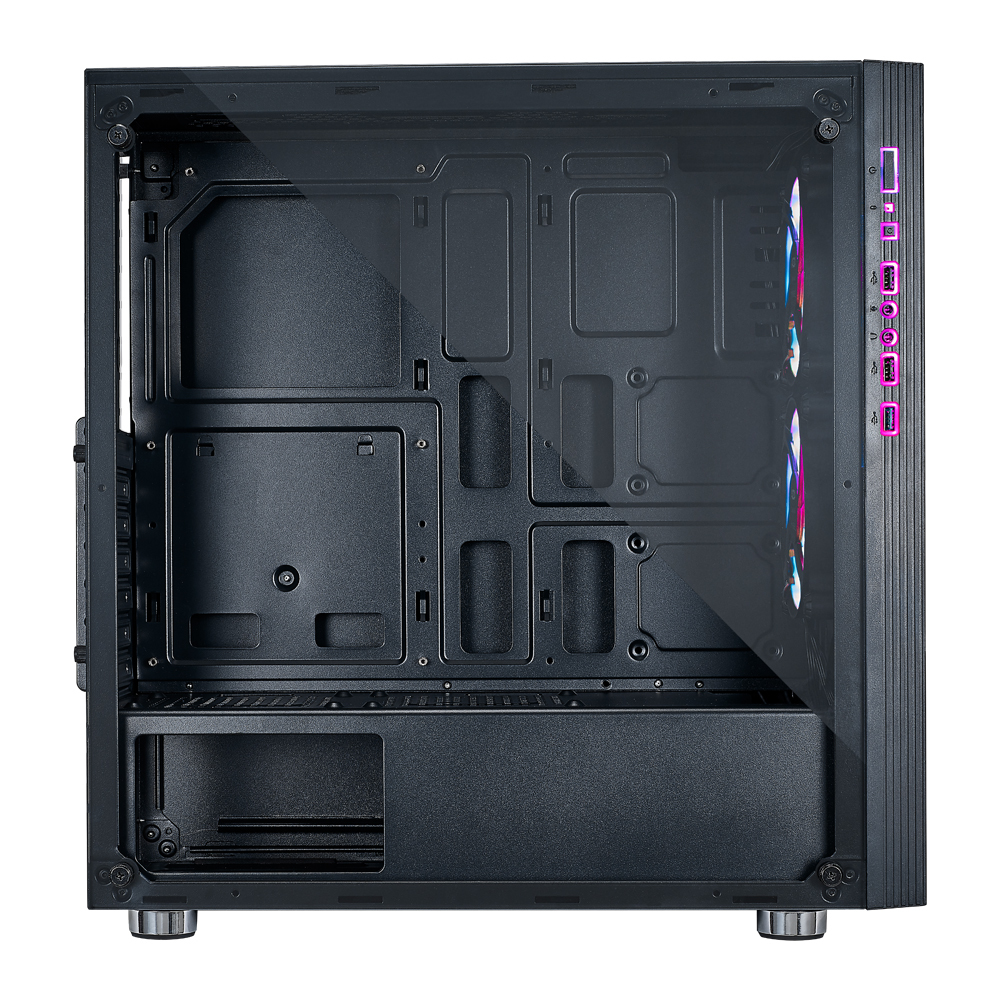

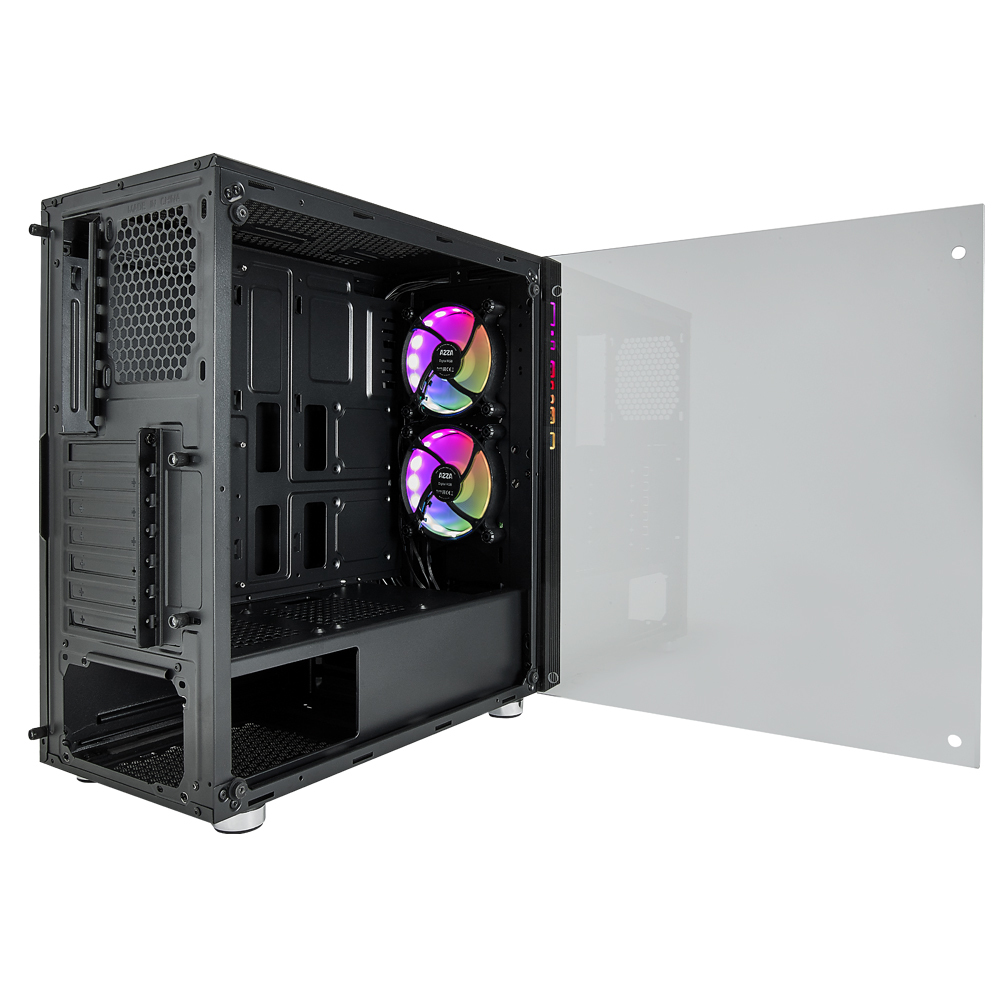

The high quality and durable tempered glass side panel gives you a clear view into the inside of the case, allowing you to show off your build.
The Iris 330 case is perfect for anyone who wants a functional and aesthetic case, while also wanting to dabble in some RGB without going overboard.
-

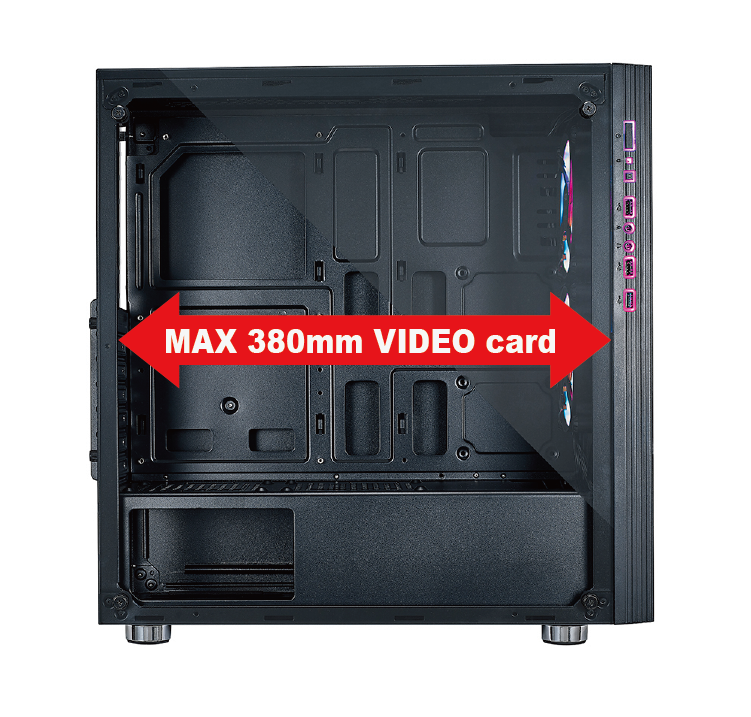

Supports VIDEO cards
up to 380mm in length.
-
▪One bracket support 2.5" device.(E)
▪Two mounting holes support 2.5" devices.
( A、B)
▪Support mounting 3.5" HDD with slide rail screws.
( C、D)
-

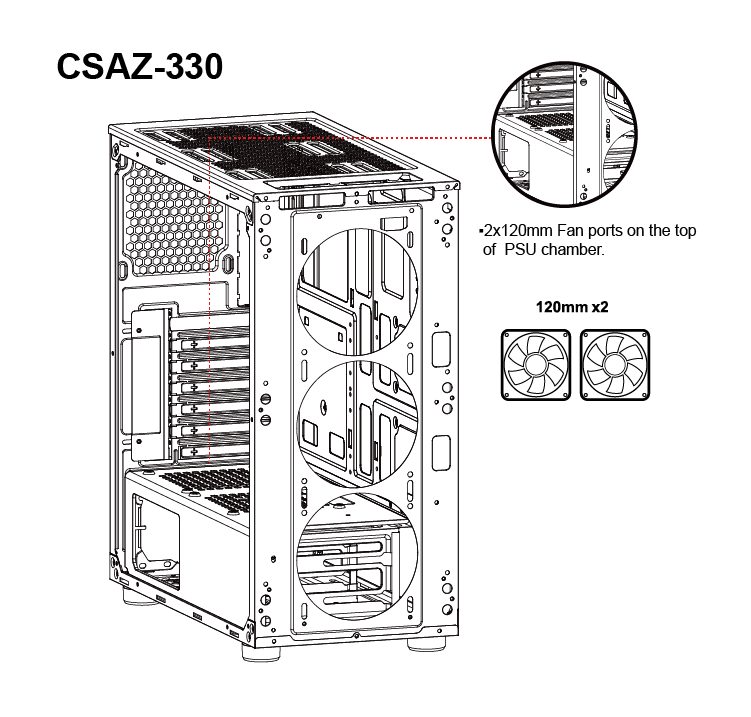

▪2x120mm Fan ports on the top of PSU chamber.
-
▪Supports up to 3 x 120mm fan
▪Supports up to 360mm water cooling radiator in height.
-

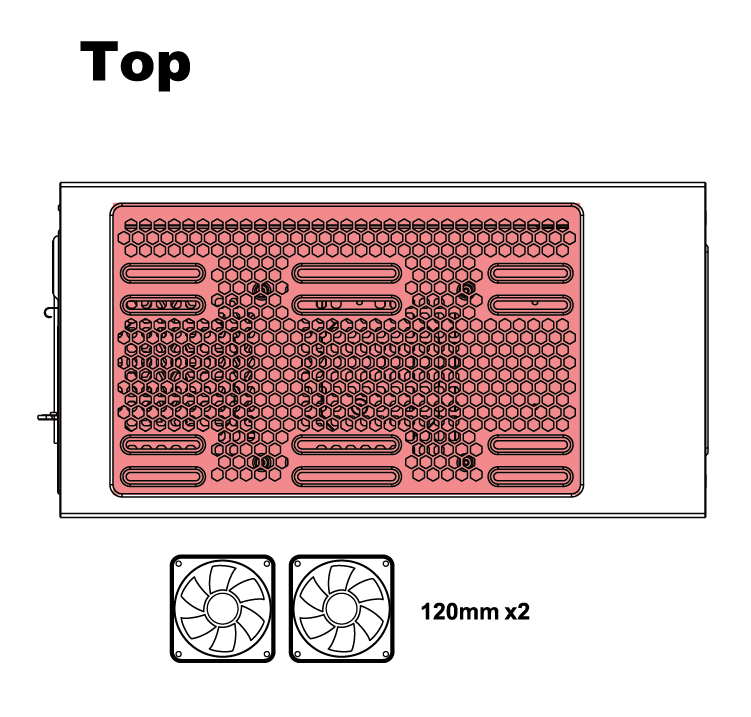

▪Supports up to 2 x 120mm fan
-
▪Move HDD cage to install the fan on the front panel.
▪Move HDD cage to install the Radiator and fan on the front panel.
