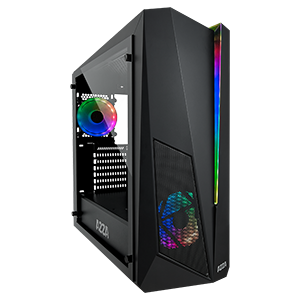

THOR 320 DF
PRODUCT SPECIFICATIONS
DIMENSIONS：538mm x205mm x 465mm (H x W x D)
COLOR：Black

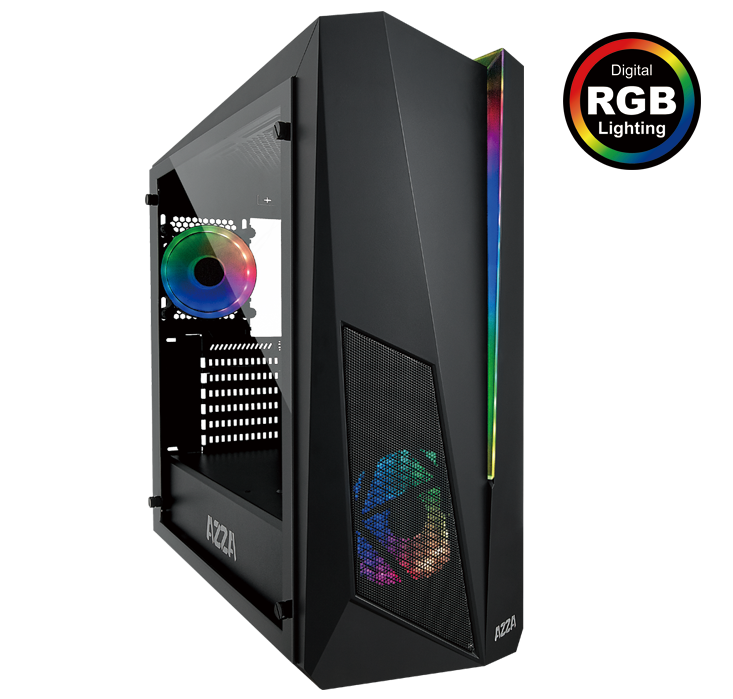

Digital RGB light effects：
‧2x AZZA Digital RGB fan

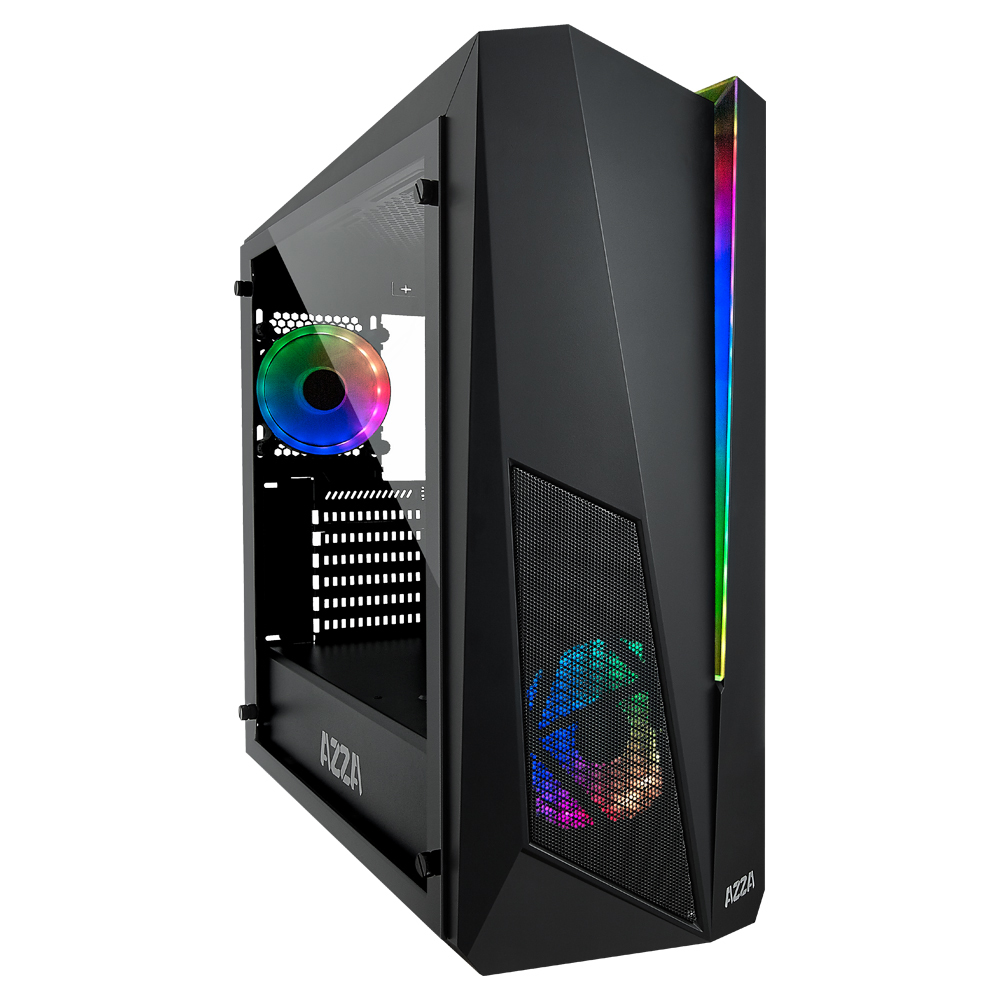

‧Digital RGB LED front panel、Digital RGB LED top panel
‧All Digital RGB light effects controlled by Digital RGB RF Remote
PRODUCT INFORMATION
‧Supports up to 380mm Video cards.

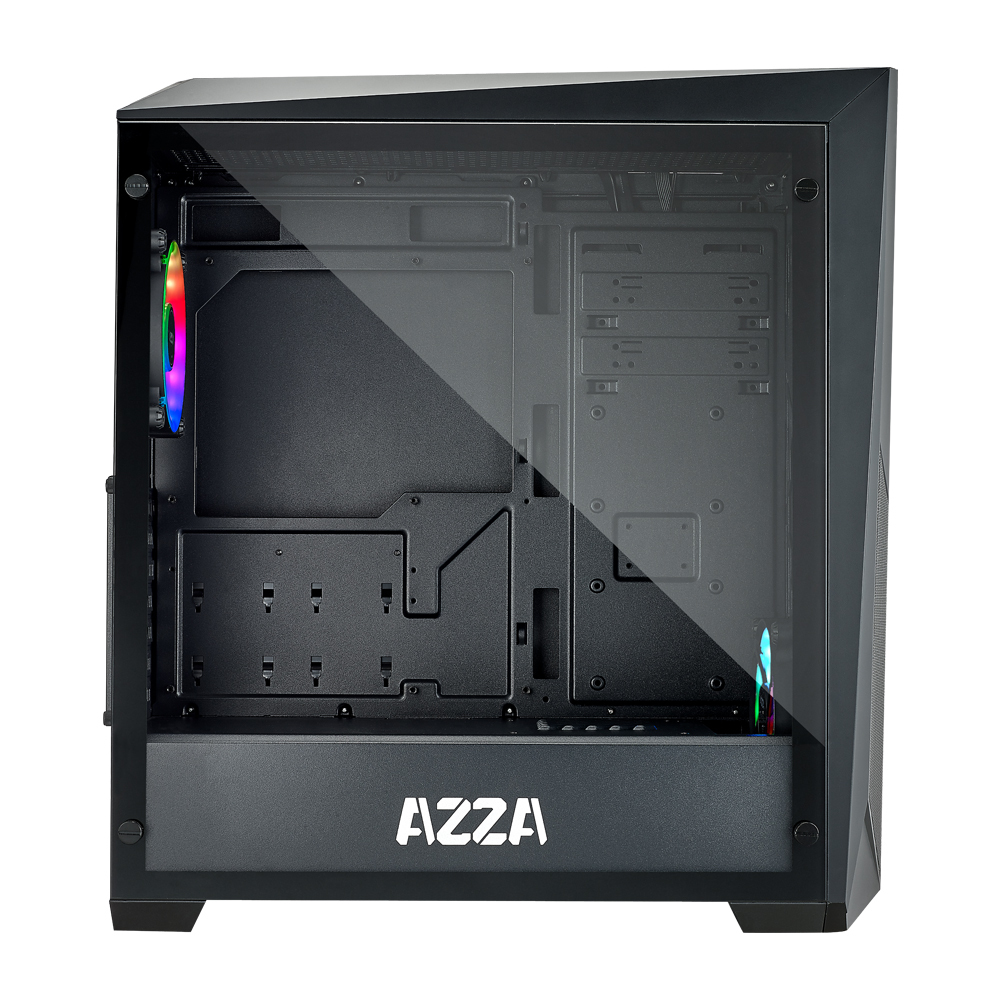

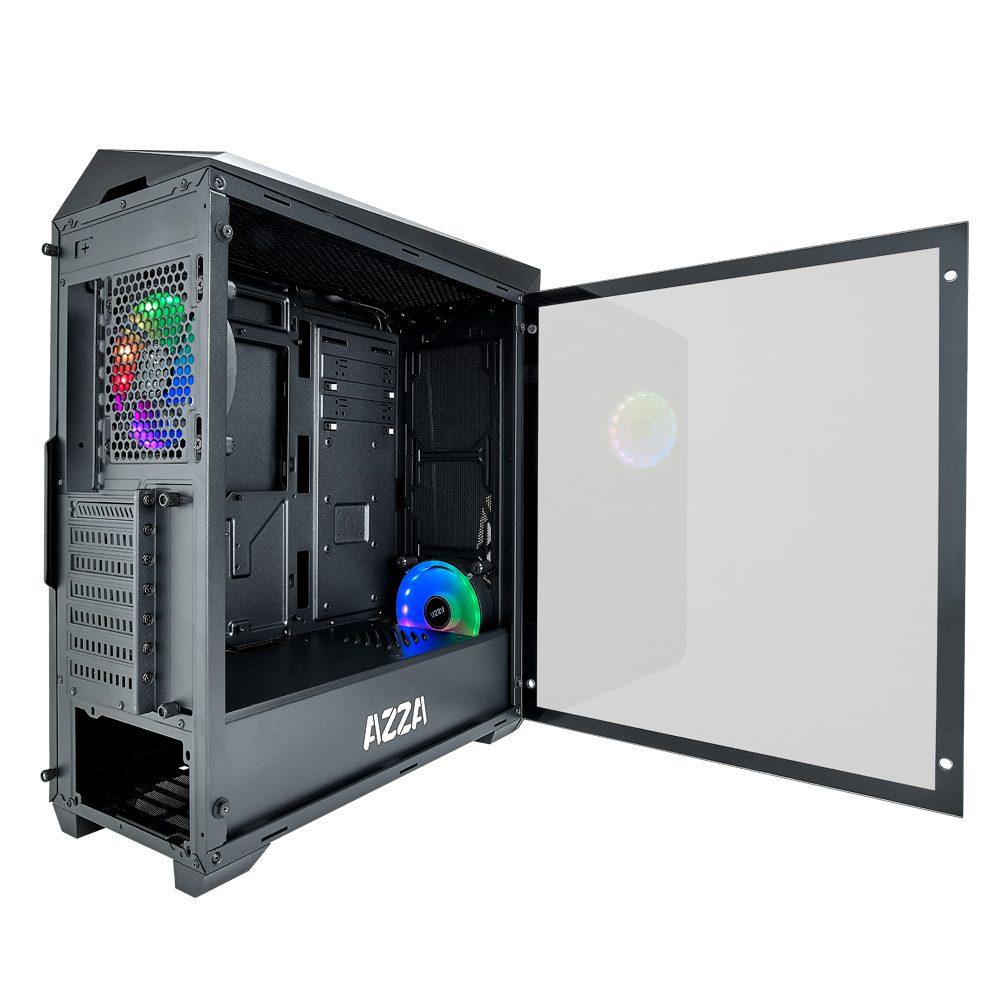

‧High-quality tempered glass side panel allows for clear visuals to inner components.
Available Fan Ports:
3x120mm or 2x140mm fan ports on the top
3x120mm or 2x140mm fan ports in the front
1x120mm Digital RGB fan in the front (installed)
1x120mm Digital RGB fan in the rear (installed)
‧Supports up to 360mm water cooling radiator.
| Model | |
|---|---|
| Model Name | Thor |
| Model Number | CSAZ-320DF |
| Specifications | |
| Type | ATX Mid-Tower |
| Color | Black (exterior)/Black (interior) |
| Side Panel | Tempered Glass With Rubber Mounts |
| Max CPU Cooler Height | Up to 155mm |
| Power Supply | Not Included |
| Motherboard Compatibility | ATX, Micro ATX |
| Expansion | |
| External 5.25" Drive Bays: | 0 |
| Internal 2.5" Drive Bays | Up to 6 (2 with metal tray) |
| Internal 3.5" Drive Bays | Up to 2 |
| Expansion slots | 7 |
| Cooling System | |
| Fans Installed | Front 1x120mm AZZA Digital RGB fan, Rear 1x120mm AZZA Digital RGB fan |
| Physical Specifications | |
| Dimensions(HxWxD) | 538x205x465mm / 21.2x8.1x18.3 inch |
| Weight | 8.01 kg / 17.7 lb |
| Features | |
| Digital RGB Light Effects | Digital RGB Light on Front and Top panels, 2x120mm Digital RGB fans All Digital RGB light devices controlled by Digital RGB RF Remote |
| Max VGA Card Length | Supports up to 380mm long VGA card |
| Tempered Glass Side Window | High-quality tempered glass side window allows for clear visuals to inner components |
| Available Fan Ports | 3x120mm or 2x140mm ports on the Top |
| 3x120mm or 2x140mm ports in the front | |
| (1x120mm AZZA Digital RGB Fan included) | |
| 1x120mm Fan port in the rear | |
| (1x120mm AZZA Digital RGB Fan included) | |
| Dust filters | Dustproof PVC Net on the front, top and bottom of Chassis |
| Water Cooling | Supports radiator up 360mm on top/280mm in front |
| Isolated Chamber | Power supply is housed inside its own isolated chamber, preventing its heat from affecting other components |
| Easy Installation Cooler | A pre-cut hole for easy installation of CPU Cooler, eliminating the need to remove the motherboard |
| Carton Size (HxWxD) | 537x272x605mm |
-

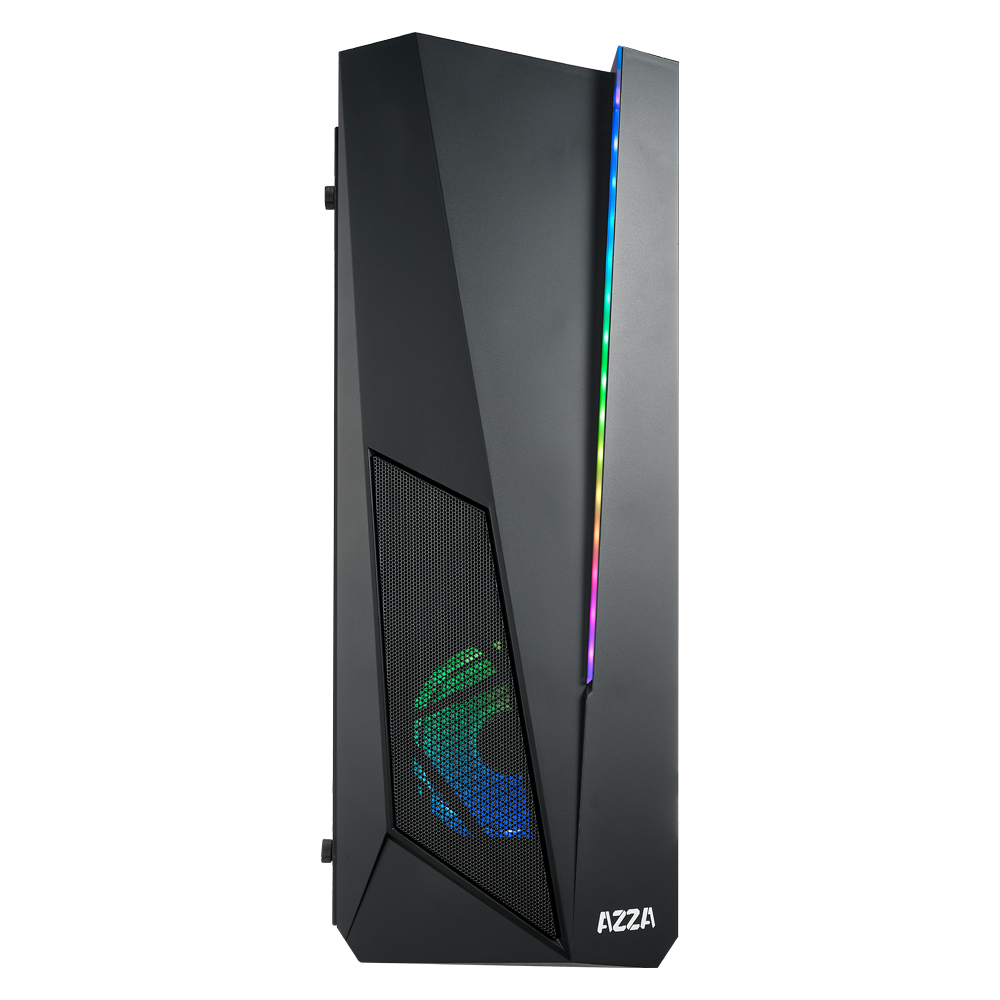

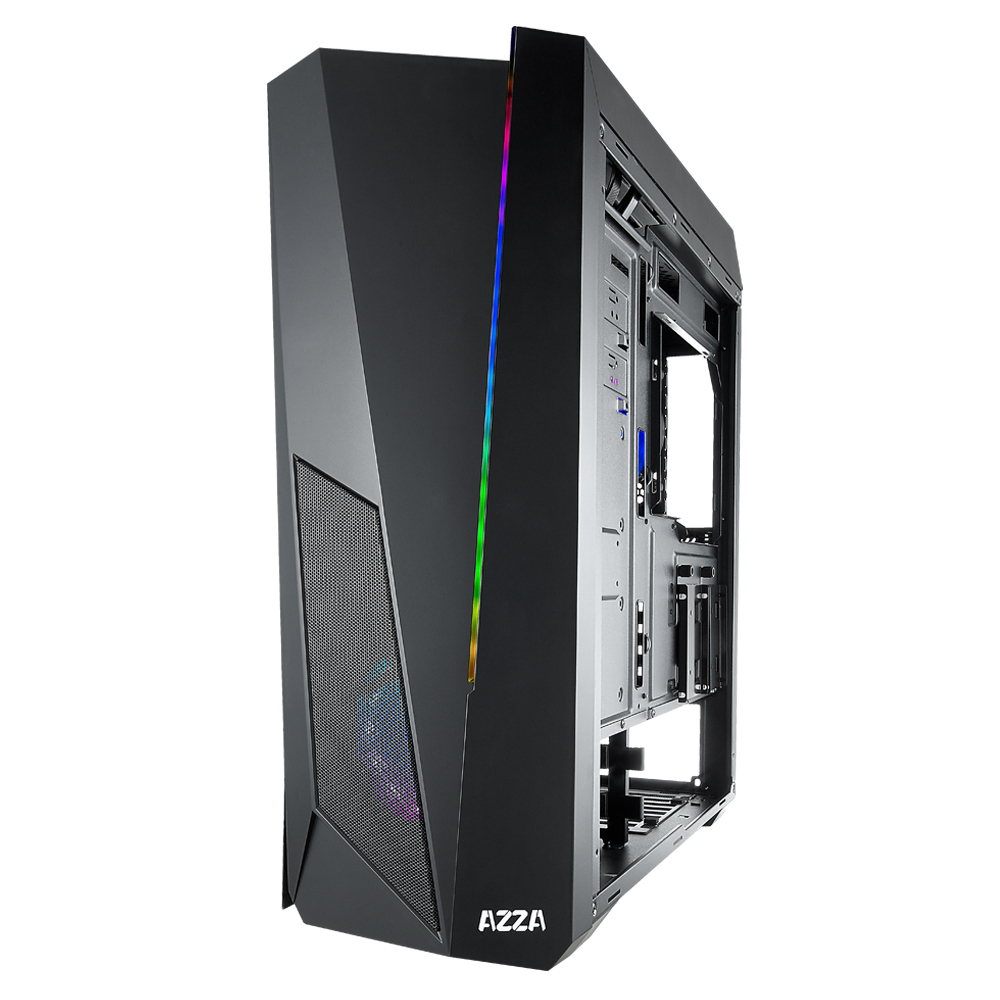

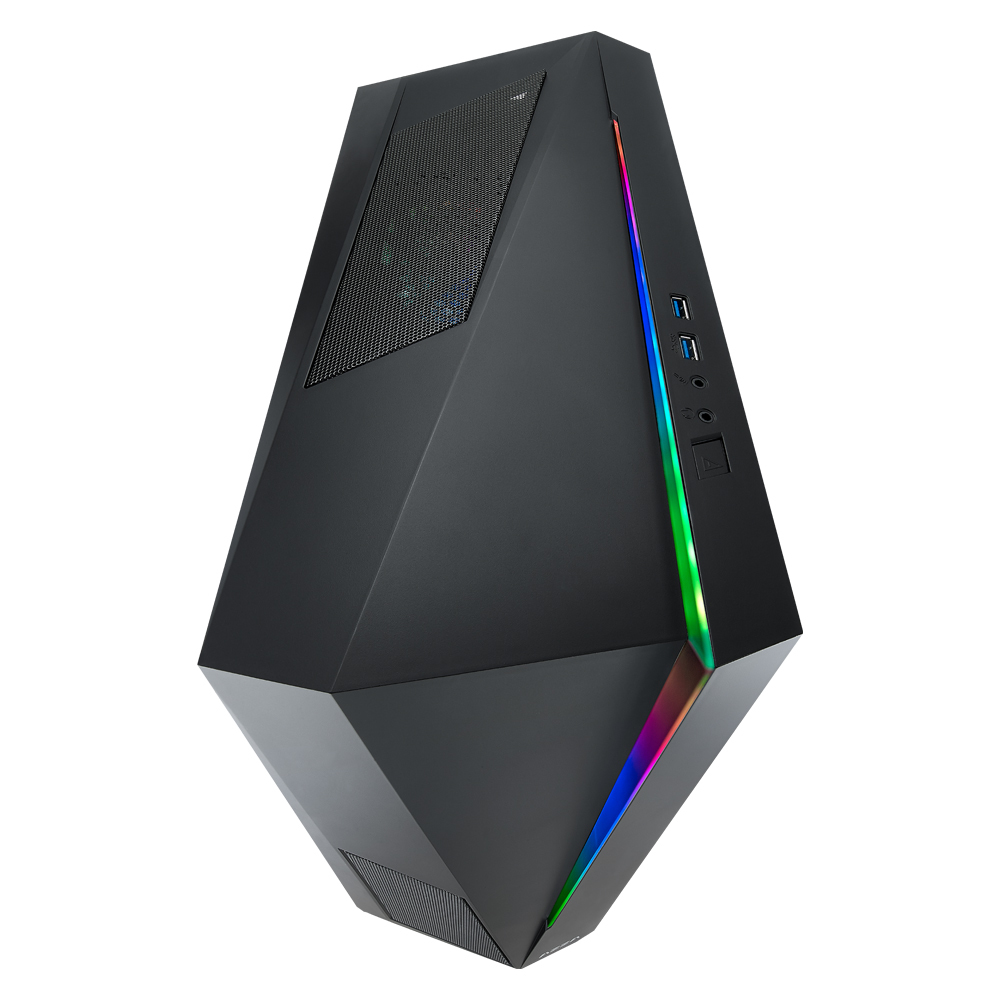

The Thor 320DF is the hottest new case in our lineup. With a sleek and sturdy tempered glass panel, the case allows for easy viewing of the inner components.
For those Digital RGB fanatics, the Thor 320DF includes two of our AZZA Digital RGB fans, and Digital RGB strip on the front panel and top panel, and AZZA logo with silk printing on the power supply chamber, all fully customizable, allowing you to make this case truly yours. All Digital RGB light devices are controlled by the Digital RGB RF Remote.

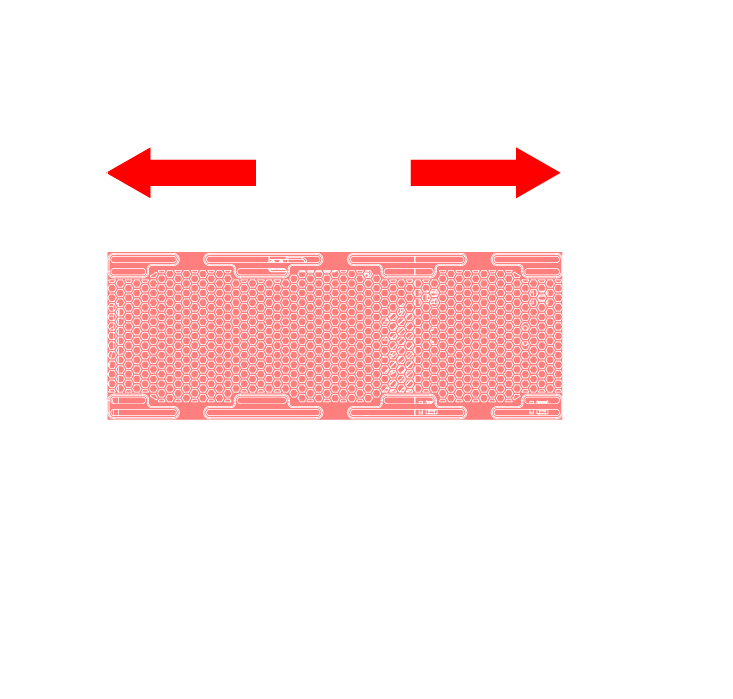

The Thor 320DF supports a 360mm water cooling radiator on the top, as well as a 280mm one on the front. Removable (magnetic) dustproof nets are located on the front and top panel, with an iron net on the bottom of the chassis.
The Thor 320DF supports the longest video cards in the market, up to 380mm long. The power supply is housed inside its own isolated chamber, preventing the residual heat from the power supply from affecting the other components.
-
Supports Video cards
up to 380mm in length.
-

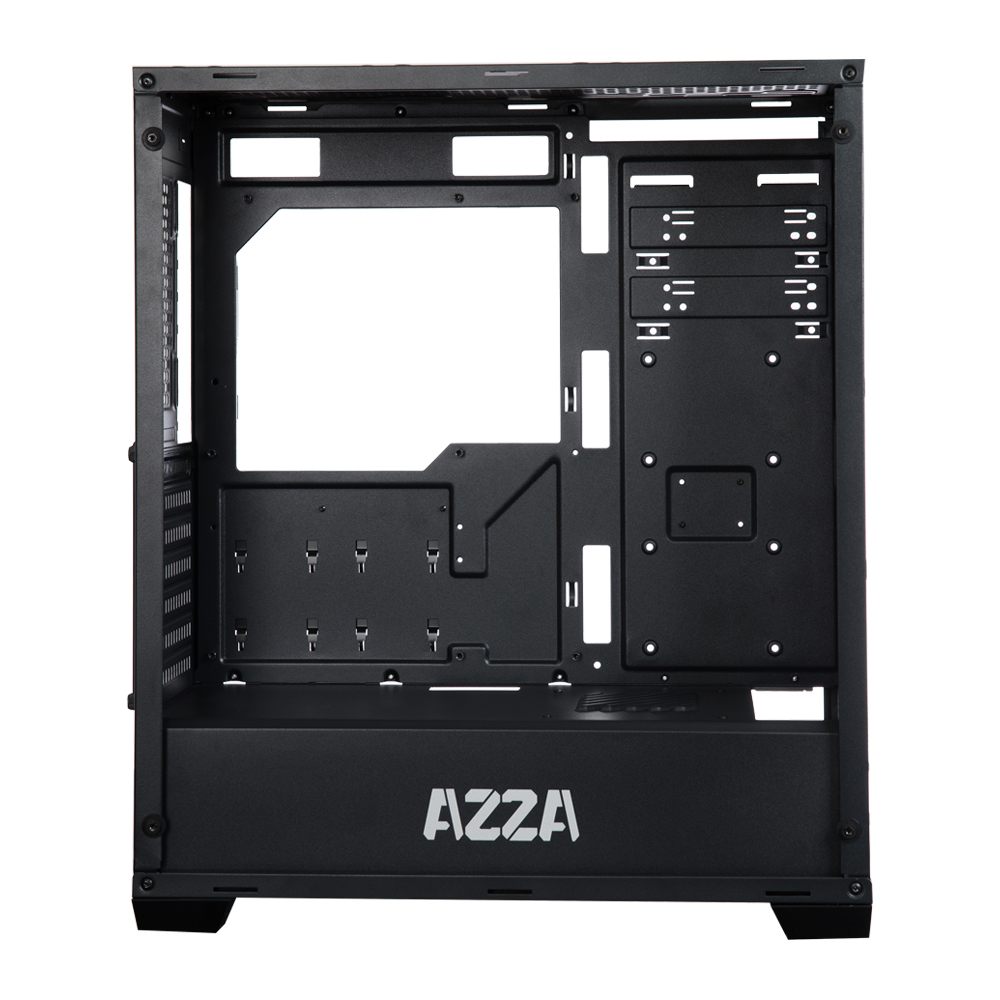

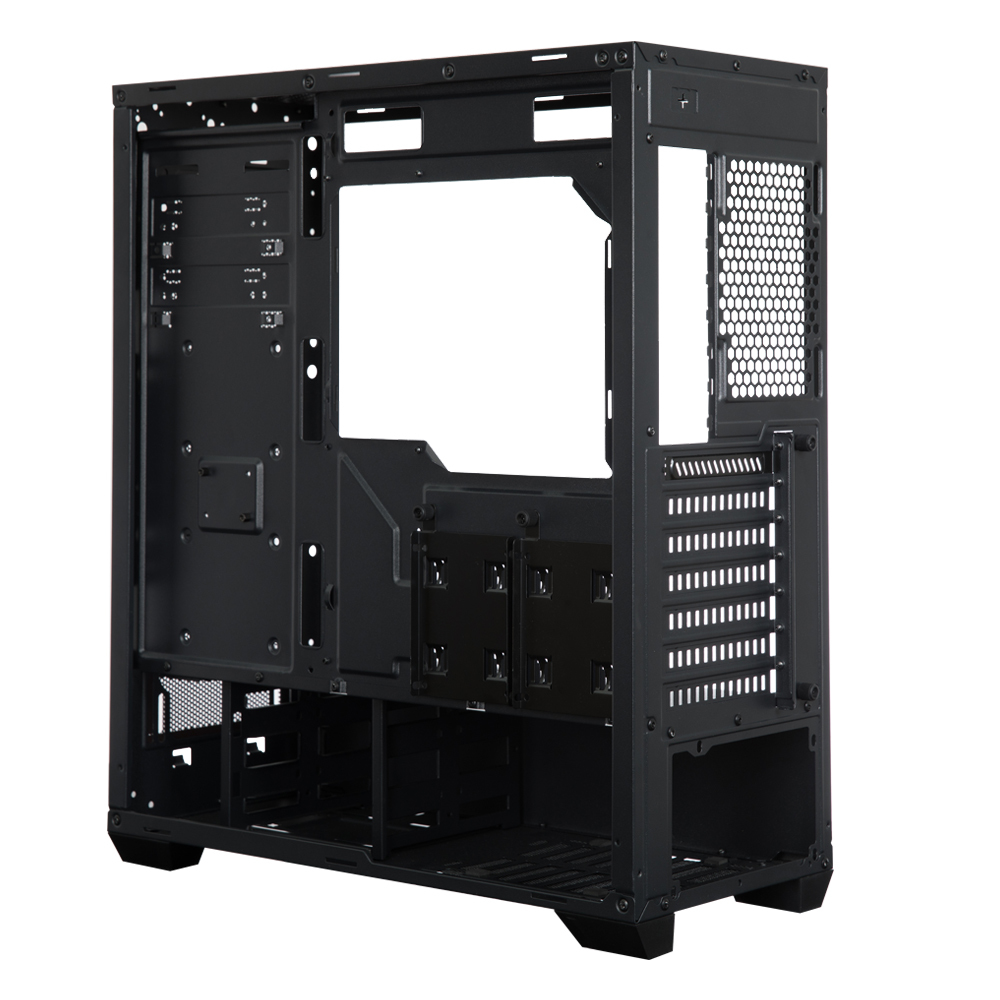

‧Two multifunctional brackets support
3.5" HDD or 2.5" SSD( A、B)
‧Two multifunctional brackets support
2.5" SSD( C、D)
< -
‧Two mounting holes support
2.5" devices.( E、F)
-
Supports up to 3 x 120mm or 2 x 140mm fan
up to 280mm water cooling radiator in height.
< -
Supports up to 2 x 140mm or 3 x 120mm fan
up to 360mm water cooling radiator in length.
