PYRAMID 804
PRODUCT SPECIFICATIONS
DIMENSIONS：585mm x 490mm x 490mm (H x W x D)
COLOR：1.5~2.0mm SPCC+ 2.5mm Aluminum
PRODUCT INFORMATION
‧Supports up to 300mm long video card.
‧Available Fan Ports:
1x120mm Fan port in the top
(1x 120mm Hurricane II Digital RGB Fan included )
3x120mm Fan port on the bottom
‧Supports radiators up to 360mm in the bottom.
| Model | |
|---|---|
| Model Name | PYRAMID 804 |
| Model Number | CSAZ-804 |
| Specifications | |
| Type | ATX Tower |
| Color | 1.5~2.0mm SPCC+ 2.5mm Aluminum |
| Side Panel Window | 4 sides of top panel are tempered glass |
| Max. CPU Cooler Height | Up to 80mm |
| Max. GPU Dimensions: | L=300 mm / W=132 mm / H=47 mm (Horizontal) |
| Power Supply | Not Included |
| Motherboard Compatibility | <305x280mm SSI-CEB 、ATX |
| Expansion | |
| External 5.25" Drive Bays: | 0 |
| Internal 2.5" Drive Bays | Up to 2 |
| Internal 3.5" Drive Bays | Up to 1 |
| (Convertible with 2.5"SSDx1 ) | |
| Expansion slots | 2 |
| Side Ports | 2xUSB 3.0、 HD Audio、Type C、Metal Power Button |
| Physical Specs | |
| Metal Chassis dimensions(HxWxD) | 558x490x490/22x19.3x19.3 inch |
| Dimension with Case Stand(HxWxD) | 585x490x490mm/23x19.3x19.3 inch |
| Weight | 14kg /30.9lbs |
| Features | |
| Tempered Glass on Four Sides Window | High-quality tempered glass side window allows for clear visuals to inner components |
| Available Fan Ports | 1x120mm Fan port in the Top(1x 120mm Hurricane II Digital RGB Fan included ) |
| 3x120mm Fan port on the Bottom | |
| Water Cooling | Supports radiators up to 360mm in the bottom. |
| Isolated Chamber | ATX Power supply inside its own isolated chamber,preventing its heat from affecting other components |
| Easy Installation Cooler | A pre-cut hole for easy installation of CPU Cooler, eliminating the need to remove the motherboard |
| Accessories | 15cm PCI-E 3.0 extension cable for VGA card(Support EATX 、ATX MB) |
| Adjustable video card holder | |
| Stand & Tempered glass (optional) | |
-

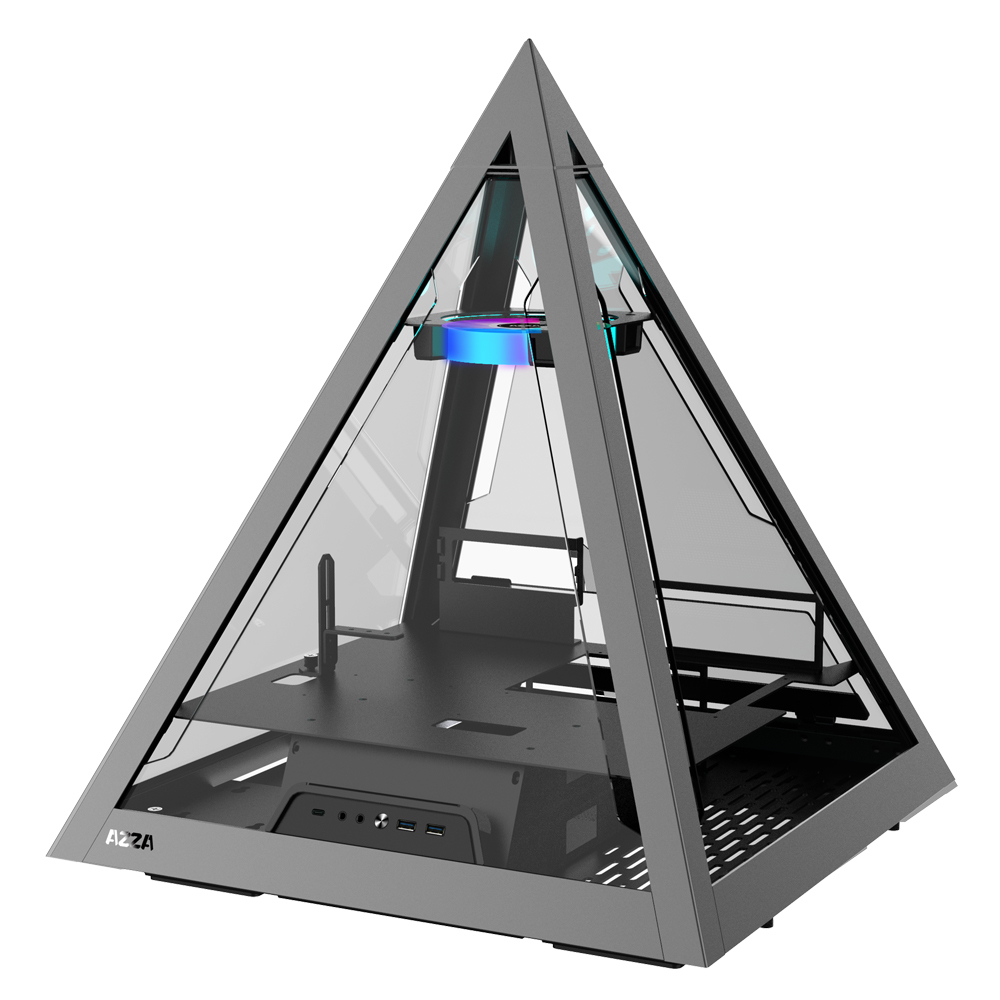

Why have an average case, when your case can be extraordinary? Enter the AZZA Pyramid 804, with its unique pyramid shape design and pleasing aesthetic.

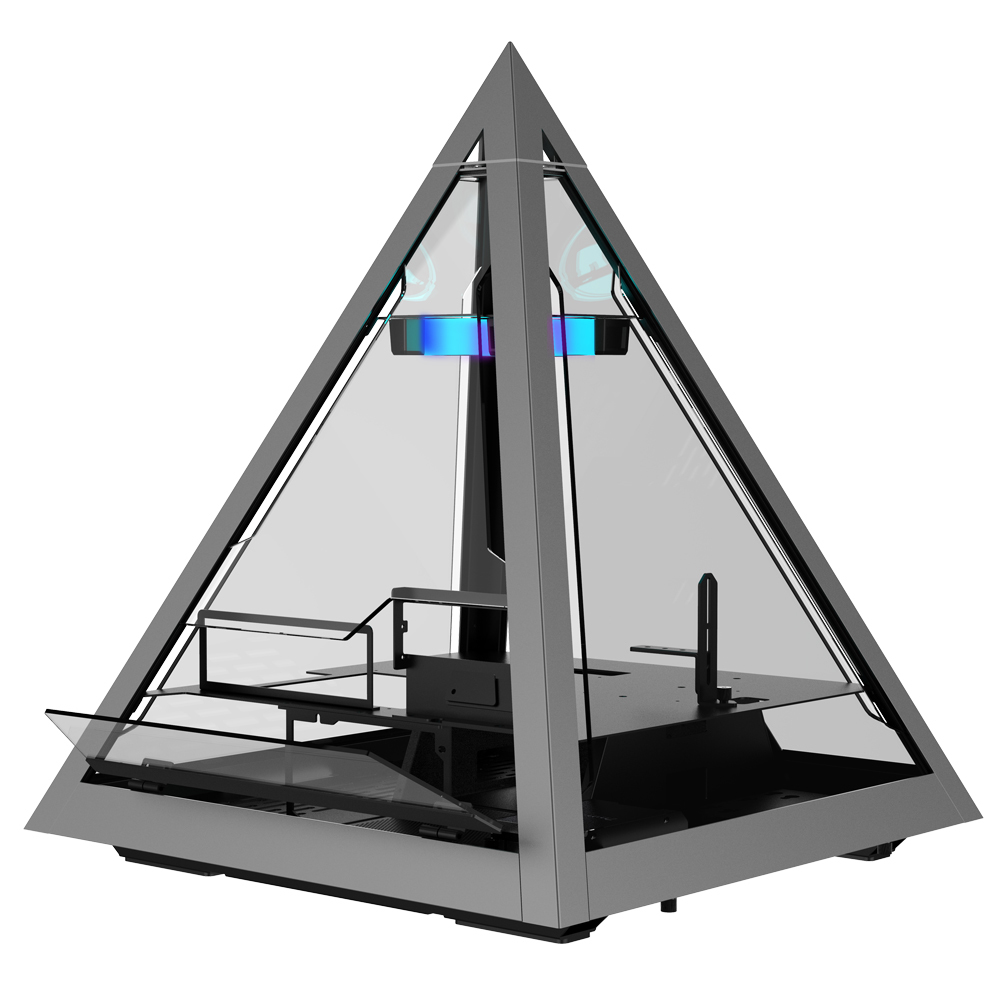

The case features four tempered glass side panels on all four faces, allowing you to show off your beautiful build from all angles.
A 120mm Hurricane II digital RGB fan is included, letting you customize its color to your heart’s content.
The Pyramid 804 is not just for show: it is able to support most builds that would fit inside any conventional mid-tower case,
such as an EATX motherboard, 300mm long video card, 2x2.5” drive bays, 1x3.5” drive bay, and water cooling radiators up to 360mm on the bottom of the case.
No matter which way you go with this case, it will prove to be a functional and eye-pleasing case in any circumstance.
< -
(A) 2.5" SSD spring bolt tray: Supports up to 2.5" SSD x 2
(B) 3.5" HDD spring bolt tray: Supports 3.5 HDD x 1
(also compatible with a 2.5" SSD)
-

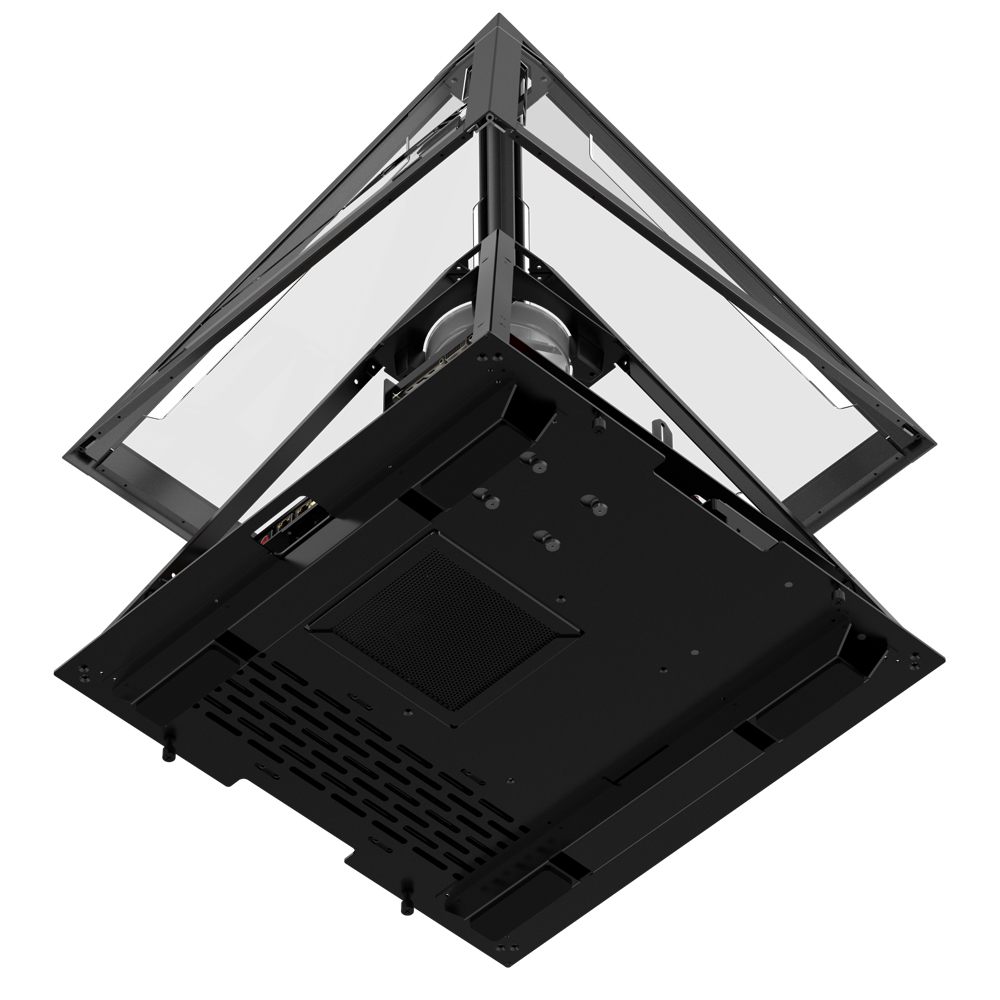

Supports Water Cooling up to 360mm in length or
120mm fans x3.
< -
Supports VIDEO cards up to 300mm in length
-

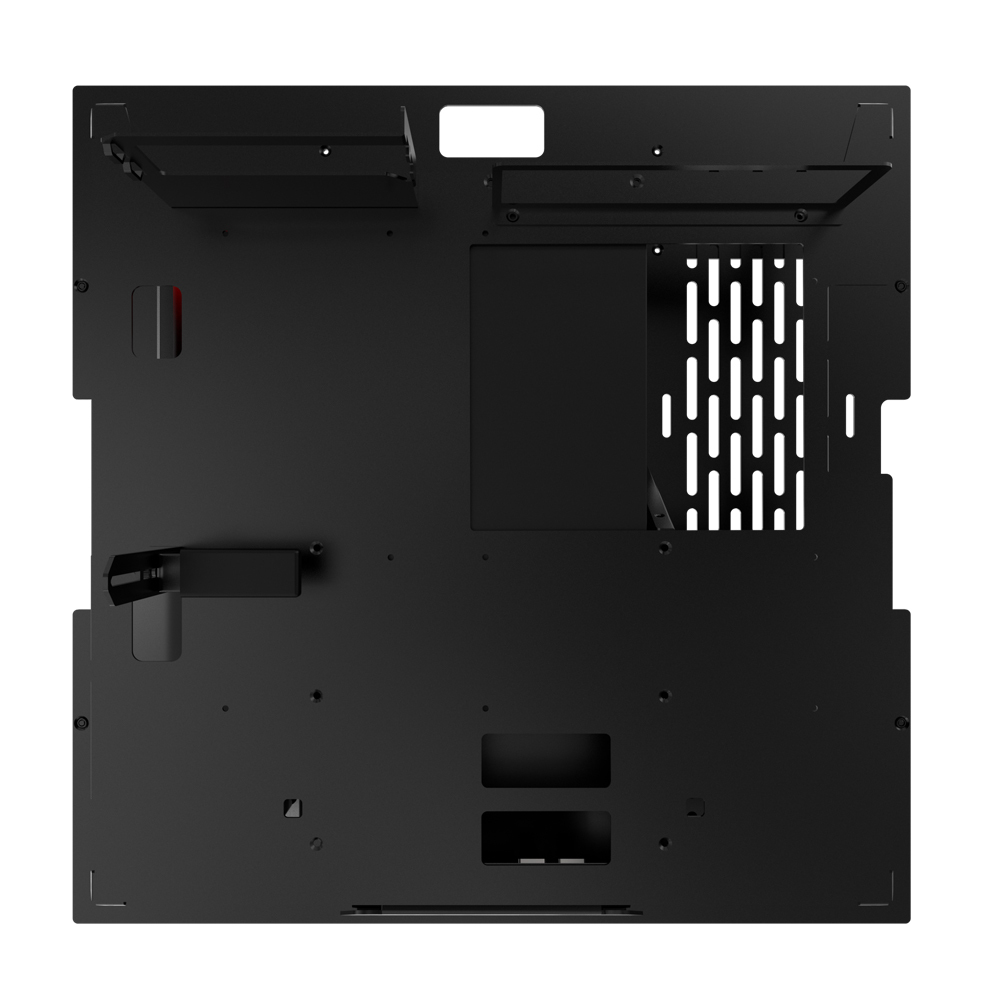

(A) Pre-cut hole for CPU coolling.
(B) Adjustable video card holder.
(C) Power cord management hole.
(D) Water radiator management hole.
< -
Maximum:<305x280mm SSI-CEB Motherboard
Minimum : ATX Motherboard
-
Secure the PSU in the chassis.
< -
(A) Aluminum Tempered Glass Cover.
(B) Easy access to I/O ports via flip glass.
-

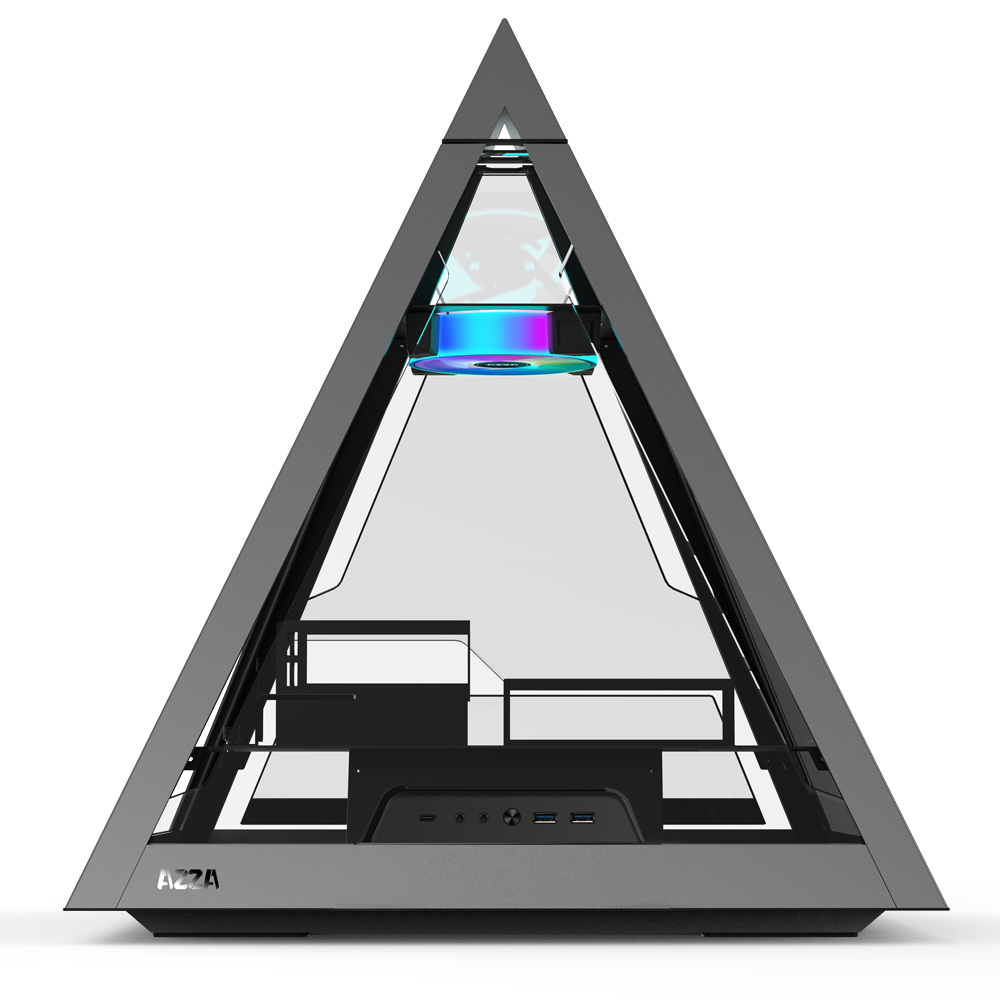

(A) USB Type C.
(B) HD Aduio.
(C) USB3.0 X2(Blue).
< -
(A) Supports a 120mm fan on the top.
< -
Hurricane II Digital RGB Fan Installation For Motherboard
Connecting a strip to an incorrect connector can potentially cause damage to the LED strip, due to the RGB, and Digital RGB connectors providing different voltages .
Our digital RGB devices are WS2812B-compliant. Each fan contains 18 digital/addressable LED diodes. The WS2812B standard supports up to 60 diodes at the maximum for a single header, so please do not daisy-chain more than 3 digital RGB fans together.
< -
150 mm PCI-E 3.0 Cable(Support EATX、ATX Motherboard)
