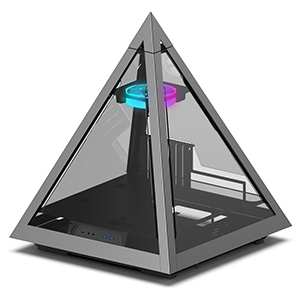

PYRAMID 804V

PRODUCT SPECIFICATIONS

DIMENSIONS:589mm x 490mm x 490mm (H x W x D)

COLOR:1.5~2.0mm SPCC+ 2.5mm Aluminum

PRODUCT INFORMATION

‧Supports up to 280mm long video card.

‧Available Fan Ports:

1x120mm Fan port in the top

(1x 120mm Hurricane II Digital RGB Fan included )

3x120mm Fan port on the bottom

‧Supports radiators up to 360mm in the bottom.

‧Supports the video card to be placed vertically.

Model
Model Name PYRAMID 804
Model Number CSAZ-804V
Specifications
Type ATX Tower
Color 1.5~2.0mm SPCC+ 2.5mm Aluminum
Side Panel Window 4 sides of top panel are tempered glass
Max.CPU Cooler Height Up to 95mm
Max.GPU Dimensions: L=280 mm /W=80 mm /H=132 mm (Vertical)
Power Supply Not Included
Motherboard Compatibility <305x280mm SSI-CEB 、ATX
Expansion
External 5.25" Drive Bays: 0
Internal 2.5" Drive Bays Up to 2
Internal 3.5" Drive Bays Up to 1
(Convertible with 2.5"SSDx1 )
Expansion slots 7
Side Ports 2xUSB 3.0、 HD Audio、Type C、Metal Power Button
Physical Specs
Metal Chassis dimensions(HxWxD) 558x490x490/22x19.3x19.3 inch
Dimension with Case Stand(HxWxD) 589x490x490mm/23.2x19.3x19.3 inch
Weight 14.1kg /31.1lbs
Features
Tempered Glass on Four Sides Window High-quality tempered glass side window allows for clear visuals to inner components
Available Fan Ports 1x120mm Fan port in the top(1x 120mm Hurricane II Digital RGB Fan included )
3x120mm Fan port on the bottom
Water Cooling Supports radiators up to 360mm in the bottom.
CPU Air Coolers <95mm.
Isolated Chamber ATX Power supply inside its own isolated chamber,preventing its heat from affecting other components
Easy Installation Cooler A pre-cut hole for easy installation of CPU Cooler, eliminating the need to remove the motherboard
Accessories Stand & Tempered glass(optional)

HDR247 2021/02/03

Azza PC Case Review

HDR247 2021/02/03

Azza PC Case Review

HDR247 2021/02/03

Azza PC Case Review


  • Why have an average case, when your case can be extraordinary? Enter the AZZA Pyramid 804V, with its unique pyramid shape design and pleasing aesthetic.
    The case features four tempered glass side panels on all four faces, allowing you to show off your beautiful build from all angles.
    A 120mm Hurricane II digital RGB fan is included, letting you customize its color to your heart’s content.
    The Pyramid 804V is not just for show: it is able to support most builds that would fit inside any conventional mid-tower case, such as an EATX motherboard, 280mm long video card, 2x2.5” drive bays, 1x3.5” drive bay, and water cooling radiators up to 360mm on the bottom of the case.
    No matter which way you go with this case, it will prove to be a functional and eye-pleasing case in any circumstance.

<

  • (A) 2.5" SSD spring bolt tray: Supports up to 2.5" SSD x 2

    (B) 3.5" HDD spring bolt tray: Supports 3.5 HDD x 1
    (also compatible with a 2.5" SSD)


  • Supports Water Cooling up to 240mm/360mm in length or
    120mm fans x3.

<

  • (1)Pre-cut hole for CPU cooling
    (2)Power cord management hole
    (3)Water radiator management hole
    (4)Motherboard mount


  • Maximum:<300mm EATX Motherboard.

<

  • Secure the PSU in the chassis.

<
  • Hurricane II Digital RGB Fan Installation For Motherboard
    Connecting a strip to an incorrect connector can potentially cause damage to the LED strip, due to the RGB, and Digital RGB connectors providing different voltages .
    Our digital RGB devices are WS2812B-compliant. Each fan contains 18 digital/addressable LED diodes. The WS2812B standard supports up to 60 diodes at the maximum for a single header, so please do not daisy-chain more than 3 digital RGB fans together.
