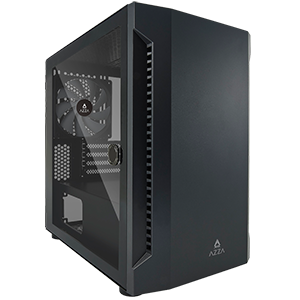

Bastion 120
PRODUCT SPECIFICATIONS
DIMENSIONS：390mm x 230mm x 400mm (H x W x D)
COLOR：Black
PRODUCT INFORMATION
‧Supports up to 340mm long video card.
‧Left Side panel: Magnetic Tempered Glass Door.
‧Available Fan Ports:
2x120mm or 2x140mm or 1x200mm fan ports in the front
2x120mm or 2x140mm Fan ports on the top
1x120mm or 1x140mm Fan port in the rear
(1x140mm Fan included for model CSAZ-120)
‧Supports radiator up to 240/280mm in the Front
‧Supports radiator up to 240mm on the Top
| Model | |
|---|---|
| Model Name | Bastion 120 |
| Model Number | CSAZ-120 |
| Specifications | |
| Type | Micro ATX Mid Tower |
| Color | Black/Black(interior) |
| Side Panel Window | Left Side panel: Magnetic Tempered Glass Door |
| Max CPU Cooler Height | Up to 175mm |
| Max video Card Length | Up to 340mm long video card |
| Power Supply | Not Included |
| Motherboard Compatibility | Micro ATX、ITX |
| Expansion | |
| External 5.25" Drive Bays: | 0 |
| Internal 2.5" Drive Bays | Up to 4 |
| Internal 3.5" Drive Bays | Up to 2 |
| Expansion slots | 4 |
| Top Ports | Power button, reset button,Led button, HD Audio, USB 3.0 x 1, USB2.0x2 |
| Physical Specifications | |
| Case Dimension (HxWxD) | 390 x 230 x 400mm / 15.4 x 9.1 x 15.7 inches |
| Weight | 4.2kg /9.26lbs |
| Features | |
| Tempered Glass Sides Window | High-quality tempered glass side window allows for clear visuals to inner components |
| Available Fan Ports | 2x120mm or 2x140mm or 1x200mmFan ports in the front |
| 2x120mm or 2x140mm Fan ports on the top | |
| 1x120mm or 1x140mm Fan port in the rear | |
| (1x140mm Fan included for model CSAZ-120) | |
| Water Cooling | Supports radiator up to 240/280mm in the Front |
| Supports radiator up to 240mm on the Top | |
| Dust filters | Removable (magnetic) dustproof net on the top , iron net on bottom of chassis. |
| Power Supply Support | Bottom mounted ATX Power Supply |
-
The stalwart Bastion 120 is the perfect case for those who desire a sturdy and powerful shell for their system.
The front panel of the case is a matte gray with pronounced bezels, giving it a commanding appearance.
The tempered glass side door gives you easy access to your micro ATX system.
The case is spacious and gives ample room for installing various parts, such as a 280mm radiator, up to 5 separate fans, and a 340mm video card.
Be prepared to strike down your foes with the powerful Bastion.
-
Cable clip x2
-
Supports up to 340mm long video cards.
Supports 2.5" SSD X4
(C、D、E、F)
-
Supports 3.5" HDD X2
(A、B)
-
Supports up to 2x 120mm or 2 x 140mm fan
up to 280mm water cooling radiator in height.
-
Supports up to 1x 200mm fan in front.
-
Supports up to 1x140mm or 1x120mm fan in rear.
-
Supports up to 2x 120mm or 2 x 140mm fan
up to 240mm water cooling radiator in length.
