PYRAMID Mini 806

FEATURES SPECIFICATIONS REVIEW MANUAL

‧Supports Up to 280mm long Video card (Horizontal)

‧Available Fan Ports:

1x120mm Fan port in the Top

(1x 120mm Hurricane II Digital RGB Fan included )

‧Supports radiators up to 120mm on the Top

‧Support SFX power supply only.

Model
Model Name	PYRAMID MINI 806
Model Number	CSAZ-806
Specifications
Type	MINI ITX Tower
Material	1.5mm SPCC+ 2.0mm Aluminum
Side Panel Window	4 sides panel are tempered glass
Max CPU Cooler Height	UP to 85mm
Max video Card Length	Up to 280mm long video card (Horizontal)
Power Supply	Support SFX power supply only
Motherboard Compatibility	Mini ITX
Expansion
External 5.25" Drive Bays:	0
Internal 2.5" Drive Bays	Up to 2
Internal 3.5" Drive Bays	Up to 0
Expansion slots	2
Front Ports	Power button, 1xUSB 3.0, HD Audio
Physical Specs
Dimension with Case Stand(HxWxD)	435x368x368mm/17.1x14.5x14.5 inches
Weight	6.3kg /13.9lbs
Features
Tempered Glass on Four Sides Window	High-quality tempered glass side window allows for clear visuals to inner components
Available Fan Ports	1x120mm Fan port in the Top
	(1x 120mm Hurricane II Digital RGB Fan included )
Water Cooling	Supports radiators up to 120mm on the Top
Isolated Chamber	SFX power is on the bottom
	Prevent its heat from affecting other components
Easy Installation Cooler	A pre-cut hole for easy installation of CPU Cooler, eliminating the need to remove the motherboard
Accessories	20cm PCI-E 3.0 Extend cable for VGA card (included)

Xtian C 2020/10/23

Azza PC Case Review

Azza PC Case Review

Azza PC Case Review

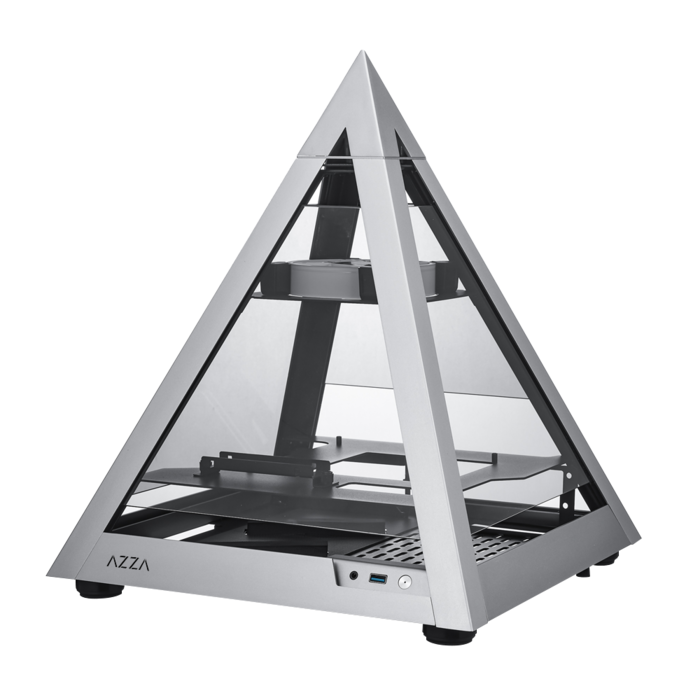

The AZZA PYRAMID MINI 806 transforms the conventional workspace into a show-stopping display.
The luxurious aluminum exterior with four tempered glass side panels offers users an unrestricted 360-degree view of the components inside.
The MINI 806 has a multi-level design that provides easy installation and upgrades when using any Mini-ITX motherboard setup.
It is preinstalled with the 120mm Hurricane II digital RGB fan, with the option of adding a second 120mm radiator below the fan mount plate for additional cooling performance.

Show-Stopping Design
Dare to be different; the PYRAMID 806 MINI completely transforms the conventional workspace into a spectacular one.
With its quality design and premium finish, the chassis grants users the ability to create performance-based builds that are unique in every way.

Small but Compatible
Inspired by the smaller ITX form factor, the PYRAMID 806 MINI allows for powerful
components to be easily installed without worrying about clearance or airflow.

Multi-Level Easy Access
Thinking outside the box: The PYRAMID 806 MINI features a multi-level design for easy access to all your components.
The bottom level is designated to the graphics card and power supply, the second level for the ITX motherboard and SSD storage, and the third level for the cooling unit.
Not only does this design offer stylistic and organizational enhancements, but it also makes installing and upgrading components easier than ever.

Aluminum & Glass Design
The PYRAMID MINI 806’s smooth aluminum exterior and huge glass panels provide a stylistic and elegant design that makes it a great conversational piece.
The 4-sided glass panels provide a complete view for your build at any angle.

Refined Front Panel Control
The front panel control is tucked neatly at the bottom corner and has a power/reset button, USB 3.0, and audio jack for effortless connectivity and minimal cable routing.

Ease Of Access
The rear side provides easy access to the motherboard, graphics card, and power supply.
Connecting peripherals is simple and painless.

Optimal Airflow
For greater heat dissipation, special cut-outs from the glass panels deliver unrestricted airflow and ventilation from every side of the chassis.
