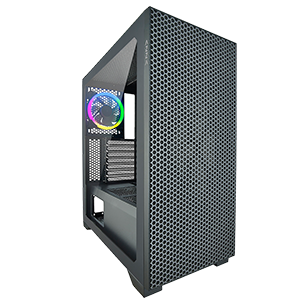

HIVE 450
PRODUCT SPECIFICATIONS
DIMENSIONS：470mm x 215mm x 415mm (H x W x D)
COLOR：Black/Black(interior)
PRODUCT INFORMATION
‧Supports up to 360mm long video card.
‧Available Fan Ports:
3x120mm or 3x140mm Fan ports in the front
3x120mm or 2x140mm Fan ports on the top
2x120mm Fan ports on the top of PSU shroud
1x120mm Fan port in the rear
(1x120mm ARGB Fan included)
‧Supports radiators up to 280/360mm in the Front
‧Supports radiators up to 240mm in the Top
| Model | |
|---|---|
| Model Name | HIVE 450 |
| Model Number | CSAZ-450 |
| Specifications | |
| Type | ATX Mid Tower |
| Color | Black/Black(interior) |

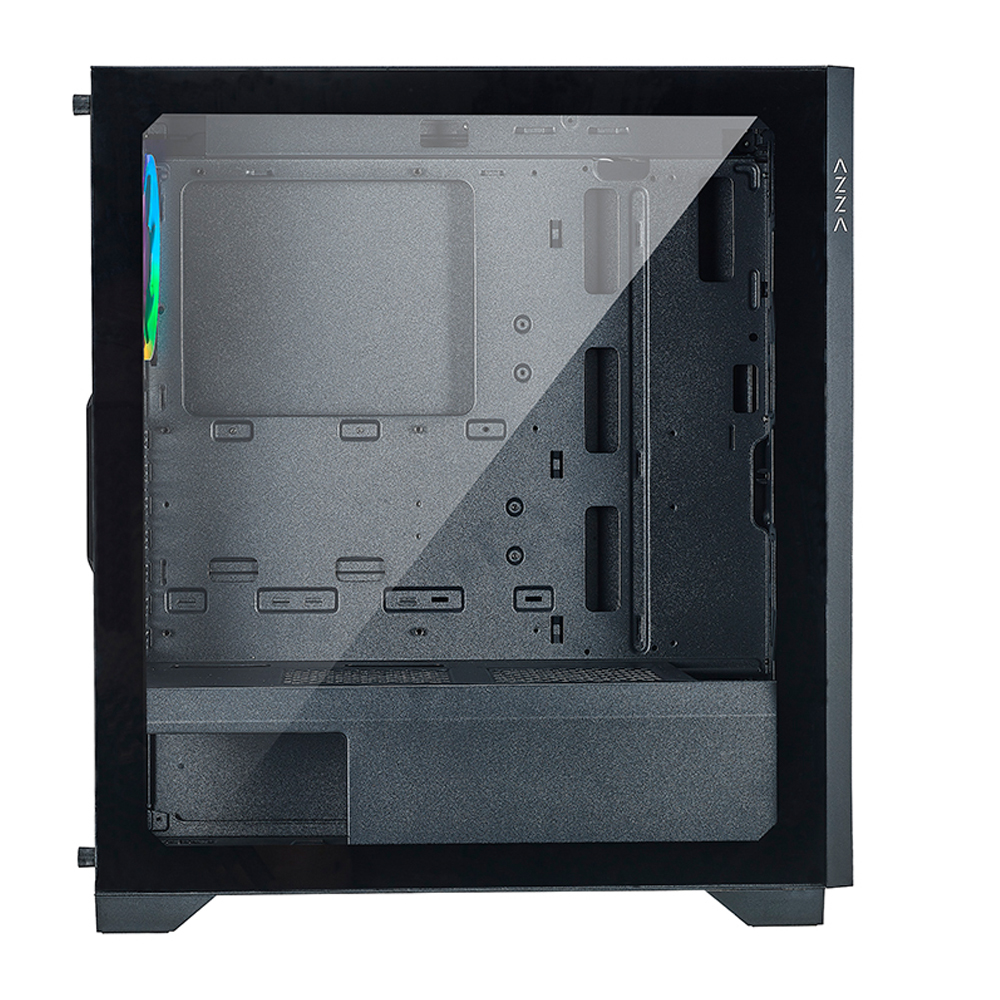

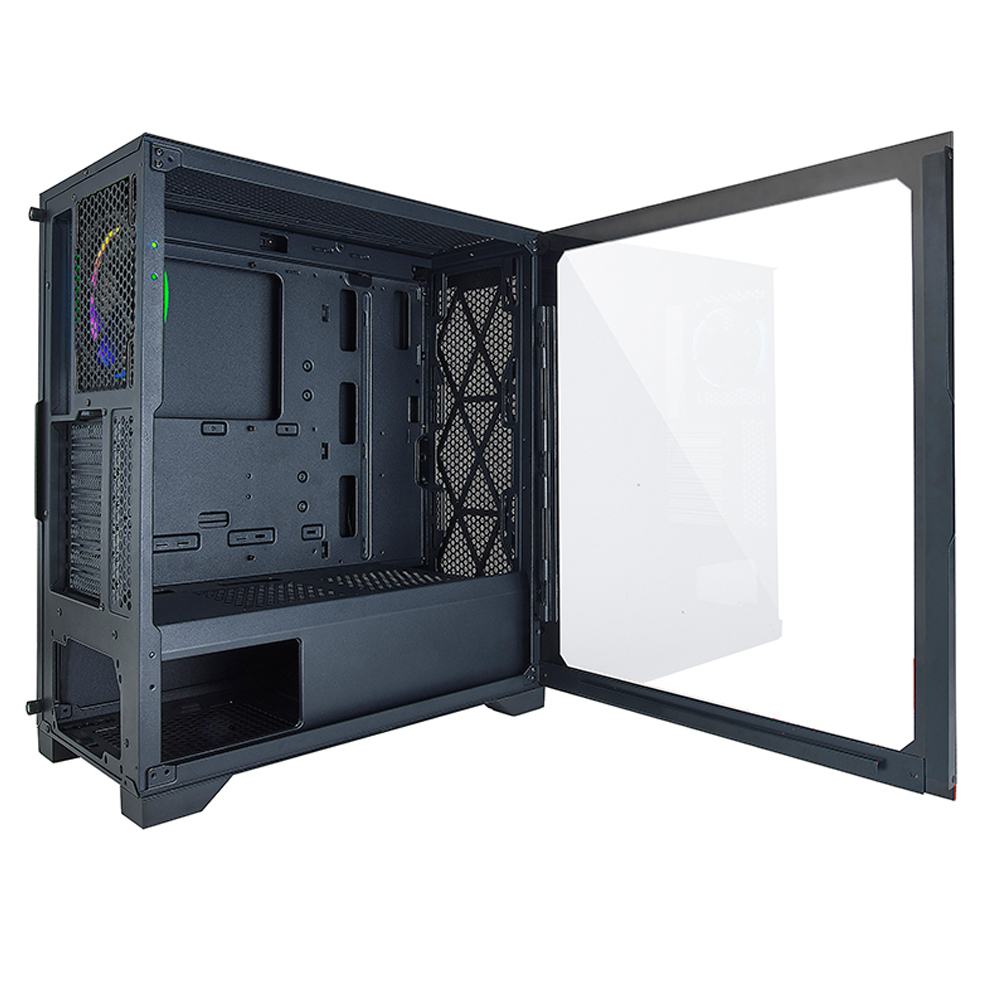

| Side Panel Window | Left side panel: tempered glass with rubber mounts |
| Max CPU Cooler Height | UP to 165mm |
| Max video Card Length | Up to 360mm long video card |
| Power Supply | Not Included |
| Motherboard Compatibility | <267mm E-ATX、ATX、Micro ATX、ITX |
| Expansion | |
| External 5.25" Drive Bays: | 0 |
| Internal 2.5" Drive Bays | Up to 4 |
| Internal 3.5" Drive Bays | Up to 2 |
| Expansion slots | 7 |

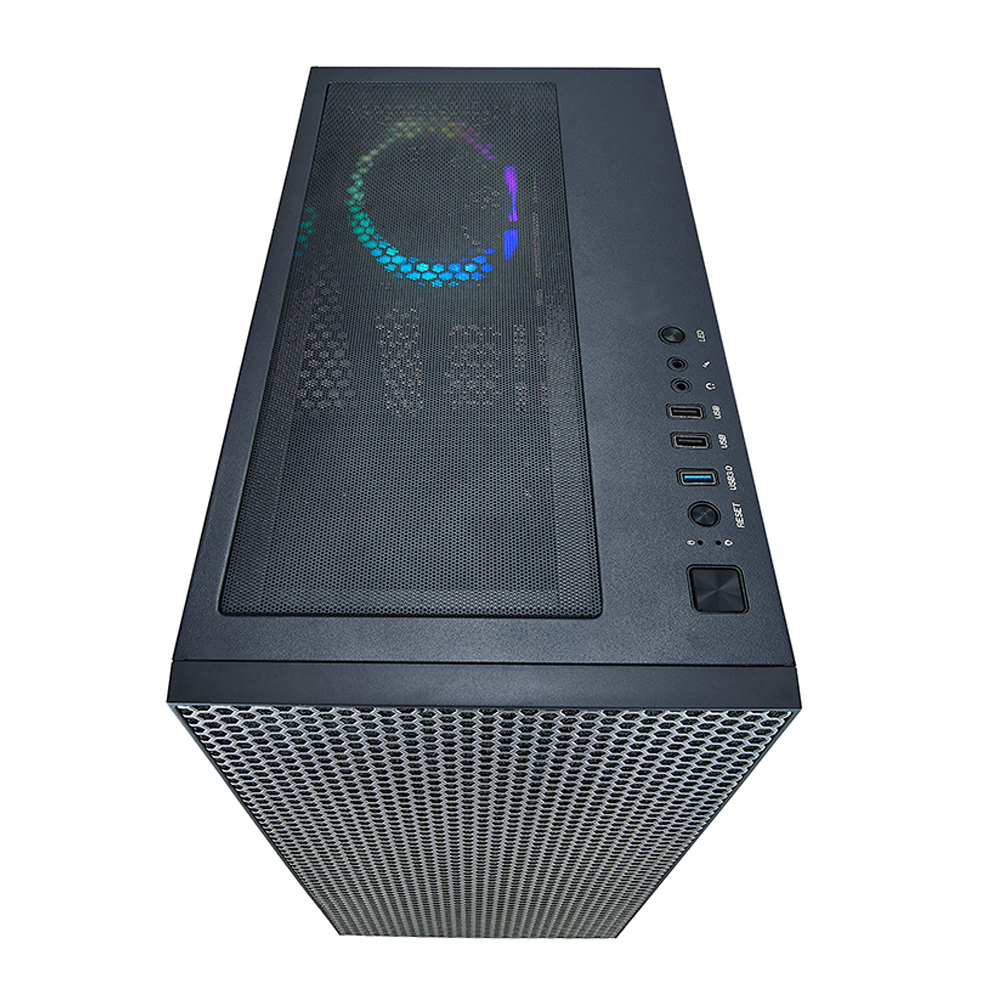

| Top Ports | Power button, reset button,led button, HD Audio, USB 3.0 x 1, USB2.0x2 |
| Physical Specs | |
| Dimension with Case Stand(HxWxD) | 470X215X415mm/18.5X8.5X16.3 inches |
| Weight | 6.3kg /13.9lbs |
| Features | |
| Tempered Glass on Four Sides Window | High-quality tempered glass side window allows for clear visuals to inner components |
| Addressable RGB Light Effects: | All ARGB light sync. devices connected to the ARGB control board, allowing the LED button to directly contrl the ARGB lighting. |
| Available Fan Ports | 3x120mm or 3x140mm Fan ports in the front |
| 3x120mm or 2x140mm Fan ports on the top | |
| 2x120mm Fan ports on the top of PSU shroud | |
| 1x120mm Fan port in the rear | |
| (1x120mm ARGB Fan included) | |
| Water Cooling | Supports radiators up to 280/360mm in the Front |
| Supports radiators up to 240mm in the Top | |
| Dust Filters: | Removable (magnetic) mesh net on the top, Steel dust filter on bottom of chassis. |
| Power Supply Support: | Bottom mounted ATX Power Supply |
| Accessories: | ARGB Controller Board |
-

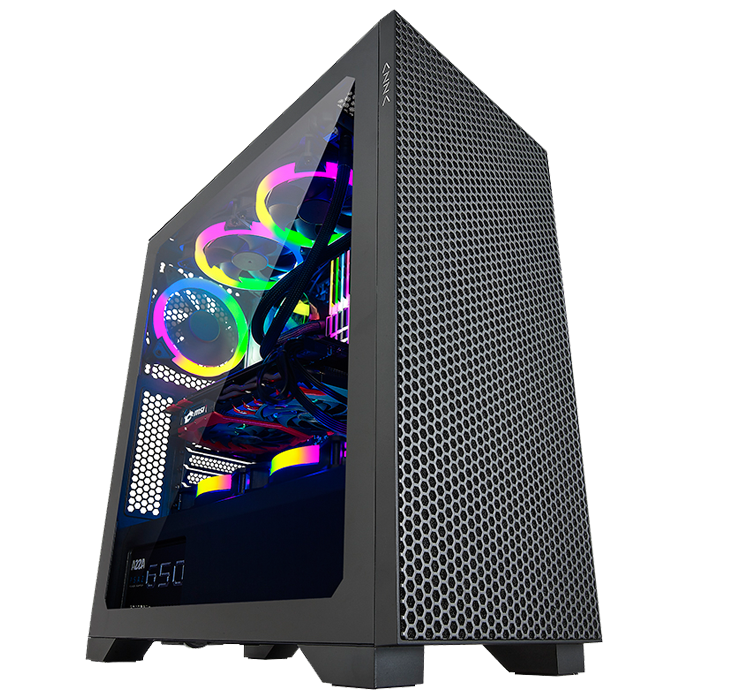

Designed with airflow and cooling in mind, Hive 450 is the perfect option for those looking for good thermals, dust protection, and minimalism in a computer case.

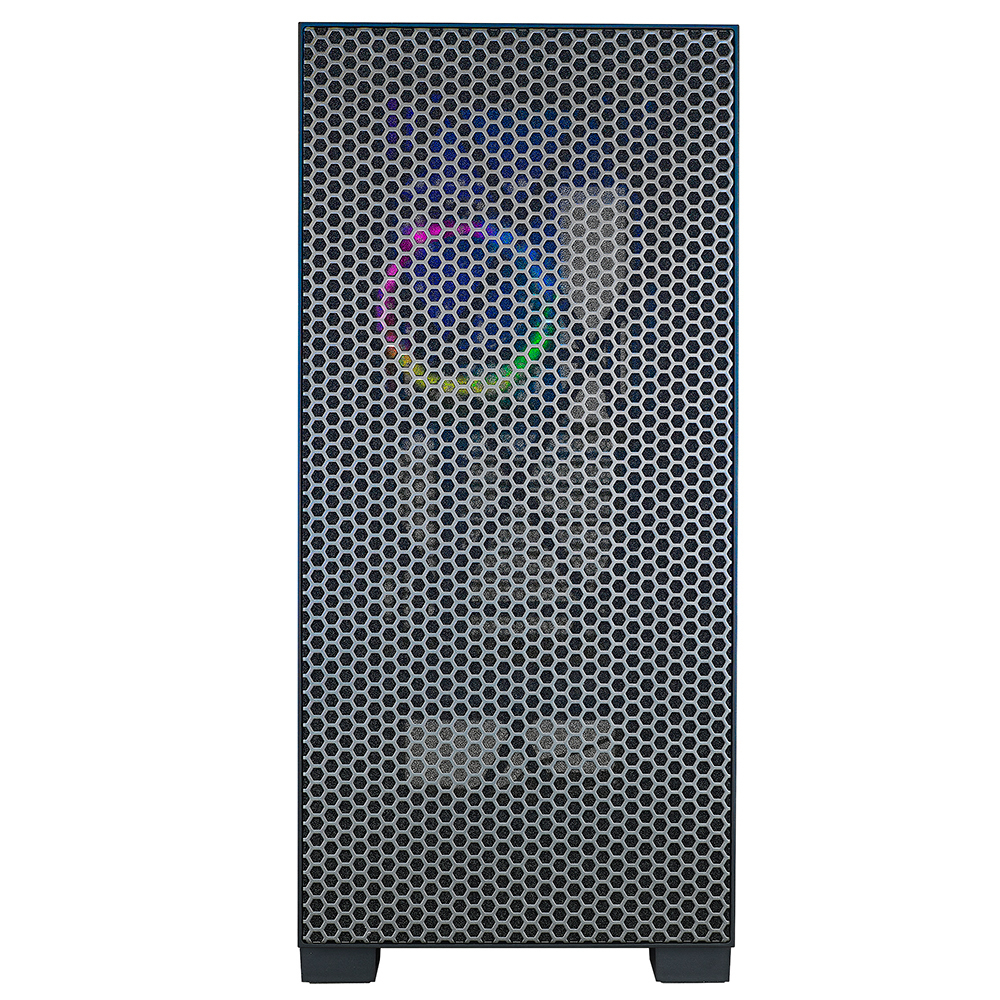

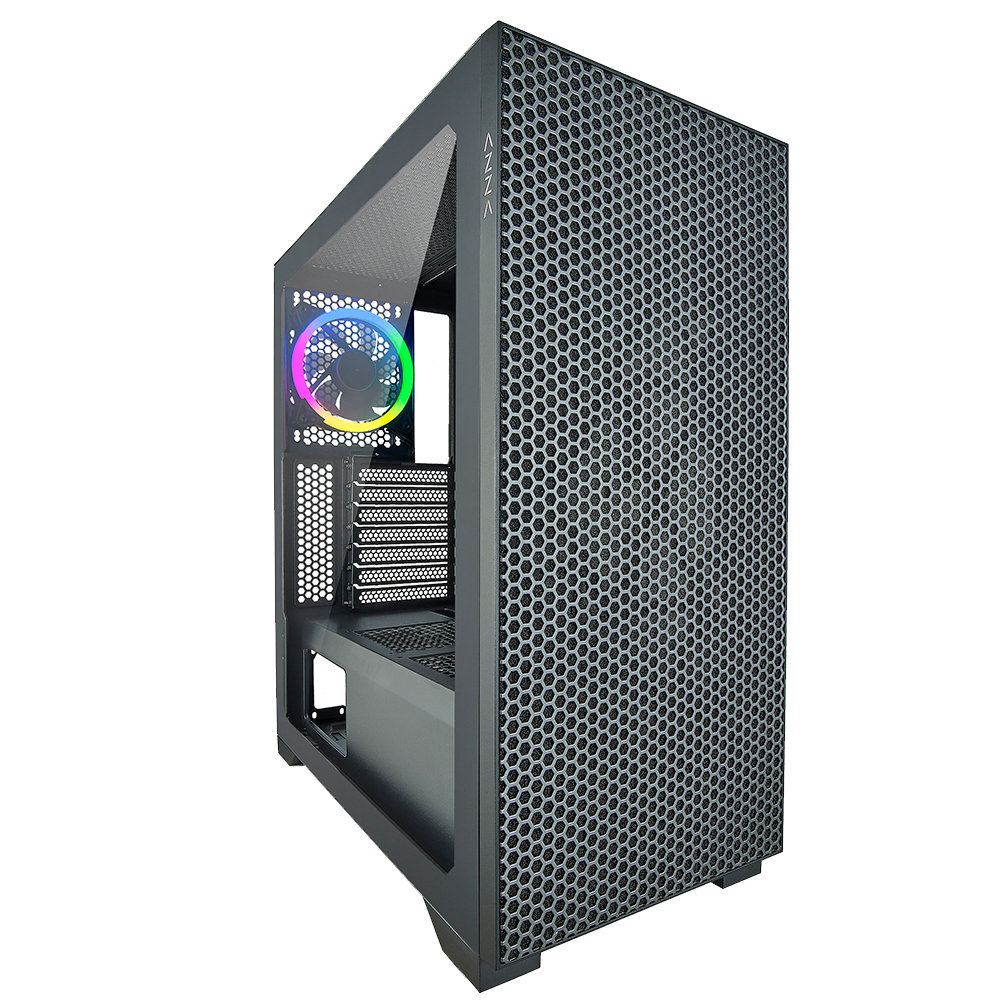

A layer of fine, breathable mesh covers the entire front panel, providing dust protection and muting excessive lighting from the interior of the case.
There is plenty of space within the case, with support for up to a 360mm graphics card, up to four 2.5" drives, 9 fan ports, and radiators in the top and front.
< -

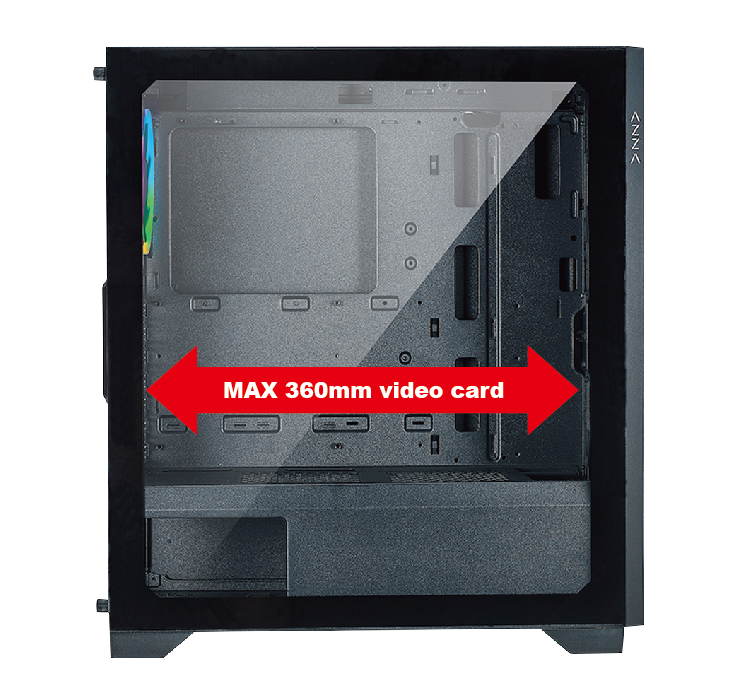

Supports VIDEO cards up to 360mm in length.
-

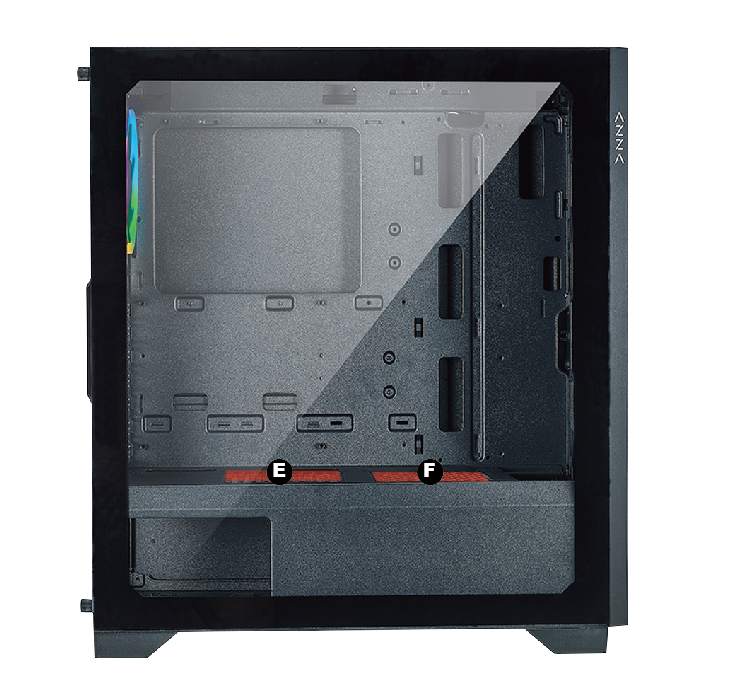

Supports up to 120mm fan x2
(E、F)
< -

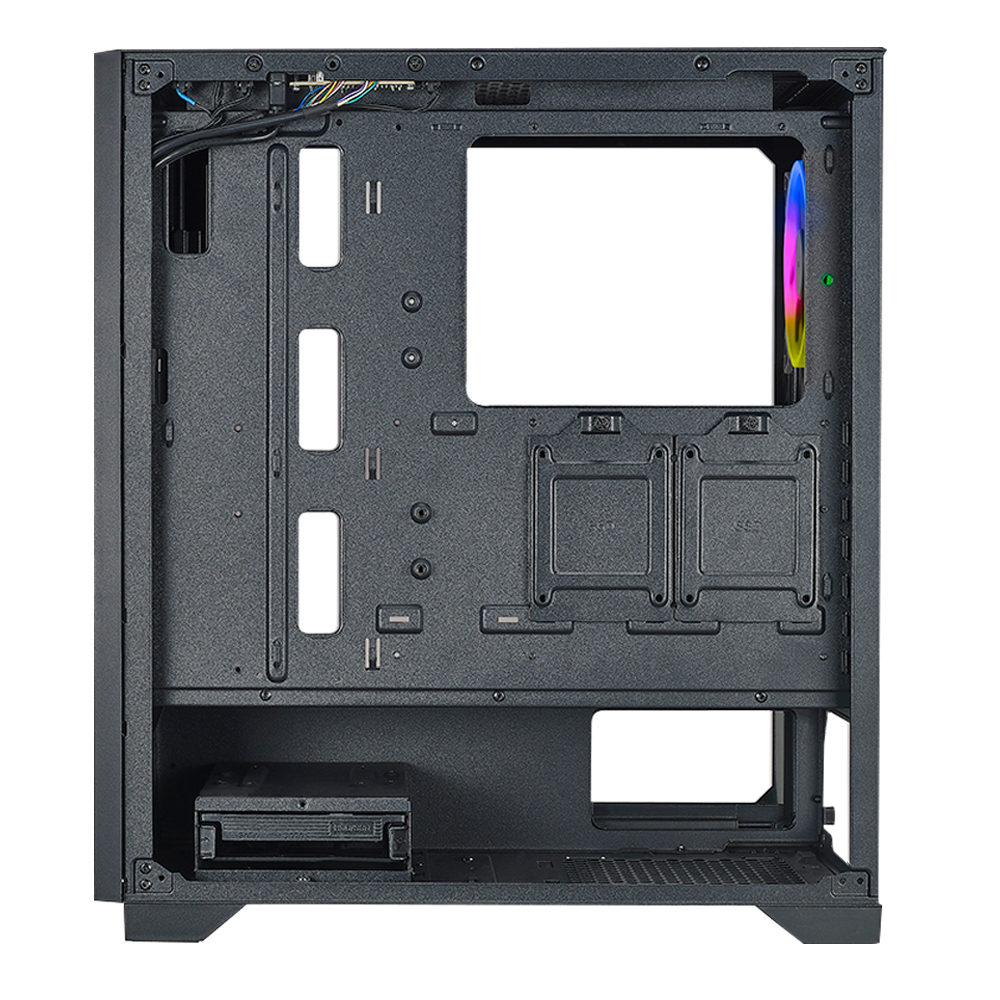

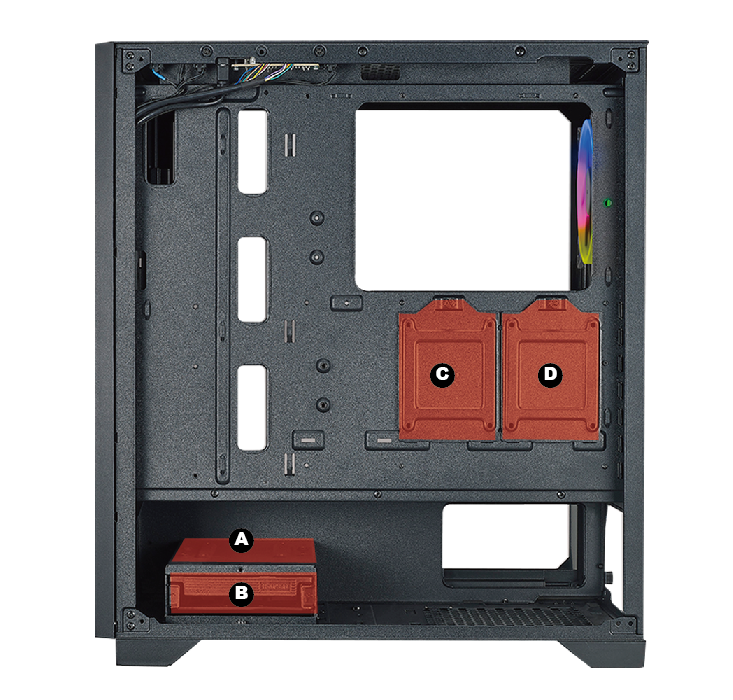

Multifunctional hard disk bracket support 3.5”HDD or 2.5” SSD x 1
(B)
Multifunctional hard disk cage support 3.5”HDD or 2.5” SSD x 1
(A)
2.5" SSD metal tray support 2.5” SSD x 2
(C、D)
-
▪Supports up to 3x120mm or 3x140mm fan
▪Supports up to 360mm water cooling radiator in height.
< -
▪Supports up to 1x120mm fan
< -
▪Supports up to 2x120mm or 2x140mm fan
▪Supports up to 240mm water cooling radiator in length.
-

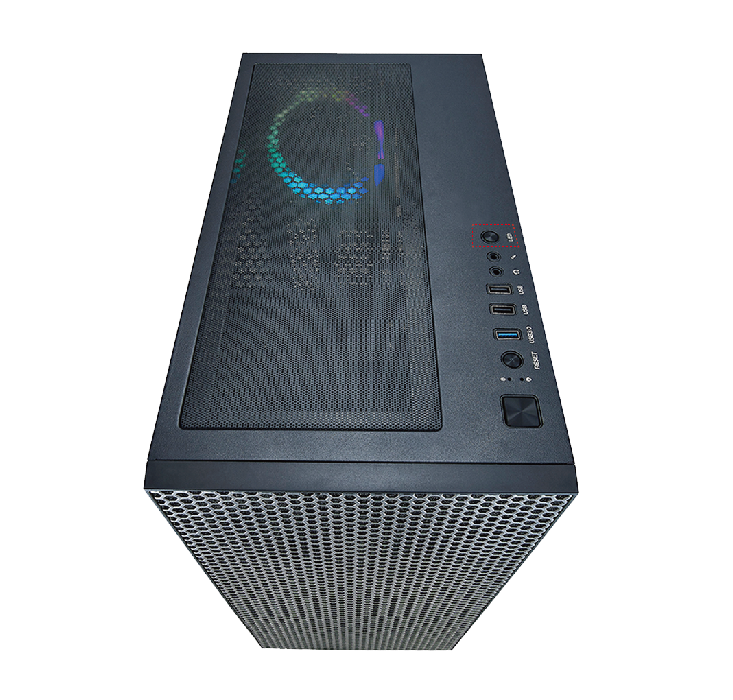

▪Press the LED button to cycle through different RGB lighting modes, controlled by the LED button though the ARGB control board.
▪Hold the LED button for 3 seconds to switch the RGB control function between motherboard RGB software and LED button.
