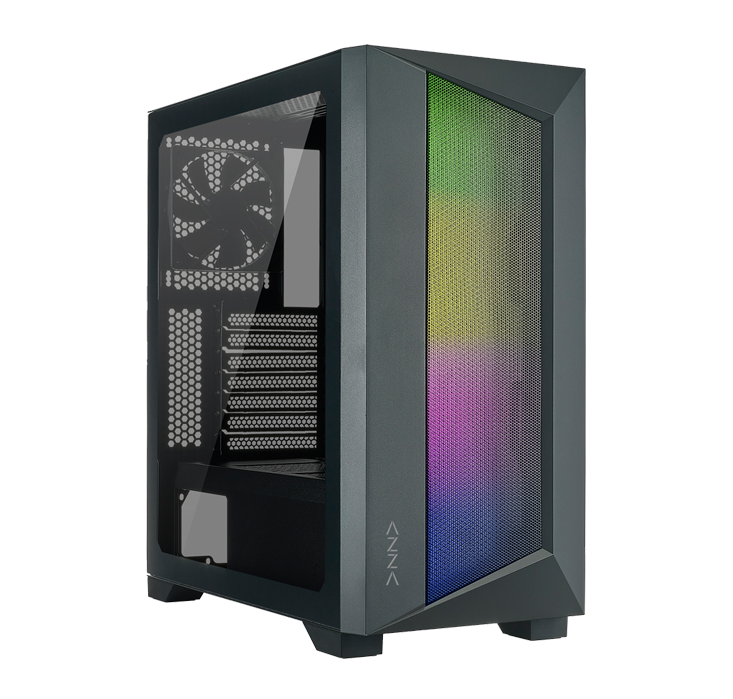

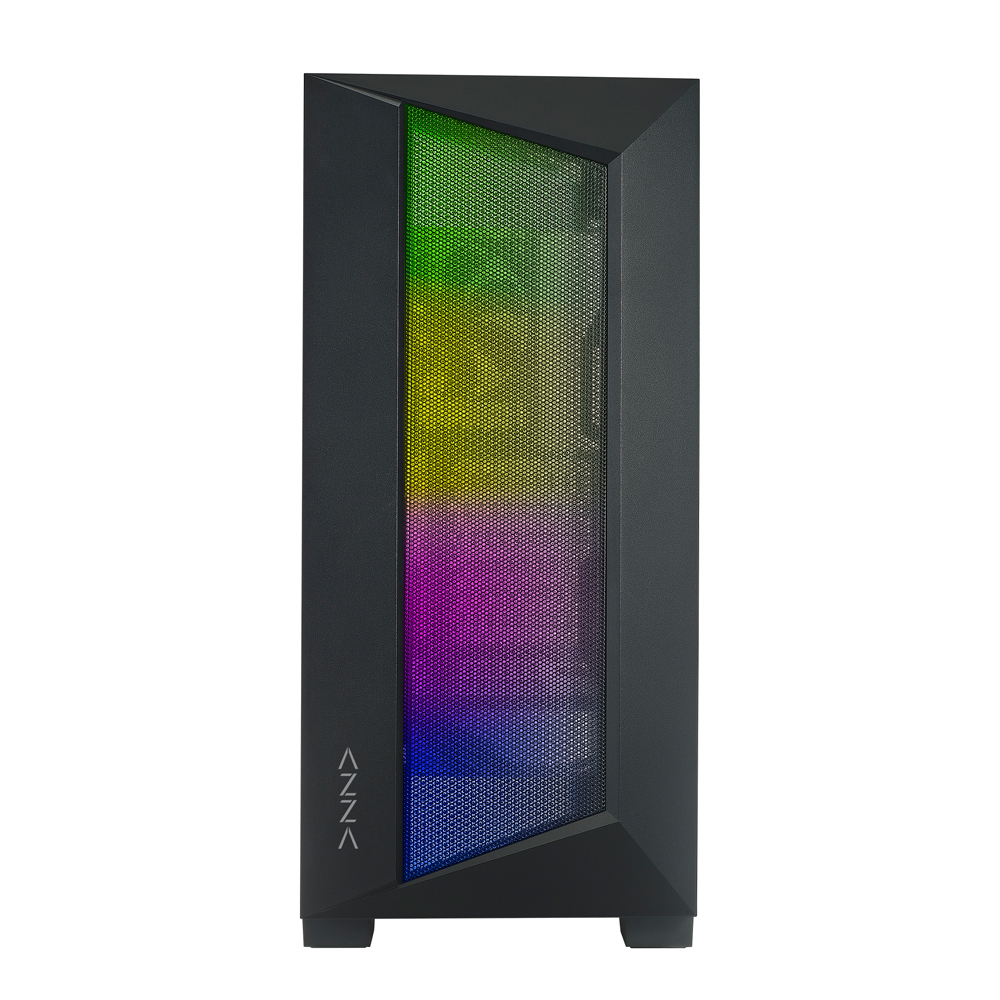

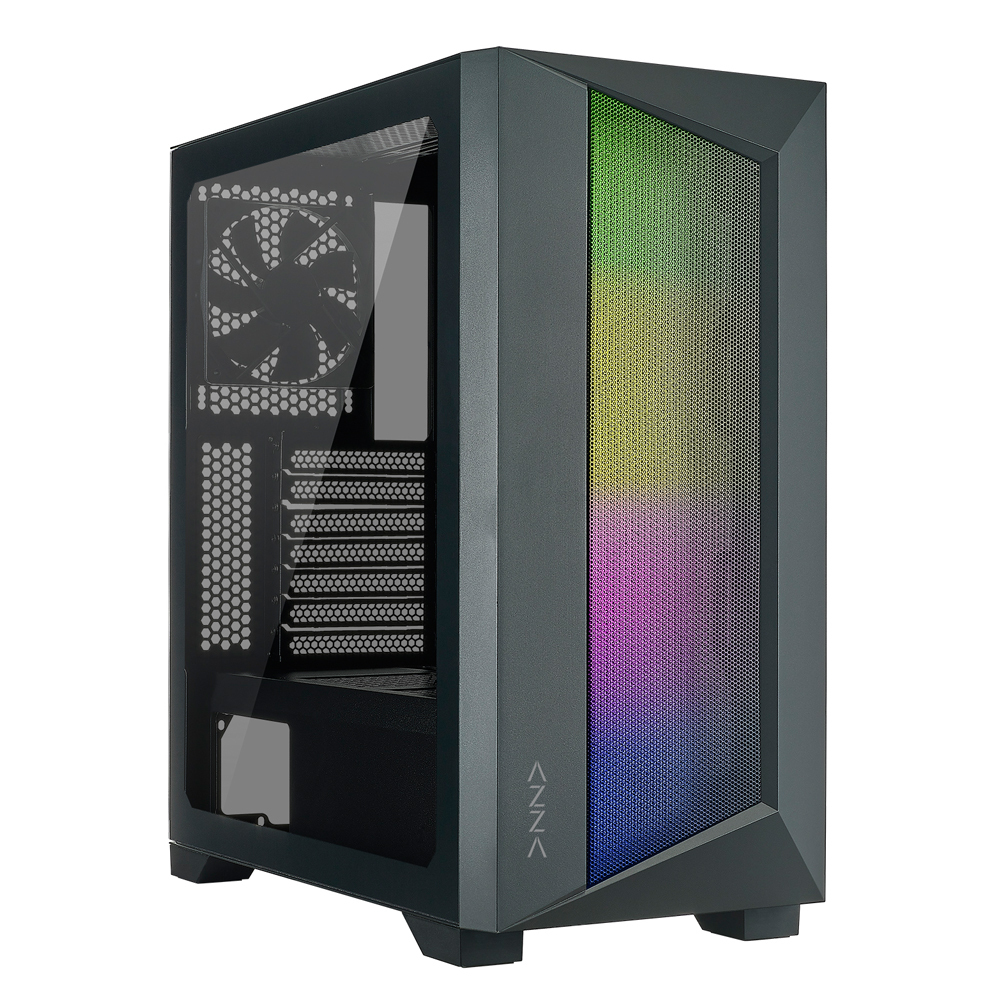

OCTANE B
PRODUCT SPECIFICATIONS
DIMENSIONS：470mm x 215mm x 443mm (H x W x D)
COLOR：Black/Black(interior)
PRODUCT INFORMATION
‧Supports up to 360mm long video card.
‧Available Fan Ports:
1x120mm Fan port in the rear
(CSAZ-460B: 1x120mm black fan included)
3x120mm or 2x140mm Fan ports on the top
‧Supports radiators up to 280/360mm in the Front
‧Supports radiators up to 240mm in the Top

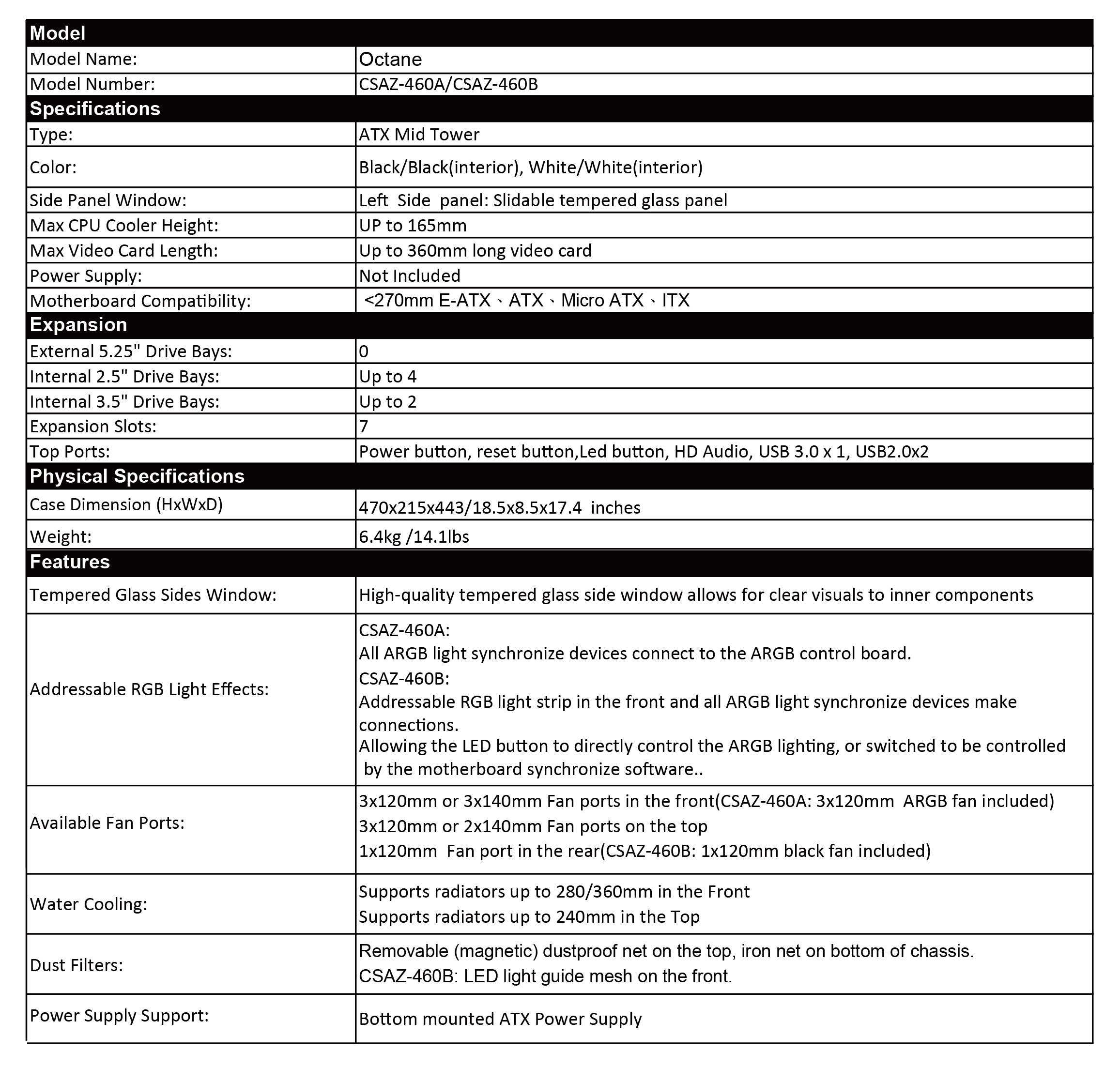

| Model | |
|---|---|
| Model Name | Octane |
| Model Number | CSAZ-460B |
| Specifications | |
| Type | ATX Mid Tower |
| Color | Black/Black(interior) |
| Side Panel Window | Left side panel: Slidable tempered glass panel |
| Max CPU Cooler Height | UP to 165mm |
| Max video Card Length | Up to 360mm long video card |
| Power Supply | Not Included |
| Motherboard Compatibility | <270mm E-ATX、ATX、Micro ATX、ITX |
| Expansion | |
| External 5.25" Drive Bays: | 0 |
| Internal 2.5" Drive Bays | Up to 4 |
| Internal 3.5" Drive Bays | Up to 2 |
| Expansion slots | 7 |
| Top Ports | Power button, reset button,led button, HD Audio, USB 3.0 x 1, USB2.0x2 |
| Physical Specs | |
| Dimension with Case Stand(HxWxD) | 470X215X443mm/18.5X8.5X17.4 inches |
| Weight | 6.4kg /14.1lbs |
| Features | |
| Tempered Glass on Four Sides Window | High-quality tempered glass side window allows for clear visuals to inner components |
| Addressable RGB Light Effects: | CSAZ-460B:Addressable RGB light strip in the front and all ARGB light synchronize devices make connections. |
| Allowing the LED button to directly control the ARGB lighting, or switched to be controlled by the motherboard synchronize software. | |
| Available Fan Ports | 1x120mm Fan port in the rear |
| (CSAZ-460B: 1x120mm black fan included) | |
| 3x120mm or 2x140mm Fan ports on the top | |
| Water Cooling | Supports radiators up to 280/360mm in the Front |
| Supports radiators up to 240mm in the Top | |
| Dust Filters: | Removable (magnetic) mesh net on the top, Steel dust filter on bottom of chassis. |
| CSAZ-460B: LED light guide mesh on the front. | |
| Power Supply Support: | Bottom mounted ATX Power Supply |
< -

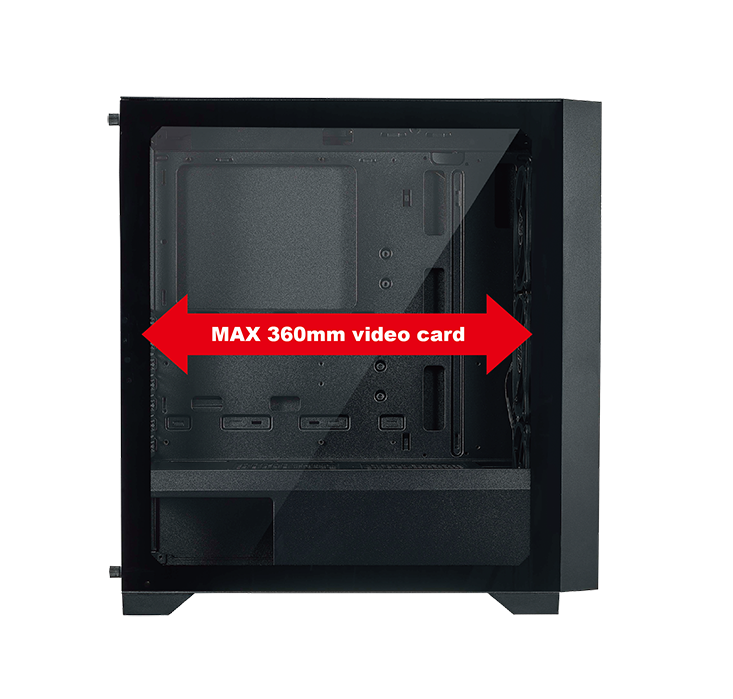

Supports VIDEO cards up to 360mm in length.
-

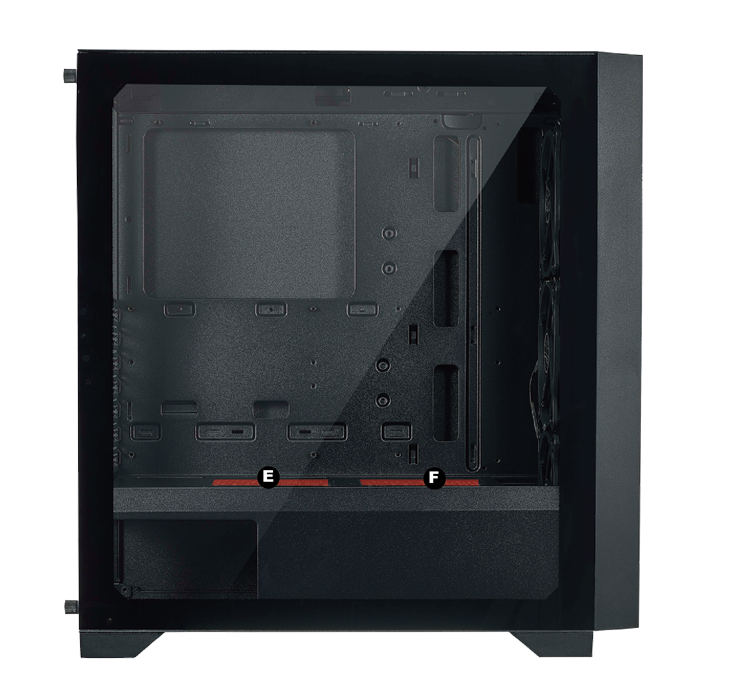

Supports up to 120mm fan x2
(E、F)
< -

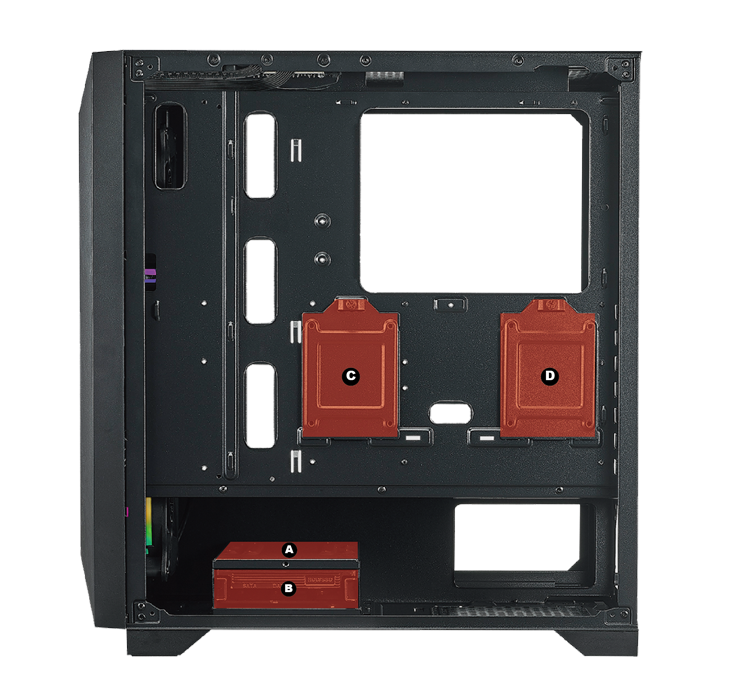

Multifunctional hard disk bracket support 3.5”HDD or 2.5” SSD x 1
(B)
Multifunctional hard disk cage support 3.5”HDD or 2.5” SSD x 1
(A)
2.5" SSD metal tray support 2.5” SSD x 2
(C、D)
-
▪Supports up to 3x120mm or 3x140mm fan
▪Supports up to 360mm water cooling radiator in height.
< -
▪Supports up to 1x120mm fan
< -
▪Supports up to 3x120mm or 2x140mm fan
▪Supports up to 240mm water cooling radiator in length.
-

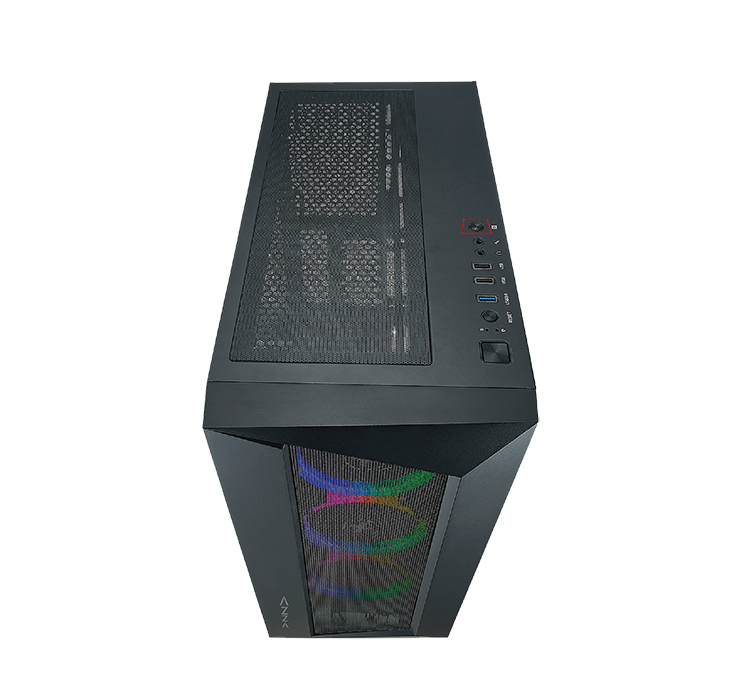

▪Press the LED button to cycle through different RGB lighting modes, controlled by the LED button though the ARGB control board.
▪Hold the LED button for 3 seconds to switch the RGB control function between motherboard RGB software and LED button.
