Photios250
Produktdaten
Abmessungen：532mm x 198mm x 453mm (H x W x D)
Farbe：Black
Produktinformationen
Supports up to 380mm-long VGA cards.
High-quality tempered glass side panel allows for clear visuals to inner components.
Available Fan Ports:
2 x 120mm fan ports on the top
2 x 120mm / 2 x 140mm fan ports in the front (1 x 120mm LED fan installed)
2 x 120mm fan ports on the bottom
1 x 120mm fan port in the rear (installed)
Supports 120mm / 240mm / 280mm water cooling radiator.
Supports max. 210mm-long bottom-mounted power supply.
Cables are hidden behind the pre-drilled motherboard tray to achieve better airflow.
| Model | |
|---|---|
| Model Name | Photios 250 |
| Model Number | CSAZ-250 / CSAZ-250X |
| SPECS | |
| Type | ATX Mid Tower |
| Color | Black (exterior) / Black (interior) |
| Side Panel | Tempered glass side panel with EVA Anti Vibration PAD |
| Max CPU Cooler Height | Up to 155mm |
| Motherboard Compatibility | ATX, Full ATX, Micro ATX |
| Expansion | |
| External 5.25" Drive Bays | 1 |
| Internal 2.5" Drive Bays | Up to 5 |
| Internal 3.5" Drive Bays | Up to 3 |
| Expansion slots | 7 |
| Front Ports | |
| CSAZ-250 | 1 x USB 3.0, 3 x USB 2.0, HD Audio, Mic. |
| CSAZ-250X | 2 x USB 3.0, 2 x USB 2.0, HD Audio, Mic. |
| Cooling System | |
| 120mm Fan | 1 x 120mm red LED front Fan; 1 x 120mm black rear Fan |
| Physical Specs | |
| Dimensions(HxWxD) | 532mm x 198mm x 453mm |
| Weight | 6.3kg (13.89 lbs)s |
| Carton Size (H x W x D) | 525mm x 265mm x 582mm |
Overclock2017/01/14
Azza Photios 250 PC Case Review
FB-Tech2016/12/25
Azza Photios 250 PC Case Review
Gaming Society2017/08/18
Azza Photios 250 PC Case Review
overclock2017/12/14
Azza Photios 250 PC Case Review
Piscomu TV2018/06/15
Azza Photios 250 PC Case Review
-

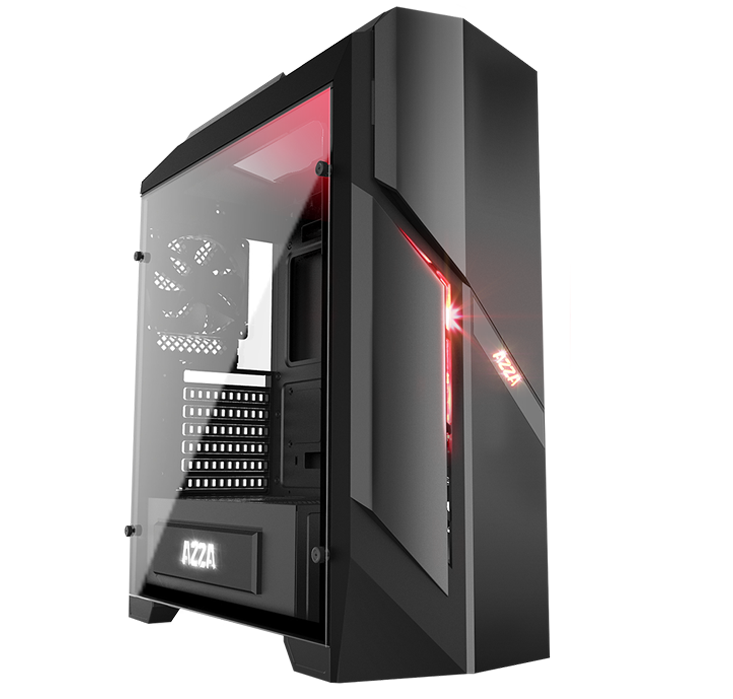

The Photios 250 is designed for those visually-oriented users who care about appearances as much as they do performance.
With its sleek design and side panel made of high-quality tempered glass, the Photios 250 offersa clear view of the PC’s internal components hard at work.
It supports up to three water cooling radiators (120mm/240mm/280mm), as well the longest video cards in the market.
The heat from the power supply is also kept at bay by enclosing the power supply in its own chambered bay, preventing its heat from affecting the rest of the internal components.
-
Supports VGA Cards
up to 380mm in Length.
-

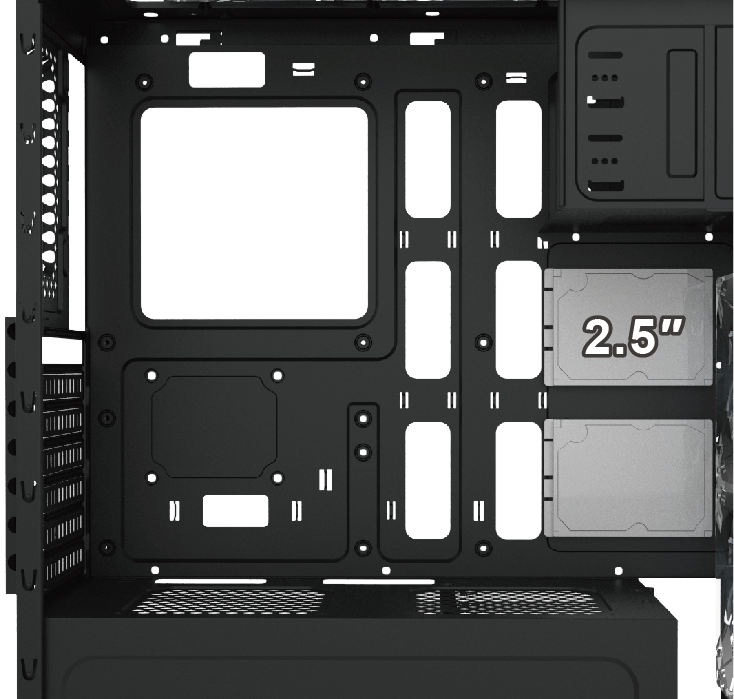

Two 2.5" SSD
Can be installed on the next to the MB.
-

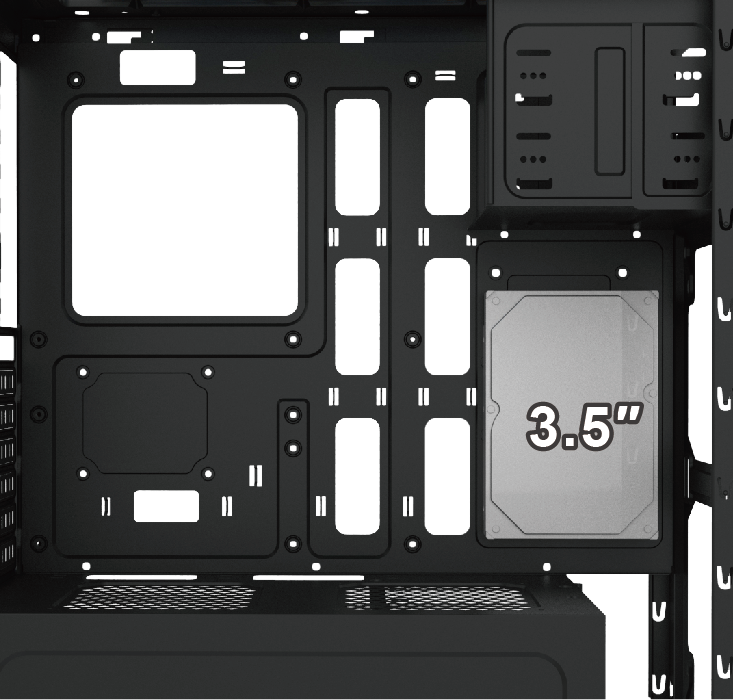

One 3.5" HDD
Can be installed on the next to the MB.
-

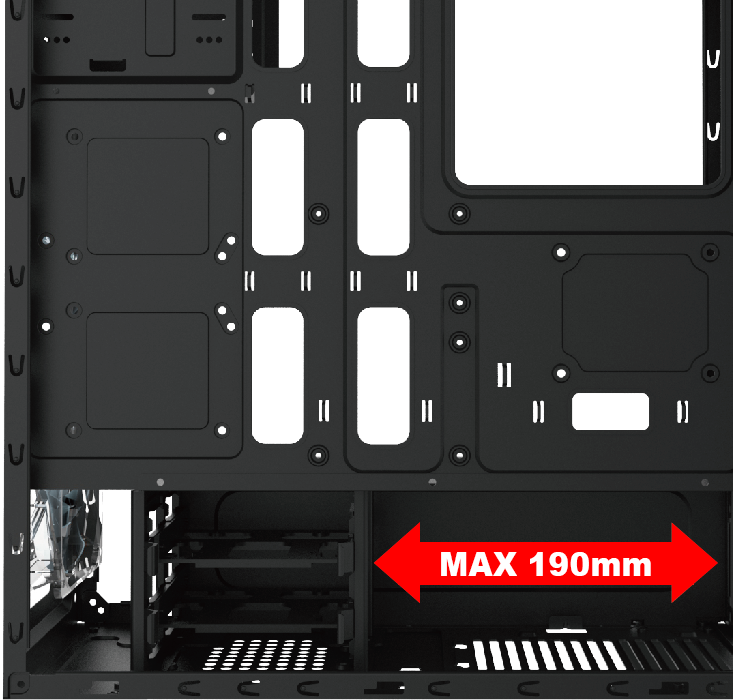

Supports PSUs
up to 190mm in Length.
-

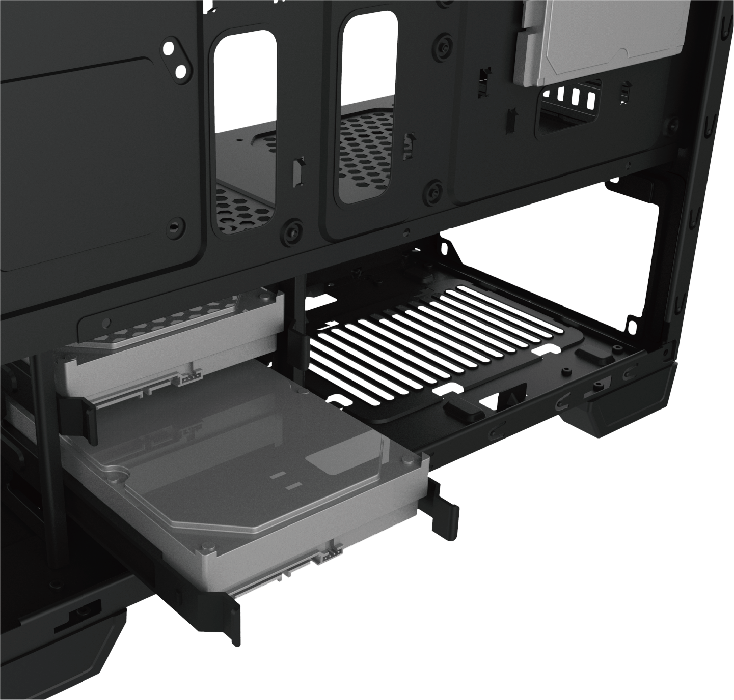

Two Multifunctional Brackets Support
3.5" HDD or 2.5" SSD
