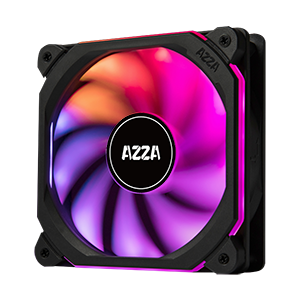

1 X PRISMA DIGITAL RGB FAN 120mm + Digital RF Remote (Optional)
Produktdaten
Abmessungen：120x120x33mm(HxWxD)
Farbe：Black
Parts list：
1 x Prisma digital RGB fan
1 x RF remote
Produktinformationen
▪ATTRACTIVE –With Vibrant Digital RGB lighting and a unique Square design with individually addressable RGB LED diodes (5V), the PRISMA Digital RGB Square Fan is an attractive lighting option to any setup. WS2812B-compliant.
▪ENHANCED COOLING –Our fan blades will improve cooling performance with their unique design.
▪QUIET – Rubber pads are mounted on all four corners of the fan, offering improved performance over standard fans by offering less vibration, less noise, and less turbulence.
▪SYNC DIGITAL RGB – By plugging the AZZA PRISMA digital RGB square fan into a motherboard/lighting controller that is compatible with addressable RGB lights, the lighting and fan speeds can be controlled directly.
| Model Name | Prisma Digital RGB |
| Model Number | FFAZ-12DRGB-011/FFAZ-12DRGB-211 (Include RF Remote) |
| Rating Voltage | DC12V (Fan) DC5V (LED) |
| Rated Voltage | DC6.0-13.8V (Fan) DC4.5-5.3V (LED) |
| Start-up Voltage | DC6V (Fan) (ON/OFF) DC4.5V (LED) (ON/OFF) |
| Rated Currend | Max: 240A (Fan) Max: 1080mA (LED) |
| Life Expectancy | 40000 hrs ,25℃ |
| Bearing Type | Hydro Bearing |
| Fan Speed | 600 RPM |
| Connector | 4PIN PWM |
| 4-1PIN Digital WS2812B RGB:Male & Female | |
| Fan Dimensions | 120x120x33mm |
| Weight | 0.16kg |
< -
Cylindrical Lighting
Instead of a tiny ring of light,why not light up the whole thing?
With a frame constructed of acrylic material, the PRISMA DIGITAL RGB fan allows for Digital RGB lightning to illuminate evenly throughout the entire frame, giving you a clean Digital RGB aesthetic.
-
Silence
Rubber pads are mounted on all four corners of the fans, offering improved performance over standard fans by offering less vibration, less noise, and less turbulence
< -
PRISMA Digital RGB SQUARE Fan Installation For Motherboard
Connecting a strip to an incorrect connector can potentially cause damage to the LED strip, due to the RGB, and Digital RGB connectors providing different voltages .
Our digital RGB devices are WS2812B-compliant. Each fan contains 18 digital/addressable LED diodes. The WS2812B standard supports up to 60 diodes at the maximum for a single header, so please do not daisy-chain more than 3 digital RGB fans together.
