Abmessungen：655mm x 243mm x 598m(H x W x D)
● Reversible motherboard tray can be rotated 180 degrees to orient graphics cards at the top, next to the top fan to enhance the efficiency of heat dissipation.
● An ideal vertical airflow is generated to offer exceptional system cooling: with the power supply installed at thebottom front, 2x140mm stock fans located at the bottom blast cool air upward with the heat exhausted via the 2x230mm top fan.
● Exceptional Cooling System:
2x230mm fans located on the top to exhaust hot air.
2x140mm fans located at the bottom to take in cool air.
2x120mm fans located on theside panel for cooling HDD.
1x120mm fan locate in the rear to exhaust the hot air.
Top Mount Radiator: supports up to 480mm radiator.
Bottom Mount Radiator: support up to 240mm radiator.
● 2x Easy Swap HDD tray (up to 5) for easy, tool-less assembly of HDD.
● Accommodates graphics cards up to 400mm in length.
● Power supply can be located at either front or rear bottom, also supports dual-power supply.

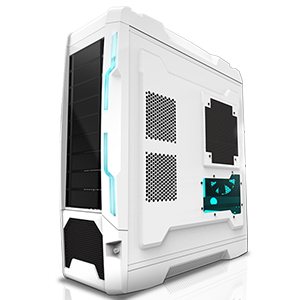

|Model Name||Genesis 9000W|
|Type||ATX Full Tower|
|Side Panel Window||Yes|
|With Power Supply||No|
|CPU Cooler Compatibility||up to 200mm|
|Motherboard Compatibility||XL-ATX,E-ATX, Full ATX, Micro ATX|
|Power Supply Locations||Rear Bottom or Front Bottom, Supports Dual-Power Supply|
|External 5.25" Drive Bays||9|
|Internal 3.5" Drive Bays||5+1(up to 9)|
|Easy Swap 2.5" SSD Slot||2 (up to 5)|
|Easy Swap 3.5" SSD Slot||2 (up to 5)|
|Front Ports||2x USB 3.0, 2xUSB 2.0, e-SATA, HD Audio, Mic|
|230mm Fan||2x230mm Silent Fan (24DBA) on The Top w/Fan Speed Control|
|140mm Fan||2x140mm Silent Fan (19DBA) at Bottom w/Fan Speed Control|
|120mm Fan||1x120mm Fan in Rear|
|Dimensions(HxWxD)||655mm x 243mm x 598mm|
* Optimum cooling for CPU and GPU
* Ideal aerodynamic airflow
* Exceptional cooling system:Total of 7 fans
* Easy SWAP slots for 3.5" HDD & 2.5" SSD
* Maximum capacity water cooling
* Supports lengthiest of graphics cards
* Easy CPU cooler installation
Max Capacity Water Cooling
The array of attentive features includes its capacityto house a 480mm water cooling radiator, the longestavailable in the industry.
Reversible Motherboard Tray
If the motherboard tray is placed in reverse, the ventilator is now in close proximity to your VGA card.
Supports longest VGA card
It is the first in its class to hold VGA cards up to 400mm.
Maximum compatibility with themotherboard allows for installation of XL-ATX, E-ATX, Full ATX and Micro ATX.
Support Dual Power Supply
Power supply can be located at either thefront or rear bottom.
Also supports dual-power supply.
Ideal Aerodynamic Airflow
The Genesis 9000 is engineered with the power supply installed at the bottom front so that the 2x140mm mid- and rear-bottom fans can supply gusts of wind blasting upward, removing excess heat via the top 2x230mm fan.
This design generates an uninterrupted vertical airflow that allows air to flow in a straight line from bottom to top, providing optimum cooling for the entire system.
