Abmessungen：342mm x 112mm x 440mm (HxWxD)
￭1x120mm LED fan on the side, takes in the cool air.
￭Supports regular ATX power supplies. No need to use specialized TFX or 1U power supplies.
￭Supports up to 2x120mm water cooling radiators.
￭Accommodates VGA cards up to 280mm.
￭1xUSB 3.0, 2xUSB 2.0.
￭A cut-off hole is prepared for installing CPU cooler with ease, eliminating the need for prior removal of the motherboard.
|Model Name||Z 103|

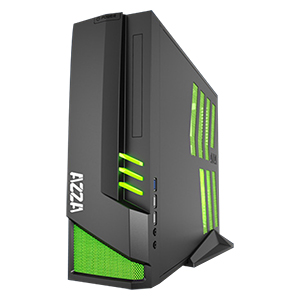

|Type||Mini-ITX Gaming Case|
|Side Panel Window||Yes|
|With Power Supply||No|
|Motherboard Compatibility||Mini ITX|
|Power Location||Front Bottom|
|External 5.25" Drive Bays||1|
|Internal 3.5" Drive Bays||2|
|Front Ports||1x USB 3.0, 2xUSB 2.0, HD Audio|
|120mm Fan||1x120mm LED fan on side|
|Dimensions(HxWxD)||13.5"x4.4"x17.3" (342mm x 112mm x 440mm HxWxD)|
Newegg Studios 2014/09/21
Azza Z 103 PC Case Review
* Compatible with regular PS2 ATX power supply
* Support up to 280mm logo VGA card
* Support up to 2x120mm water cooling system
* 1x120mm side LED fan provide excellent cooling
Supports standard-size ATX power supplies up to 170mm long and VGA card 280mm long.
Even with its slim size, it is still one of the only mini-ITX cases that can support an average-sized ATXpower supply.
Supports up to 2x120mm water cooling systems and 1x120mm side LED fan.
The mesh side panel is not only for looks, but it allows for an increase in air intake that goes together perfectly with the LED fans on the side that provide cooling for the CPU. It is a perfect system for compact gaming, HTPC or Steam Box builds.
