Produktinformationen
▪Supports up to 340mm VGA cards.
▪High-quality transparent side panel allows for clear visuals to inner components.
Available Fan Ports:
2x120mm fan ports on the top
2x120mm / 2x140mm fan ports in the front
1x120mm fan port in the rear
▪Supports 240mm water cooling radiator.

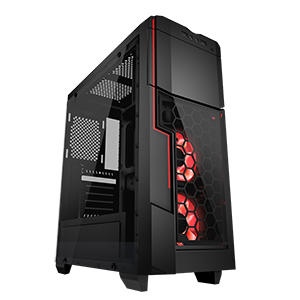

Model Name | Crimson 211 |
Model Number | CSAZ-211 |
Specs | |
---|---|
Type | ATX Mid-Tower |
Color | Black (exterior)/Black (interior) |
Side Panel | Flat transparent side acrylic panel |
Max CPU Cooler Height | Up to 155mm |
Max VGA Card Length | Up to 340mm |
Water cooling radiator | Front: up to 240mm |
Motherboard Compatibility | ATX, Micro ATX(The width of main board doesn′t exceed 220mm.) |
Power Supply Locations | Rear Bottom |
Expansion | |
External 5.25" Drive Bays: | 1 |
Internal 2.5" Drive Bays | Up to 3 |
Internal 3.5" Drive Bays | Up to 3 |
Expansion slots | 7 |
Front Ports | 1 x USB 3.0, 1 x USB 2.0,HD Audio, Mic. |
Cooling System | 2x120mm Red LED fan in front |
Available Fan Ports | |
Front | 2x120mm |
Top | 2x120mm / 2x140mm |
Rear | 1x120mm |
Physical Specs | |
Dimensions(HxWxD) | 480x197x427mm / 18.9" x 7.8" x 16.8" inch |
Weight | 4.0Kg / 9.0 lbs |
Carton Size (H x W x D) | 500x245x530mm |
OverclockZoneTV 2018/1/9
Azza Crimson 211 PC Case Review
-
The Crimson 211 is a very honest case, being simple yet effective. With a (flat transparent side acrylic panel), the case allows for easy viewing of the inner components.
The Crimson 211 comes with two red LED fans on the front, providing exceptional airflow and cooling, while adding to the case’s aesthetics. The Crimson 211 supports 120mm and 240mm water cooling radiators. Supporting the longest video cards in the market, up to 340mm long, the Crimson 211 is extremely versatile.
The power supply is housed inside its own isolated chamber, preventing the residual heat from the power supply from affecting the other components.
-
Supports VGA cards
up to 340mm in length.
-
Support 2.5”Devices X3
(D、E、F)
-
Support 3.5”HDD X3
(A、B、C)
-
Supports two 120mm fan
up to 240mm water cooling radiator in height.
-
Supports one 120mm fan
up to 120mm water cooling radiator in height.
-
Supports two 120mm fan
up to120mm water cooling radiator in length.
