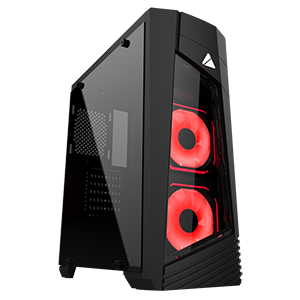

Blaze 231

Produktdaten

Abmessungen:480mm x 197mm x 427mm (H x W x D)

Farbe:Black

Produktinformationen

▪Supports up to 340mm long video card.

▪Left Side Panel:

Transparent acrylic for CSAZ-231, tempered glass for CSAZ-231G

Available Fan Ports:

2x120mm fan ports on the top

2x120mm or 2x140mm fan ports in the front

( 2x120mm PRISMA-RGB Fan included )

1x120mm fan port in the rear

▪Supports up to 240mm water cooling radiator.

Model
Model Name Blaze 231
Model Number CSAZ-231 / CSAZ-231G
Specifications
Type ATX Mid-Tower
Color Black (exterior)/Black (interior)
Side Panel Window:CSAZ-231 Transparent Acrylic with rubber mounts
Side Panel Window:CSAZ-231G Transparent Glass with rubber mounts
Max CPU Cooler Height Up to 155mm
Max VGA Card Length Up to 340mm long video card
Power Supply Not included
Motherboard Compatibility ATX, Micro ATX
Expansion
External 5.25" Drive Bays: 0
Internal 2.5" Drive Bays Up to 3
Internal 3.5" Drive Bays Up to 3
Expansion slots 7
Top Ports 1 x USB 3.0, 1 x USB 2.0,HD Audio
Physical Specs
Dimensions(HxWxD) 480mmx197mmx427mm / 18.9 x 7.8 x 16.8 inches
Weight:CSAZ-231 3.75Kg / 8.3 lbs
Weight:CSAZ-231G 4.8Kg /10.6lbs
Features
RGB Light Effects RGB light on the front.All RGB light devices controlled by motherboard
Left Side Panel Transparent acrylic for CSAZ-231, tempered glass for CSAZ-231G
Available Fan Ports 2x120mm ports on the Top
2x120mm or 2x140mm ports in the Front
(2x120mm PRISMA-RGB Fan included)
1x120mm Fan port in the rear
Dust Filters Removable(Magnetic) dustproof PVC Net on the bottom of chassis
Water Cooling Supports radiators up to 240mm in front
Isolated Chamber Power supply is housed inside its own isolated chamber, preventing its heat from affecting other components
Easy Installation Cooler A pre-cut hole for easy installation of CPU Cooler, eliminating the need to remove the motherboard

000 1/1/1

Azza PC Case Review


  • Minimalistic designs are in. The Blaze 231 is a minimalist’s case and provides all the necessary features for an awesome gaming rig.
    With a transparent side-panel, you can show off your rig with pride! With water cooling support and exceptional cable management, the Blaze 231 offers great airflow to help keep your rig cool for those intense gaming sessions.
    Supporting some of the longest video cards in the market at 370mm, as well as compatibility with various motherboard sizes, the Blaze 231 is diverse enough to fit a variety of different setups.
    Several red led fans are included, further enhancing airflow and giving the case a custom look. While it may not have all the bells and whistles, it comes with all you need to create an amazing gaming setup. Sometimes, simpler is better!

<

  • ‧Supports Video cards
    up to 340mm in length.


  • ‧Support 2.5" Devices x3
    (D、E、F)

<

  • ‧Support 3.5" HDD x3
    (A、B、C)


  • Supports up to 2x120mm or 2x140mm fan
    up to 240mm water cooling radiator in height.

<

  • Supports up to 2 x 120mm fan
    Up to 120 mm water cooling radiator in length.


  • Supports 1x120mm fan
    up to 120 mm water cooling radiator in height.
