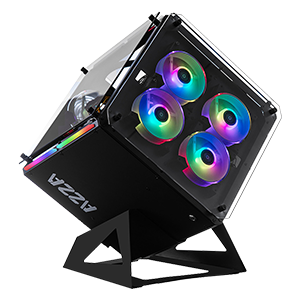

Cube 802


Abmessungen:350mm x 350mm x 350mm (H x W x D)



▪Supports up to 280mm long video card.

▪Available Fan Ports:

4x120mm ports in the front

(4xHurricane II Digital RGB Fan included for model CSAZ-802F only)

1x120mm port in the rear

(1xHurricane II Digital RGB Fan included for model CSAZ-802F only)

▪Supports radiators up to 240mm in the Front

Model Name Cube 802
Model Number CSAZ-802/CSAZ-802F
Type ATX、ITX Full Tower
Color Black (exterior)/Black (interior)
Side Panel Window Left、Right、Top side of panel : Tempered Glass With Rubber Mounts
Max CPU Cooler Height Up to 165mm
Max video Card Length Up to 280mm long video card
Power Supply Not Included
Motherboard Compatibility ATX、Micro ATX、Mini ITX
External 5.25" Drive Bays: 0
Internal 2.5" Drive Bays Up to 2
Internal 3.5" Drive Bays Up to 2
Expansion slots 7
Light Effects
Digital RGB Light Effects(both variants come with digital RGB light strips) All digital RGB light strips are controlled by RF remote. For model CSAZ-802F, up to 5 digital RGB fans can be controlled by the motherboard. For model CSAZ-802F, please plug all digital RGB fans into an RGB 5V connector on a WS2812B-compliant motherboard. The digital RGB fans can then be controlled using the motherboard's native lighting control software.If you do not have a WS2812B-compliant motherboard that supports digital RGB lights, then you can connect the digital RGB fans into the included RF receiver instead, and control them using the included RF controller. To prevent the connector on a WS2812B motherboard or the RF receiver from shorting out, please do not daisy-chain more than 5 digital RGB fans together.
Physical Specs
Dimensions(HxWxD) 350x350x350mm / 13.8x13.8x13.8 inches
Weight 13.8kg /30.4lbs
Tempered Glass on Three Sides Window High-quality tempered glass side window allows for clear visuals to inner components
Available Fan Ports 4x120mm ports in the front
(4xHurricane II Digital RGB Fan included for model CSAZ-802F only)
1x120mm port in the rear
(1xHurricane II Digital RGB Fan included for model CSAZ-802F only)
Water Cooling Supports radiators up to 240mm in the Front
Isolated Chamber Dual-chamber design, Power Supply is housed in one of the chamber bottoms, preventing its heat from affecting other components.
Easy Installation Cooler A pre-cut hole for easy installation of CPU Cooler, eliminating the need to remove the motherboard
Accessories 1x RF Connector for model CSAZ-802
2x RF Connectors for model CSAZ-802F
1x RF Remote Controller
1x Designed Case Stand
1x Fan Metal Protection Net Grill

000 1/1/1

Azza PC Case Review

  • It’s out with the old, and in with the new. And cubes are now in. The Cube 802 is an aesthetically pleasing and revolutionary case with its propped-up cube design. With beautiful RGB lighting and a sleek outer casing, the Cube 802 is sure to please anyone. With high-quality tempered glass side panels on three of its faces, the case allows you to show off your awesome inner components to complement the already-attractive aesthetic of the case. However, form over function does not apply to this case, as the Cube 802 is also fully functional. It offers exceptional support for water cooling, as well as plentiful fan ports for increased cooling performance. The Cube 802 features a dual-chamber design.
    Instead of cramming all your components into a single chamber and having all their residual heat affecting each other, you can now install them into separate chambers to help dissipate the heat. You can install your power supply in one chamber, and your video card in another, as these two generate a lot of heat already. Cable management is a breeze, as cables can be safely tucked away behind the motherboard, for even better cooling.
    The Cube 802 supports video cards up to 280mm long, which can accommodate most video cards on the market. With both form and function in its toolbox, the Cube 802 is an exceptional offering for any gamer.

  • Hurricane II Digital RGB Fan Installation For Motherboard
    Connecting a strip to an incorrect connector can potentially cause damage to the LED strip, due to the RGB, and Digital RGB connectors providing different voltages .
    Our digital RGB devices are WS2812B-compliant. Each fan contains 18 digital/addressable LED diodes. The WS2812B standard supports up to 60 diodes at the maximum for a single header, so please do not daisy-chain more than 3 digital RGB fans together.
