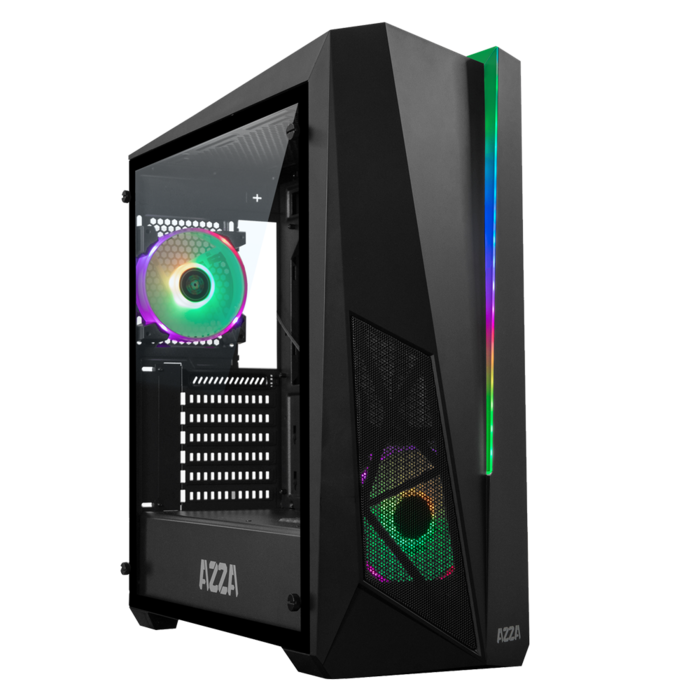

Thor 320 DH

Produktdaten

Abmessungen：538mm x205mm x 465mm (H x W x D)

Farbe：Black

Digital RGB light effects：

‧2x AZZA HURRICANE II Digital RGB fan

‧Digital RGB LED front panel、Digital RGB LED top panel

‧All Digital RGB light effects controlled by Digital RGB RF Remote

Produktinformationen

Eigenschaften Technische Daten Review

‧Supports up to 380mm Video cards.

‧High-quality tempered glass side panel allows for clear visuals to inner components.

Available Fan Ports:

3x120mm or 2x140mm fan ports on the top

3x120mm or 2x140mm fan ports in the front

1x120mm Hurricane II Digital RGB fan in the front (installed)

1x120mm Hurricane II Digital RGB fan in the rear (installed)

‧Supports up to 360mm water cooling radiator.

Model
Model Name	Thor
Model Number	CSAZ-320DH
Specifications
Type	ATX Mid-Tower
Color	Black (exterior)/Black (interior)
Side Panel	Tempered Glass With Rubber Mounts
Max CPU Cooler Height	Up to 155mm
Power Supply	Not Included
Motherboard Compatibility	ATX, Micro ATX
Expansion
External 5.25" Drive Bays:	0
Internal 2.5" Drive Bays	Up to 6 (2 with metal tray)
Internal 3.5" Drive Bays	Up to 2
Expansion slots	7
Cooling System
Fans Installed	Front 1x120mm AZZA HURRICANE II Digital RGB fan, Rear 1x120mm AZZA HURRICANE II Digital RGB fan
Physical Specifications
Dimensions(HxWxD)	538x205x465mm / 21.2x8.1x18.3 inch
Weight	8.01 kg / 17.7 lb
Features
Digital RGB Light Effects	Digital RGB Light on Front and Top panels, 2x120mm Digital RGB fans All Digital RGB light devices controlled by Digital RGB RF Remote
Max VGA Card Length	Supports up to 380mm long VGA card
Tempered Glass Side Window	High-quality tempered glass side window allows for clear visuals to inner components
Available Fan Ports	3x120mm or 2x140mm ports on the Top
	3x120mm or 2x140mm ports in the front
	(1x120mm AZZA Hurricane II Digital RGB Fan included)
	1x120mm Fan port in the rear
	(1x120mm AZZA Hurricane II Digital RGB Fan included)
Dust filters	Dustproof PVC Net on the front, top and bottom of Chassis
Water Cooling	Supports radiator up 360mm on top/280mm in front
Isolated Chamber	Power supply is housed inside its own isolated chamber, preventing its heat from affecting other components
Easy Installation Cooler	A pre-cut hole for easy installation of CPU Cooler, eliminating the need to remove the motherboard
Carton Size (HxWxD)	537x272x605mm

000 0/0/0

Azza Thor 320 DH PC Case Review

The Thor 320DH is the hottest new case in our lineup. With a sleek and sturdy tempered glass panel, the case allows for easy viewing of the inner components.
For those Digital RGB fanatics, the Thor 320DH includes two of our AZZA Digital RGB fans, and Digital RGB strip on the front panel and top panel, and AZZA logo with silk printing on the power supply chamber, all fully customizable, allowing you to make this case truly yours. All Digital RGB light devices are controlled by the Digital RGB RF Remote.
The Thor 320DH supports a 360mm water cooling radiator on the top, as well as a 280mm one on the front. Removable (magnetic) dustproof nets are located on the front and top panel, with an iron net on the bottom of the chassis.
The Thor 320DH supports the longest video cards in the market, up to 380mm long. The power supply is housed inside its own isolated chamber, preventing the residual heat from the power supply from affecting the other components.
