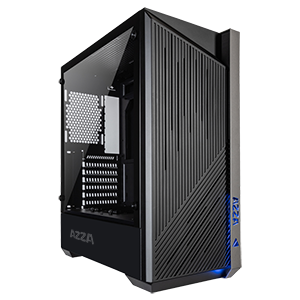

RAVEN 420

PRODUCT SPECIFICATIONS

DIMENSIONS:480mm x 205mm x 425mm (H x W x D)

COLOR:Black

PRODUCT INFORMATION

‧Supports up to 370mm long video card.

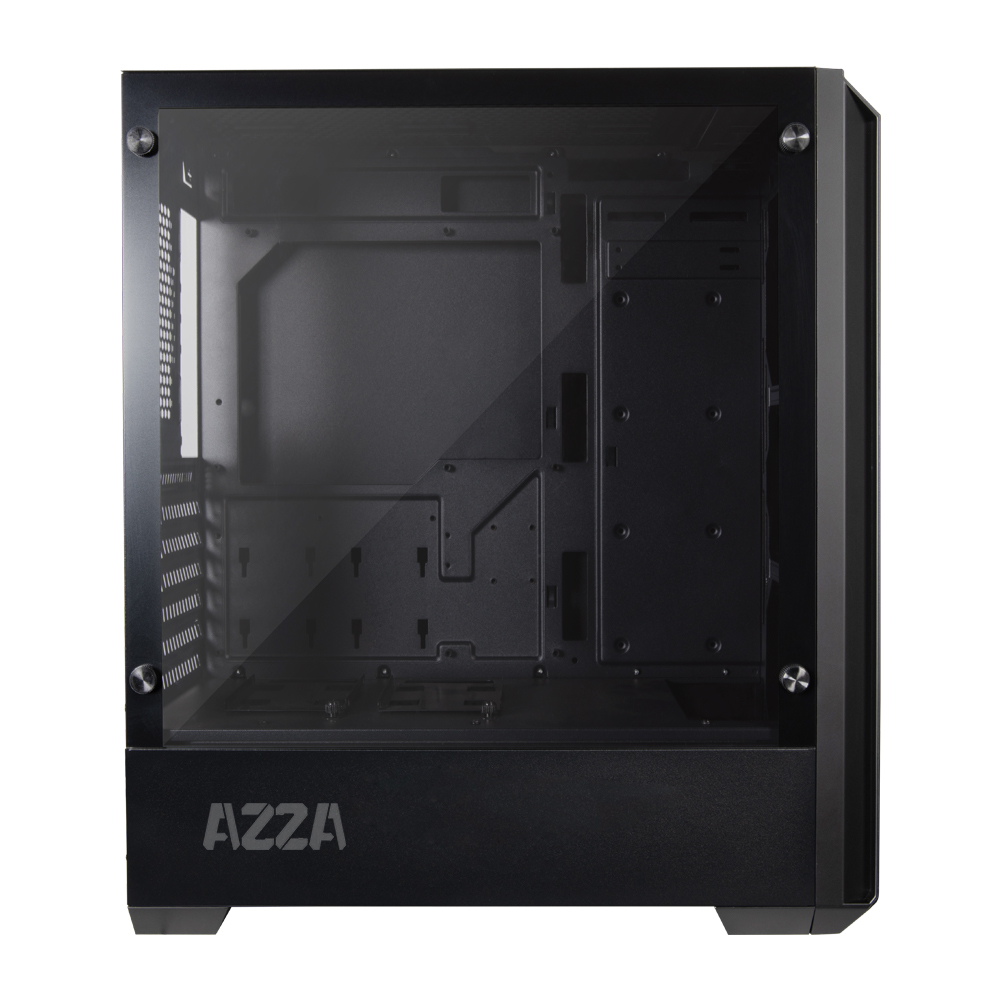

‧High-quality tempered glass side panel allows for clear visuals to inner components.

‧Available Fan Ports:

3x120mm or 2x140mm Fan ports in the front

2x120mm or 2x140mm Fan ports on the top

1x120mm Fan port in the rear

‧Supports radiators up to 240mm in the Front and up to 240mm on the Top

‧Model options depending on the matching fan difference.

Model
Model Name RAVEN 420
Model Number CSAZ-420DF1 /CSAZ-420LF/ CSAZ-420F / CSAZ-420
Specifications
Type ATX Mid Tower
Color Black (exterior)/Black (interior)
Side Panel Window Left Side panel: Tempered Glass with rubber mounts
Max CPU Cooler Height Up to 155mm
Max video Card Length Up to 370mm long video card
Power Supply Not Included
Motherboard Compatibility ATX、Micro ATX
Expansion
External 5.25" Drive Bays: 0
Internal 2.5" Drive Bays Up to 6
Internal 3.5" Drive Bays Up to 2
Expansion slots 7

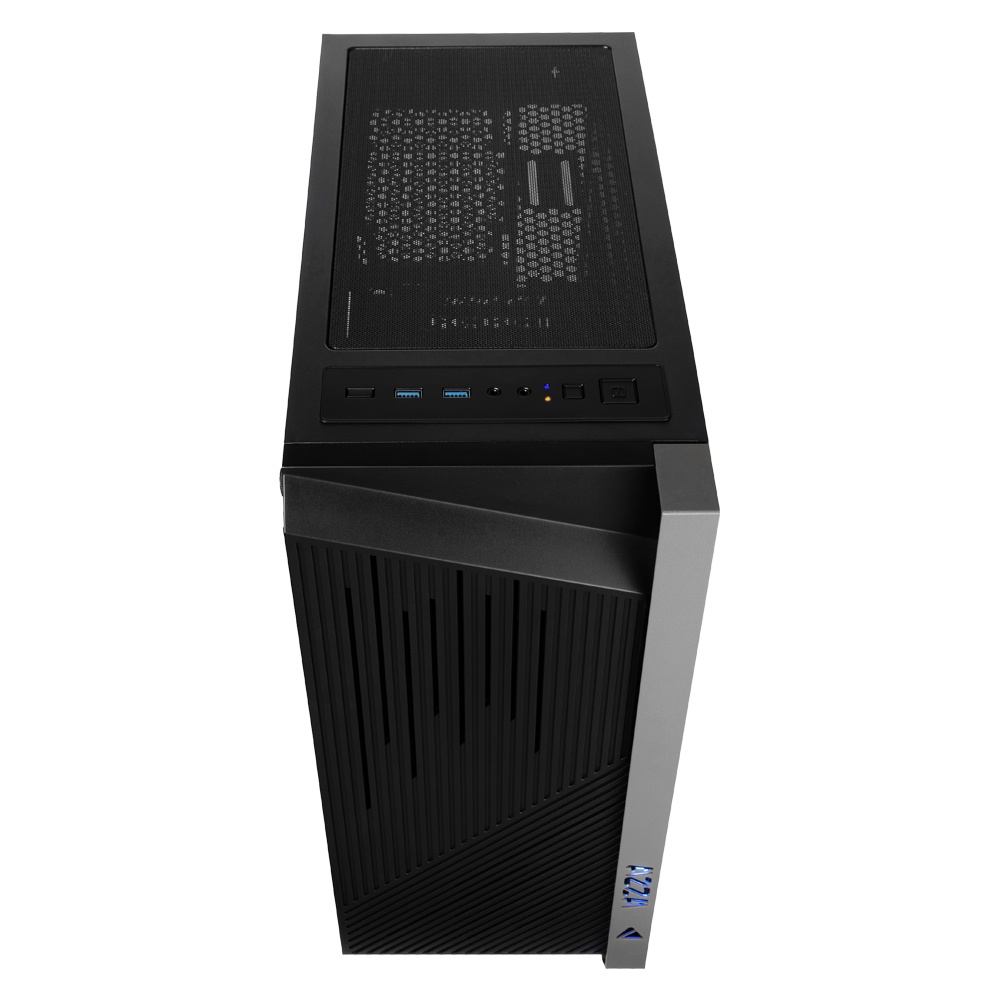

Top Ports Power button, reset button, HD Audio, USB 3.0 x 2
Physical Specifications
Case Dimension (HxWxD) 480x205x425mm/ 18.9x8.1x16.7 inches
Weight 6kg /13.2lbs
Features

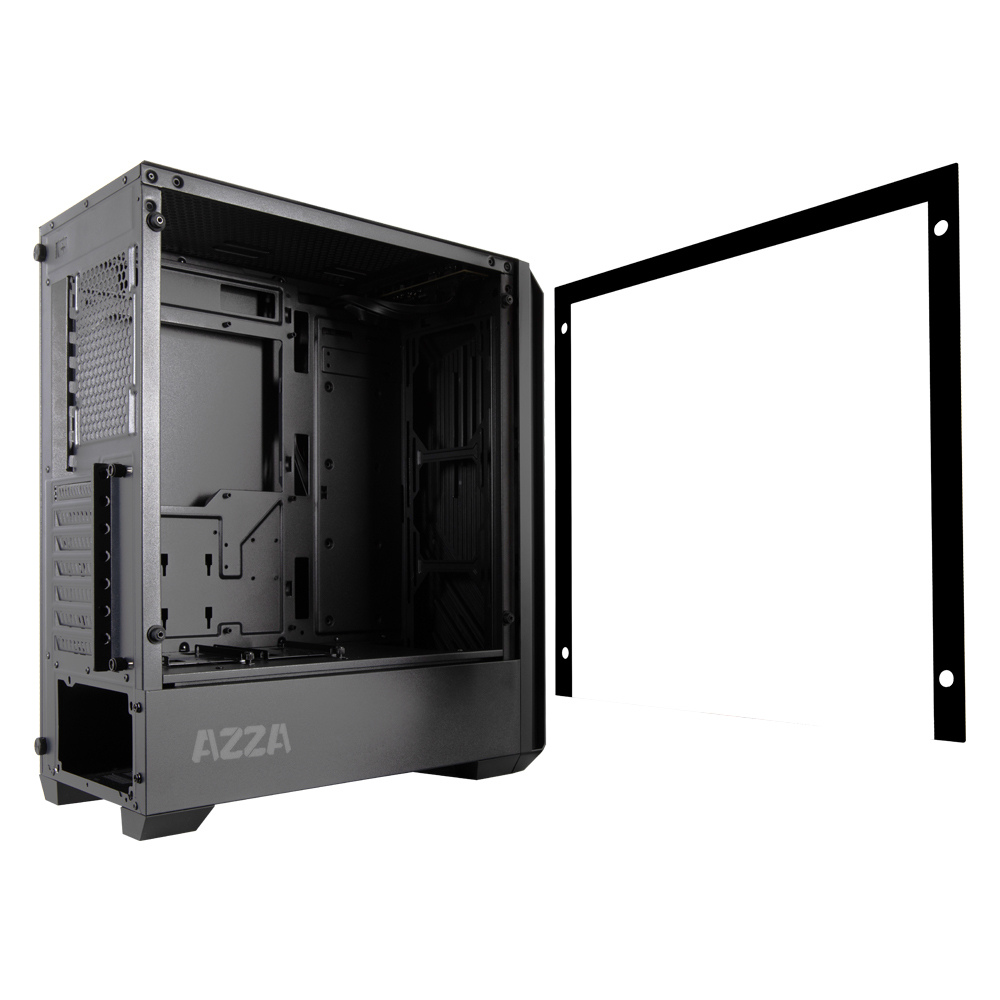

Tempered Glass Sides Window High-quality tempered glass side window allows for clear visuals to inner components
Addressable RGB Light Effects(CSAZ-DF1 only) Addressable RGB light fan in the rear. All Addressable RGB light devices sync with the motherboard, allowing the motherboard software to directly control the lighting.
Available Fan Ports 3x120mm or 2x140mm Fan ports in the front
2x120mm or 2x140mm Fan ports on the top
1x120mm Fan port in the rear
The available fan included CSAZ-420DF1:Digital RGB fan
CSAZ-420LF:LED Fan
CSAZ-420F:Front - 1 x Black fan ; Rear - 1 x Black fan
CSAZ-420 :Case only
Water Cooling Supports radiators up to 240mm in the Front
Supports radiators up to 240mm on the Top
Dust filters Removable (magnetic) dustproof net on the top, iron net on bottom of chassis.
Power Supply Support Bottom mounted ATX Power Supply

000 1/1/1

Azza PC Case Review

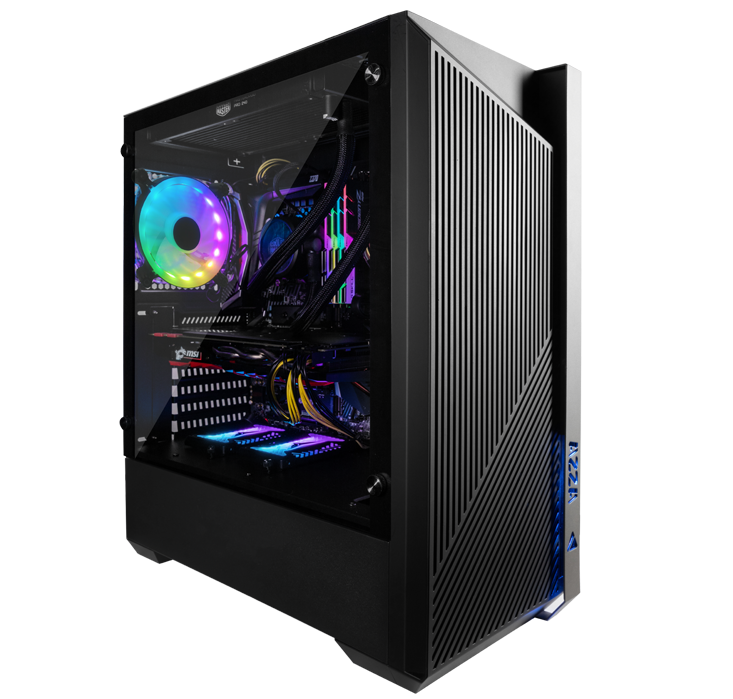

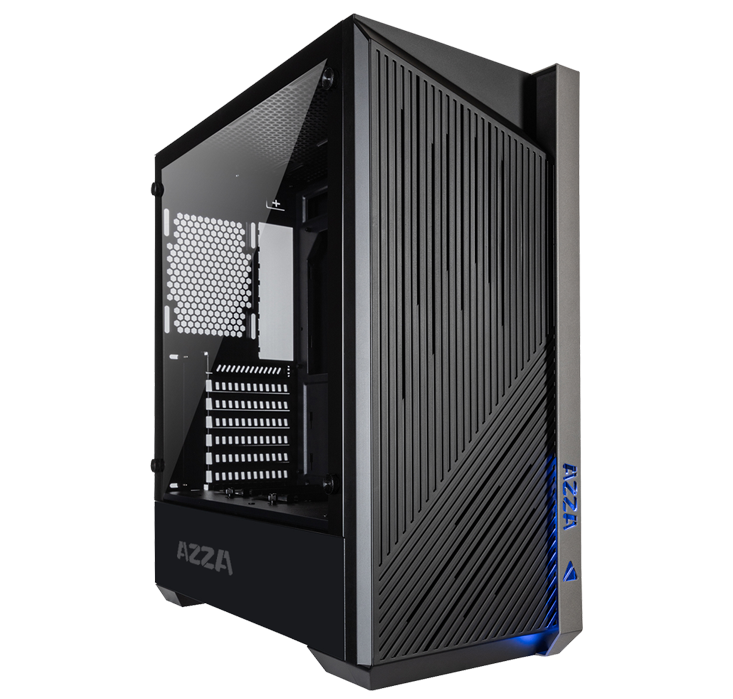

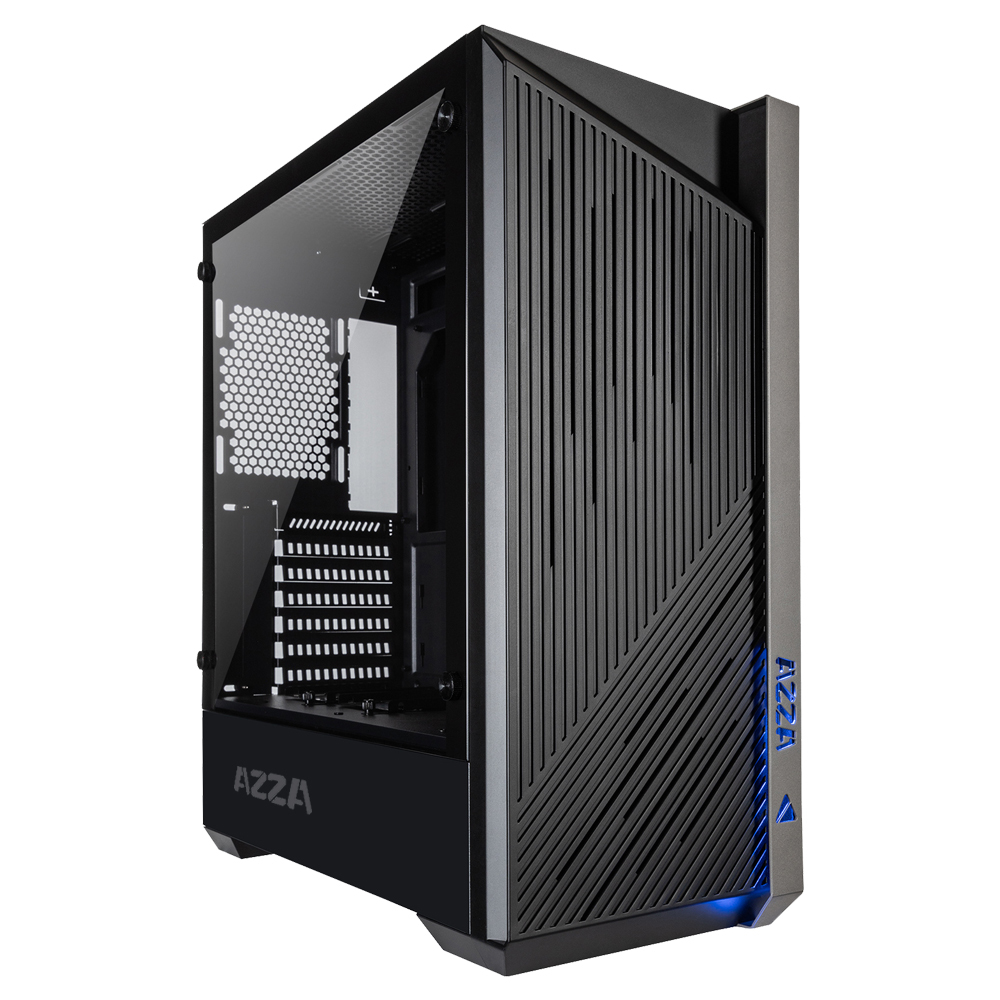

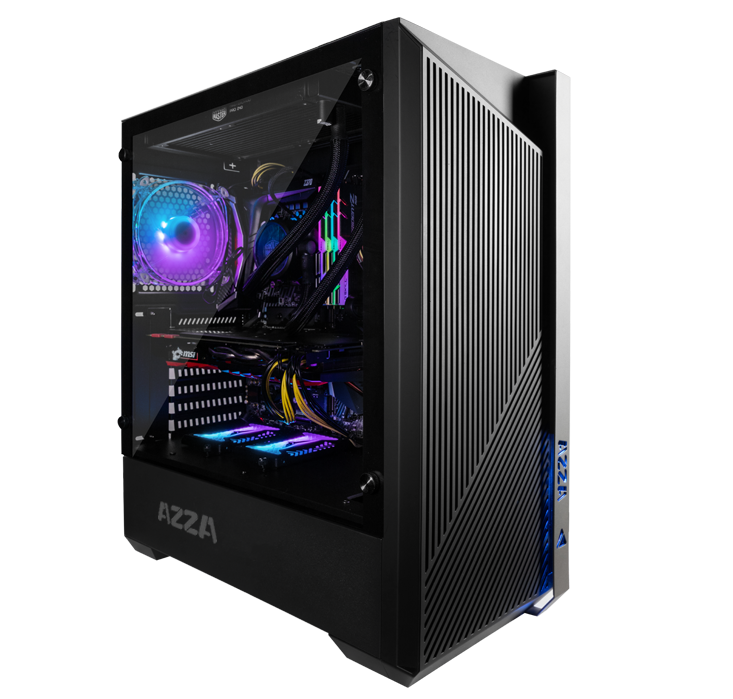

  • As black as a raven, the Raven 420 is the newest addition to our mid-tower lineup.
    This case offers everything you need for a variety of builds, supporting ATX and micro ATX motherboards.
    It can support some of the longest video cards on the market, up to 370mm long, so it is able to accommodate almost any build you throw at it.
    With a high-quality tempered glass side panel, you can show off your aesthetic inner components.
    With water cooling support up to 240mm on the front and 240mm on the top, you can be sure that this case will fit all of your cooling needs.

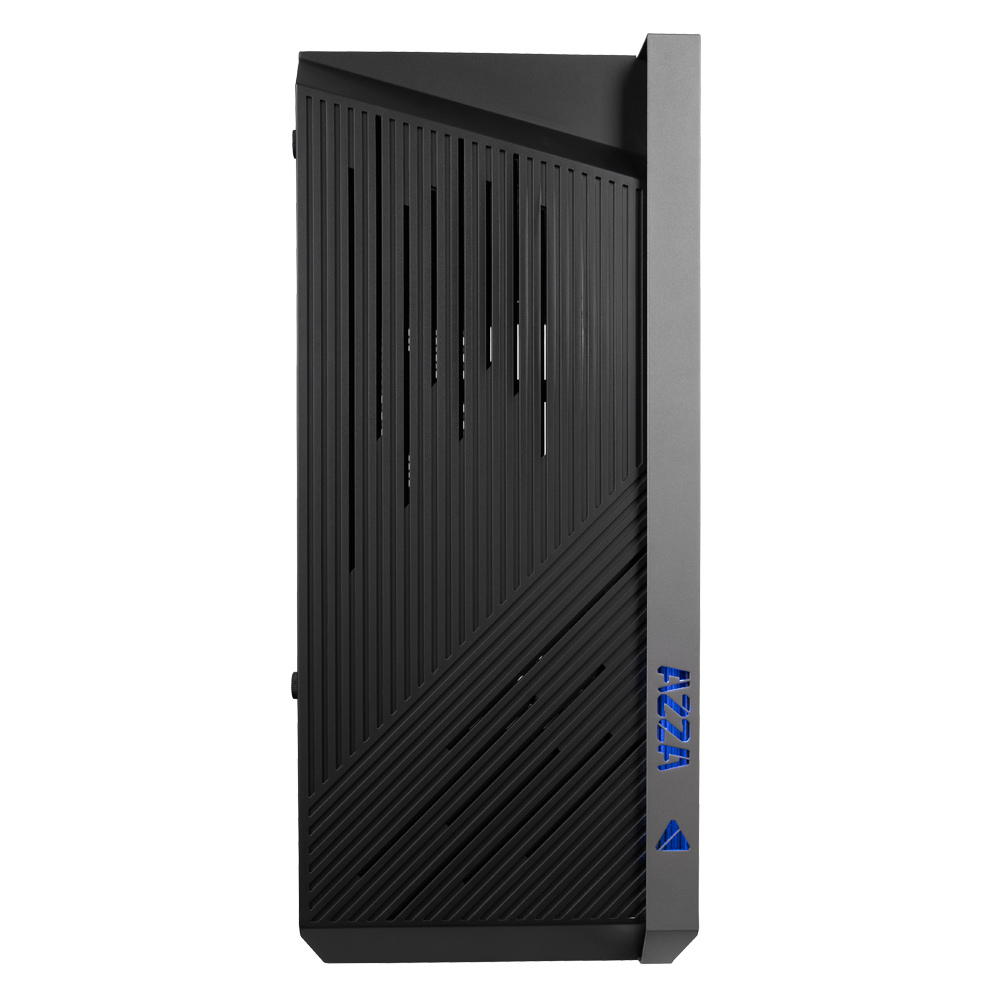

    The simple black design with the metal finish on the front gives a unique and modern aesthetic, and is ideal for those looking for a case that isn’t too loud in its appearance.

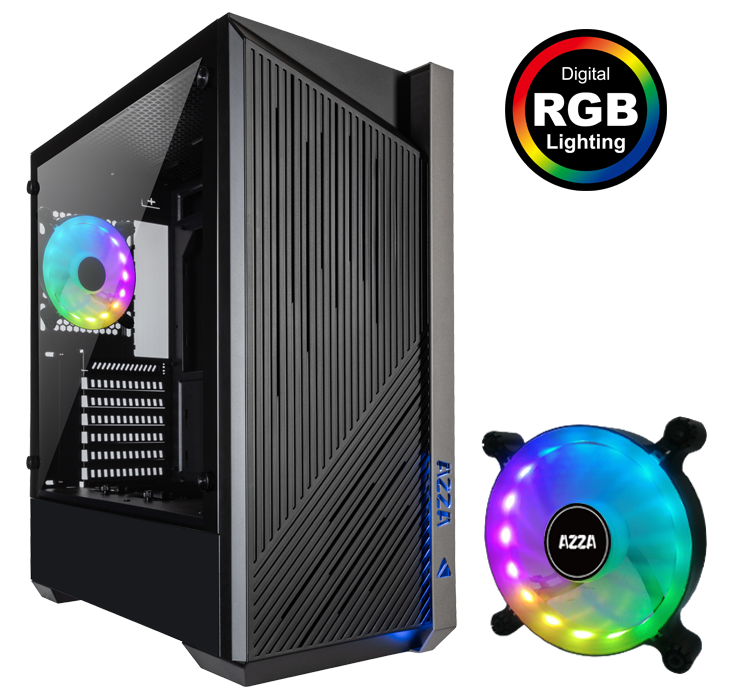

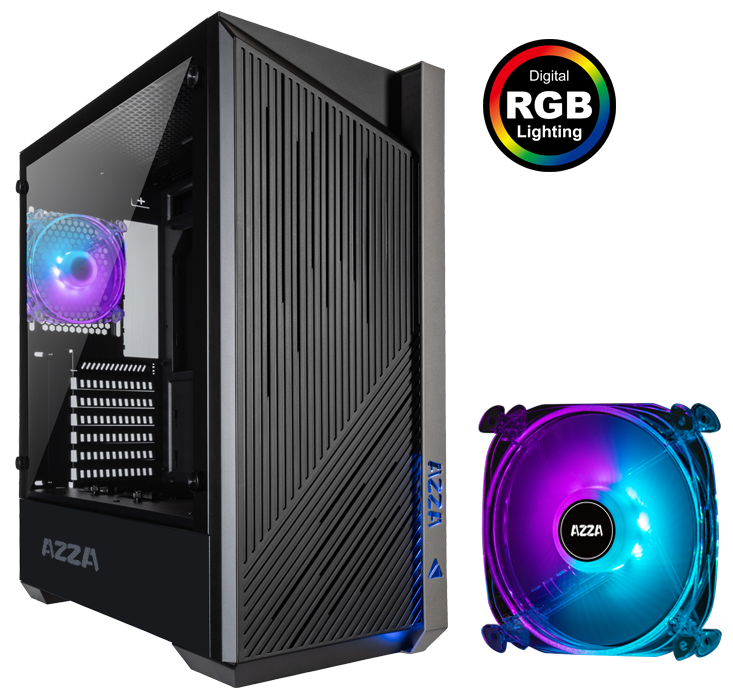

  • Option1: CSAZ-420DF1
    ( Raven 420 chassis with 120mm Digital RGB fan)
    Digital RGB fan:
    Connect with compatible digital RGB devices or compatible digital RGB m otherboard.

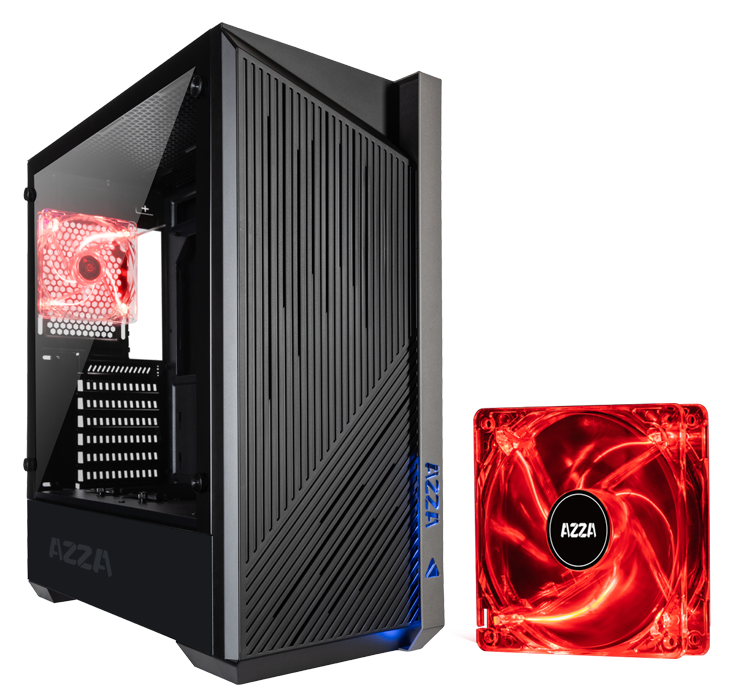

  • Option2: CSAZ-420LF
    ( Raven 420 chassis with 120mm Red Led fan)
    Red Led fan:
    Connect with Power Supply.
    Molex connector.

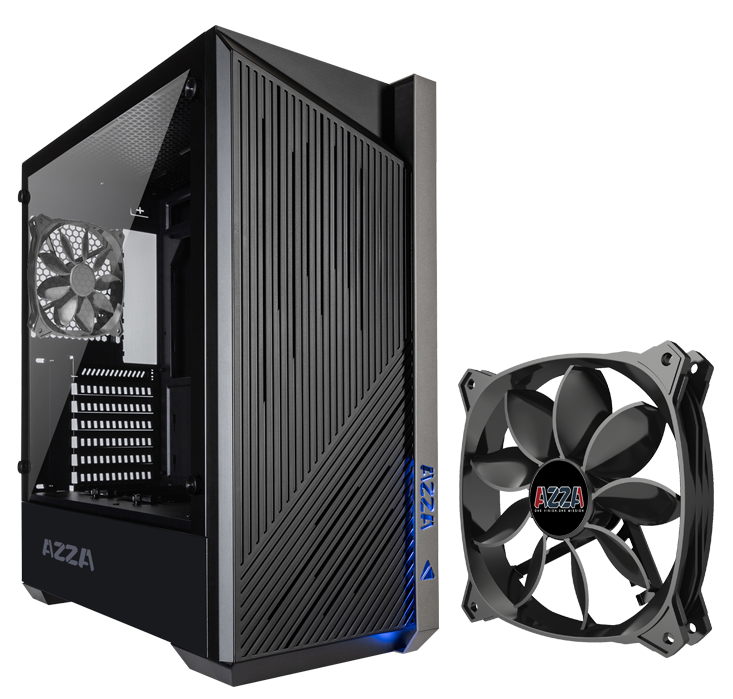

  • Option3: CSAZ-420F
    ( Raven 420 chassis with 120mm Black fan)
    Black fan:
    Connect with Power Supply.
    Molex connector.


  • Option4: CSAZ-420
    ( Raven 420 chassis without fan)
    Black fan:
    make what kind of Raven 420 you like, just built it.

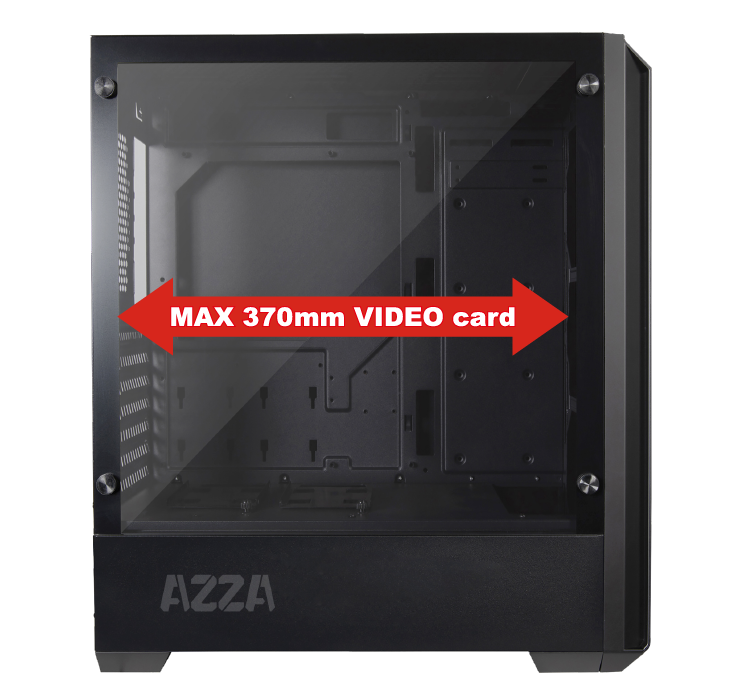

  • Supports VIDEO cards
    up to 370mm in length.

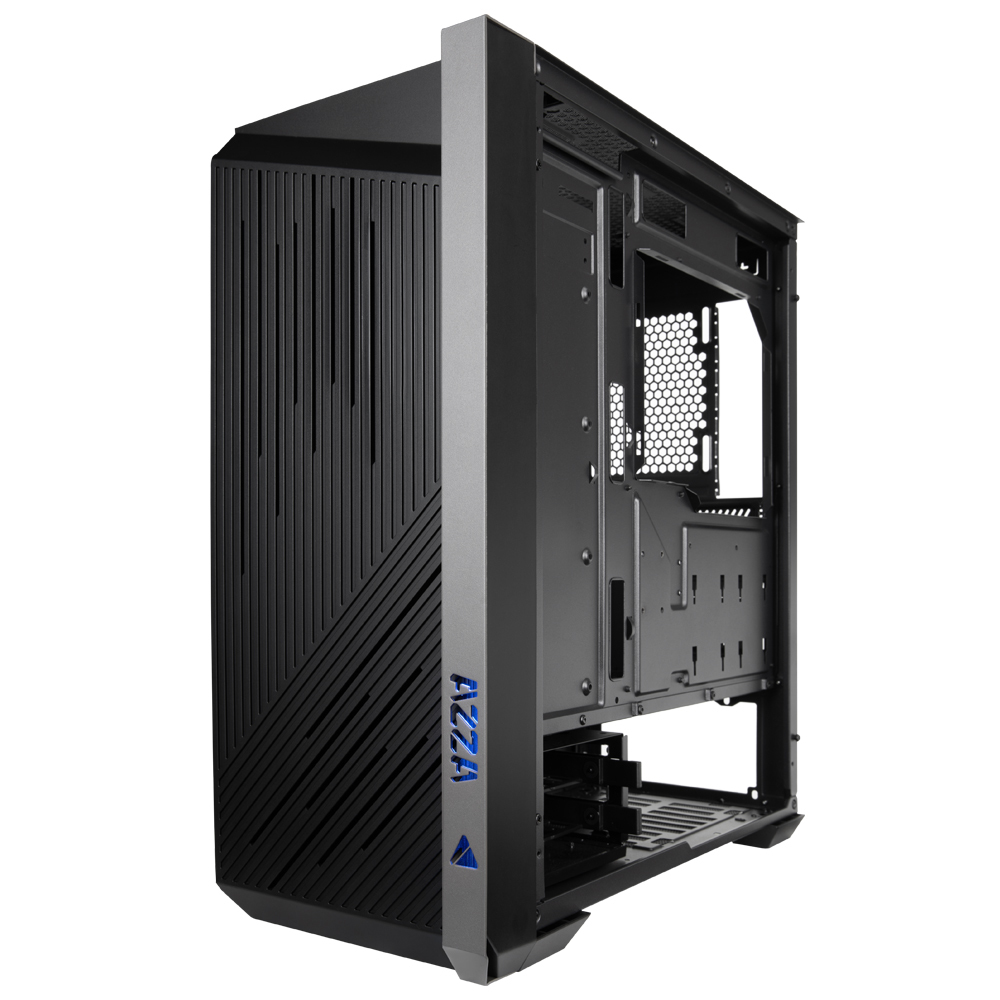

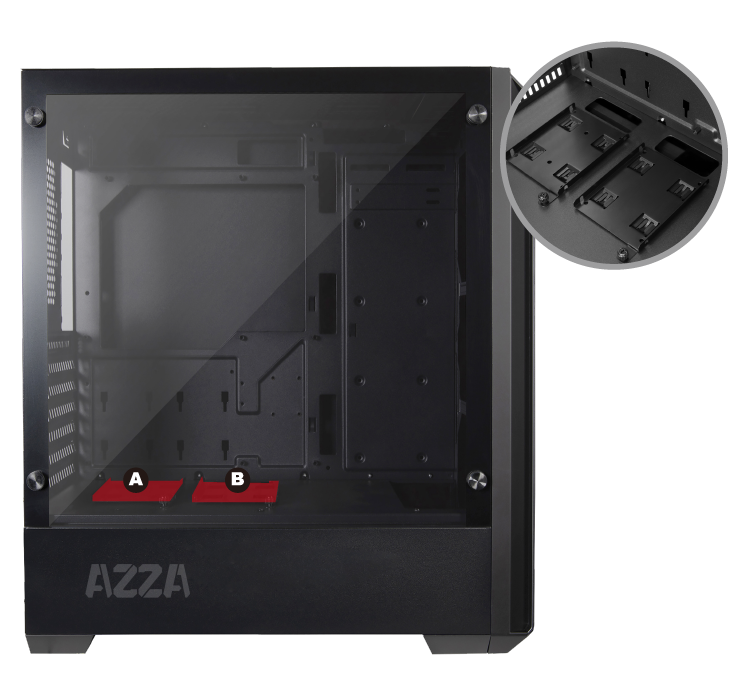

  • Two brackets support 2.5" devices.
    Black fan:( A、B、C、D)


  • Two mounting holes support 2.5" devices.( E、F)
    Two multifunctional trays support 3.5" HDD or 2.5" SSD.( G、H)


  • Supports up to 3 x 120mm or
    2 x 140mm fan up to 240mm
    water cooling radiator in height.

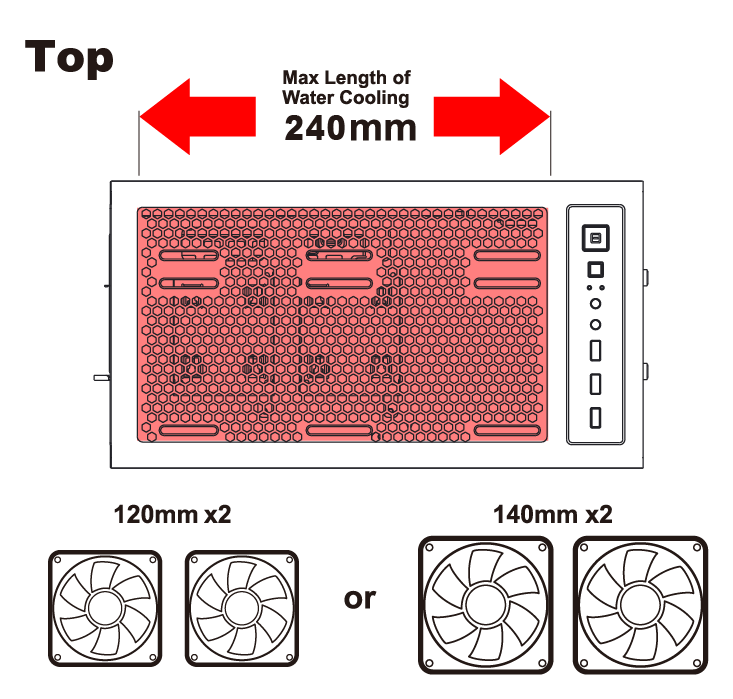

  • Supports up to 2 x 120mm or
    2 x 140mm fan up to 240mm
    water cooling radiator in length.
