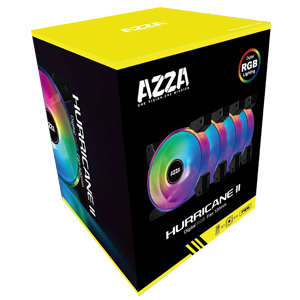

4 X HURRICANE II DIGITAL RGB FAN 120mm + Digital RF Remote ( Optional)
PRODUCT SPECIFICATIONS
DIMENSIONS：120x120x25mm(HxWxD)
Parts list：
4 x HURRICANE II Digital RGB Fan
1 x RF remote (Optional)
PRODUCT INFORMATION
▪DUAL RING DIGITAL RGB FAN –With vibrant digital RGB lighting and a dual ring design with individually addressale RGB LED diodes(5V), the AZZA HURRICANE II DIGITAL RGB fan is an attractive lighting option for any setup a WS2812B-compliant.
▪ENHANCED COOLING –Our fan blades will improve cooling performance with their unique design.
▪QUIET – Rubber pads are mounted on all four corners of the fans, offering improved performance over standard fans by offering less vibration, less noise, and less turbulence.
▪SYNC DIGITAL RGB – By plugging the AZZA HURRICANE II digital RGB fan into a motherboard/lighting controller that is compatible with addressable RGB lights, the lighting and fan speeds can be controlled directly.
▪CYLINDRICAL LIGHTING – More light is better. With a frame made of acrylic material, the Digital RGB lighting is spread all throughout the fan’s frame, giving a clean, uniform look.
| Model Name | Hurricane II Digital RGB |
| Model Number | FNAZ-12DRGB2-041/FNAZ-12DRGB2-241 (Include RF Remote) |
| Rating Voltage | DC12V(Fan) 5V(LED) |
| Rated Current | Max:216mA (Fan); Max:400mA (LED) |
| Fan Speed | 1000-1800 RPM |
| Max.Air Pressure | 1.79mmH20 |
| Max.Air Flow | 43.06 CFM |
| Max Noise Level | 29.0dB(A) |
| Bearing Type | Hydro Bearing |
| Life Expectancy | 100000 hrs,25℃ |
| Connector | 4PIN PWM |
| 5V,3pin WS2812B Addressable RGB Header: Male & Female | |
| Fan Dimensions | 120x120x25mm |
| Weight | 0.6kg |
< -
Cylindrical Lighting
Instead of a tiny ring of light,why not light up the whole thing?
With a frame constructed of acrylic material, the Hurricane II Digital RGB fan allows for Digital RGB lightning to illuminate evenly throughout the entire frame, giving you a clean Digital RGB aesthetic.
-
Silence
Rubber pads are mounted on all four corners of the fans, offering improved performance over standard fans by offering less vibration, less noise, and less turbulence
< -
Hurricane II Digital RGB Fan Installation For Motherboard
Connecting a strip to an incorrect connector can potentially cause damage to the LED strip, due to the RGB, and Digital RGB connectors providing different voltages .
Our digital RGB devices are WS2812B-compliant.Please check your motherboard’s specifications before use. Do not go past the motherboard’s allowed limits on power rating and LED count when connecting multiple fans/LED strips.
“Hurricane II Digital RGB fan supports direct connection to the 5V addressable RGB header on compatible motherboards, such as MSI™, ASUS™, ASROCK™, and Gigabyte™.”
