CELESTA 340
PRODUCT SPECIFICATIONS
DIMENSIONS：478mm x 210mm x 400mm (H x W x D)
COLOR：Black/Black(interior)
PRODUCT INFORMATION
‧Supports up to 320mm long video card.
‧Available Fan Ports:
3x120mm or 3x140mm Fan ports in the front
2x120mm or 2x140mm Fan ports on the top
1x120mm Fan port in the rear
‧Supports radiators up to 280/360mm in the Front
‧Supports radiators up to 240mm in the Top
| Model | |
|---|---|
| Model Name | CELESTA 340 |
| Model Number | CSAZ-340/ CSAZ-340F |
| Specifications | |
| Type | ATX Mid Tower |
| Color | Black/Black(interior) |

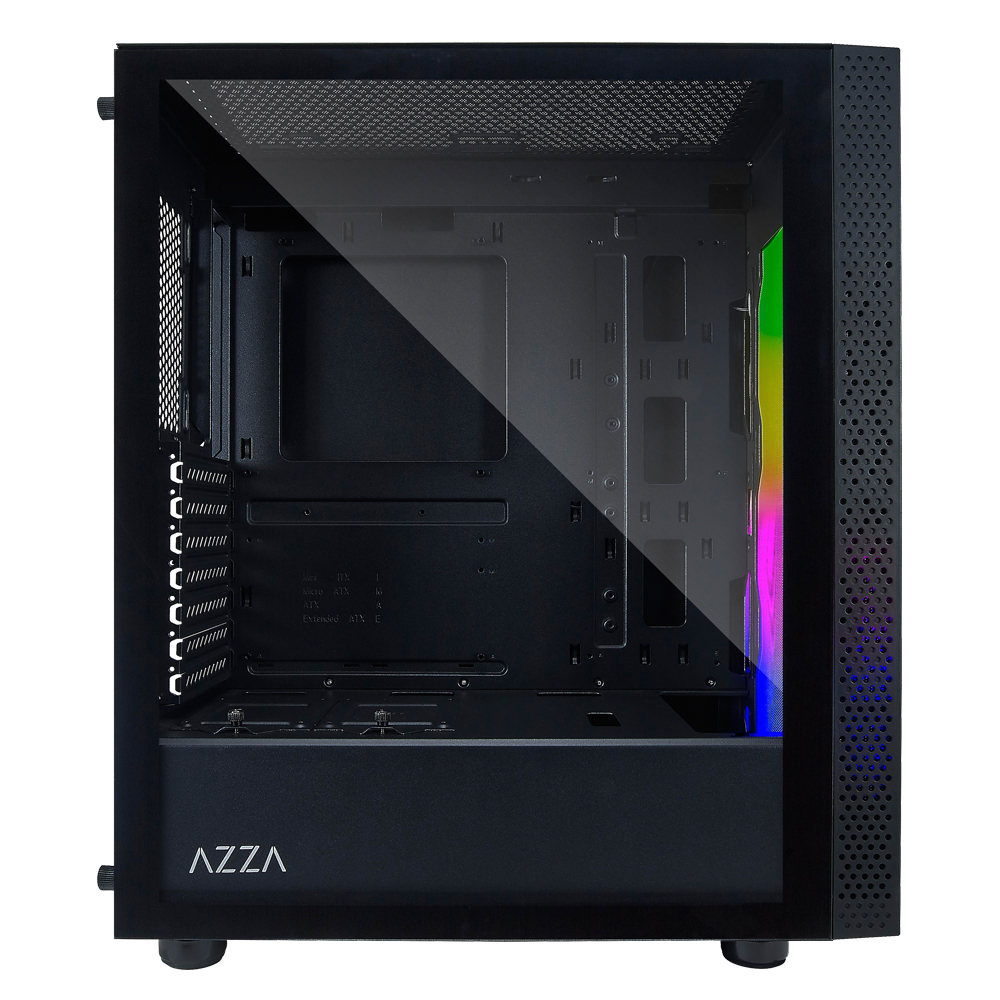

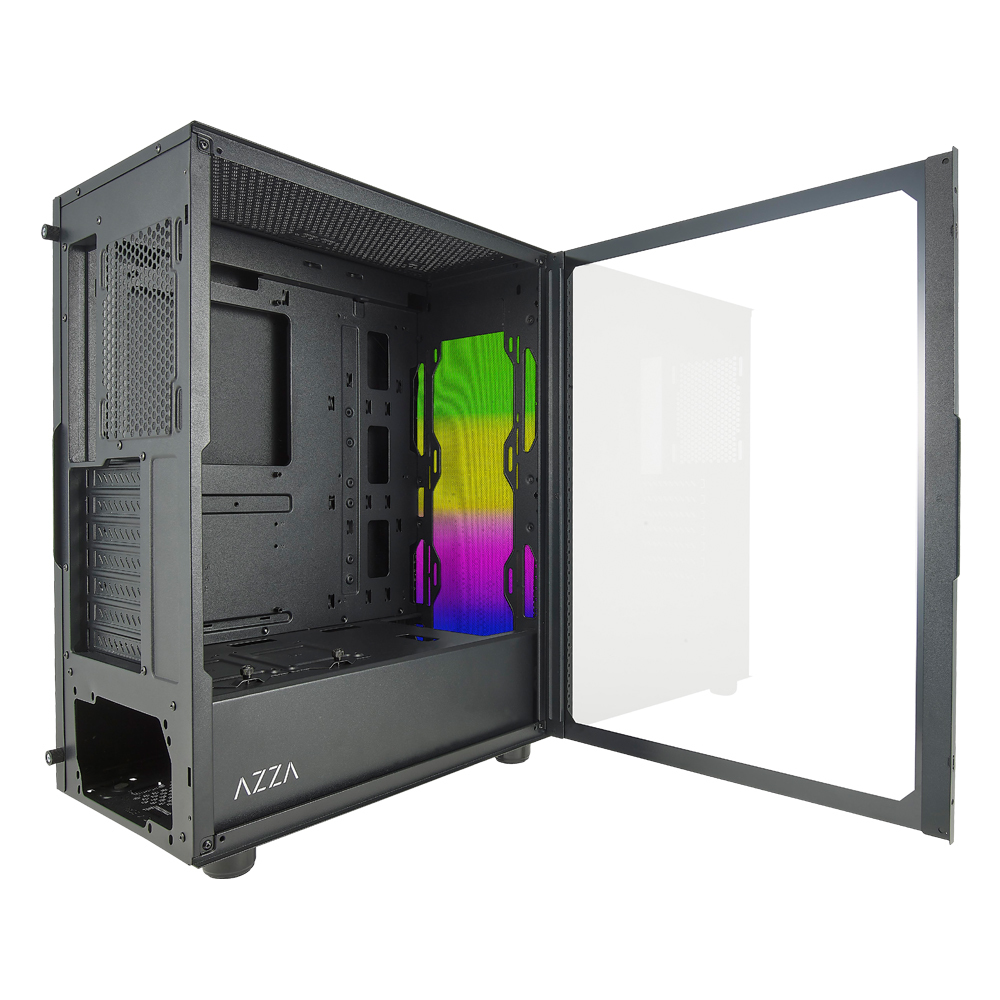

| Side Panel Window | Left side panel: tempered glass with rubber mounts |
| Max CPU Cooler Height | UP to 165mm |
| Max video Card Length | Up to 320mm long video card |
| Power Supply | Not Included |
| Motherboard Compatibility | ATX、Micro ATX、ITX |
| Expansion | |
| External 5.25" Drive Bays: | 0 |
| Internal 2.5" Drive Bays | Up to 4 |
| Internal 3.5" Drive Bays | Up to 2 |
| Expansion slots | 7 |
| Top Ports | Power button, reset button,led button, HD Audio, USB 3.0 x 1, USB2.0x2 |
| Physical Specs | |
| Dimension with Case Stand(HxWxD) | 478X210X400mm/18.8X8.3X15.7 inches |
| Weight | 6kg /13.2lbs |
| Features | |
| Tempered Glass on Four Sides Window | High-quality tempered glass side window allows for clear visuals to inner components |
| Addressable RGB Light Effects: | Addressable RGB light strip in the front controlled the lighting by the LED button. To synchronize all addressable RGB light devices, it needs to be switched to be controlled only by the motherboard. |
| Available Fan Ports | 3x120mm or 3x140mm Fan ports in the front |
| 2x120mm or 2x140mm Fan ports on the top | |
| 1x120mm Fan port in the rear | |
| The available fan included | CSAZ-340F: Rear-1 x Black fan |
| CSAZ-340:Case only. | |
| Water Cooling | Supports radiators up to 280/360mm in the Front |
| Supports radiators up to 240mm in the Top | |
| Dust Filters: | Removable (magnetic) dustproof net on the top , iron net on bottom of chassis. |
| Power Supply Support: | Bottom mounted ATX Power Supply |
-

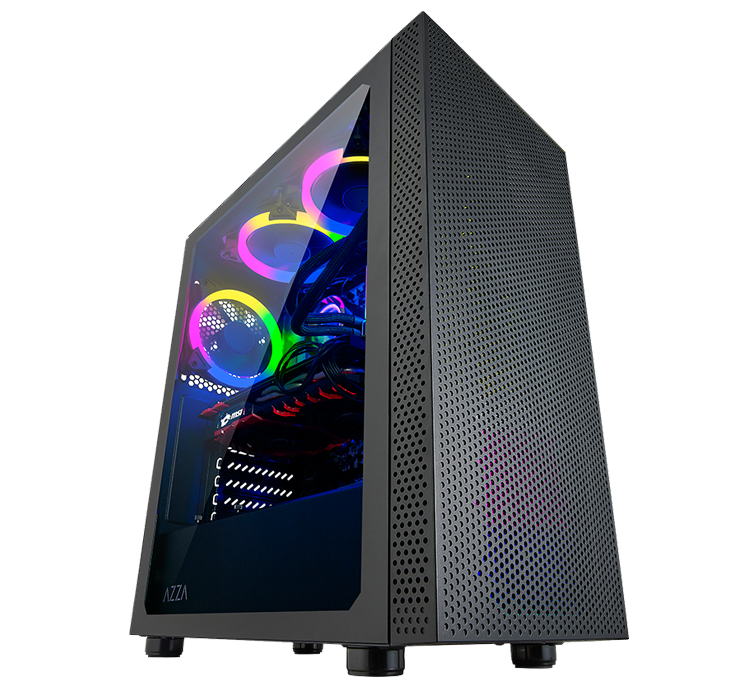

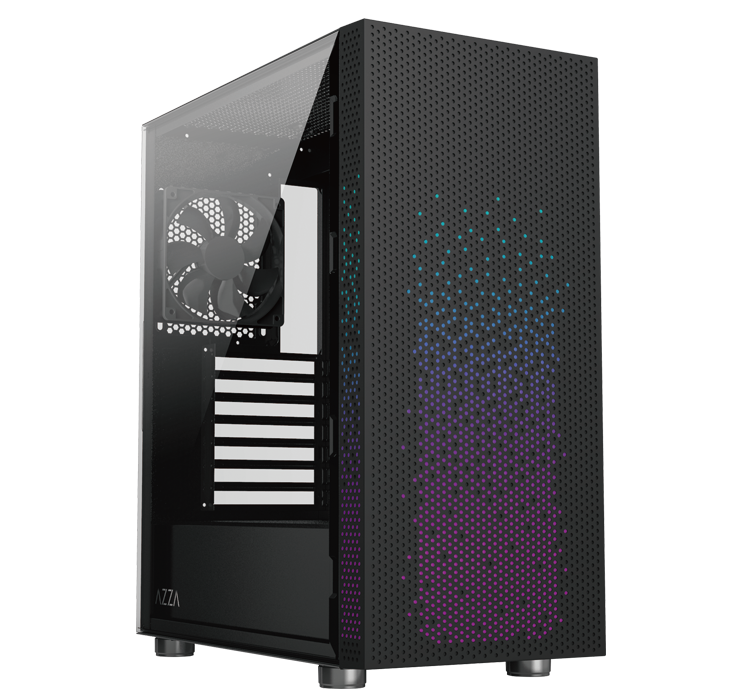

Inspired by the majestic night sky, the Celesta 340 is a beauty to behold.

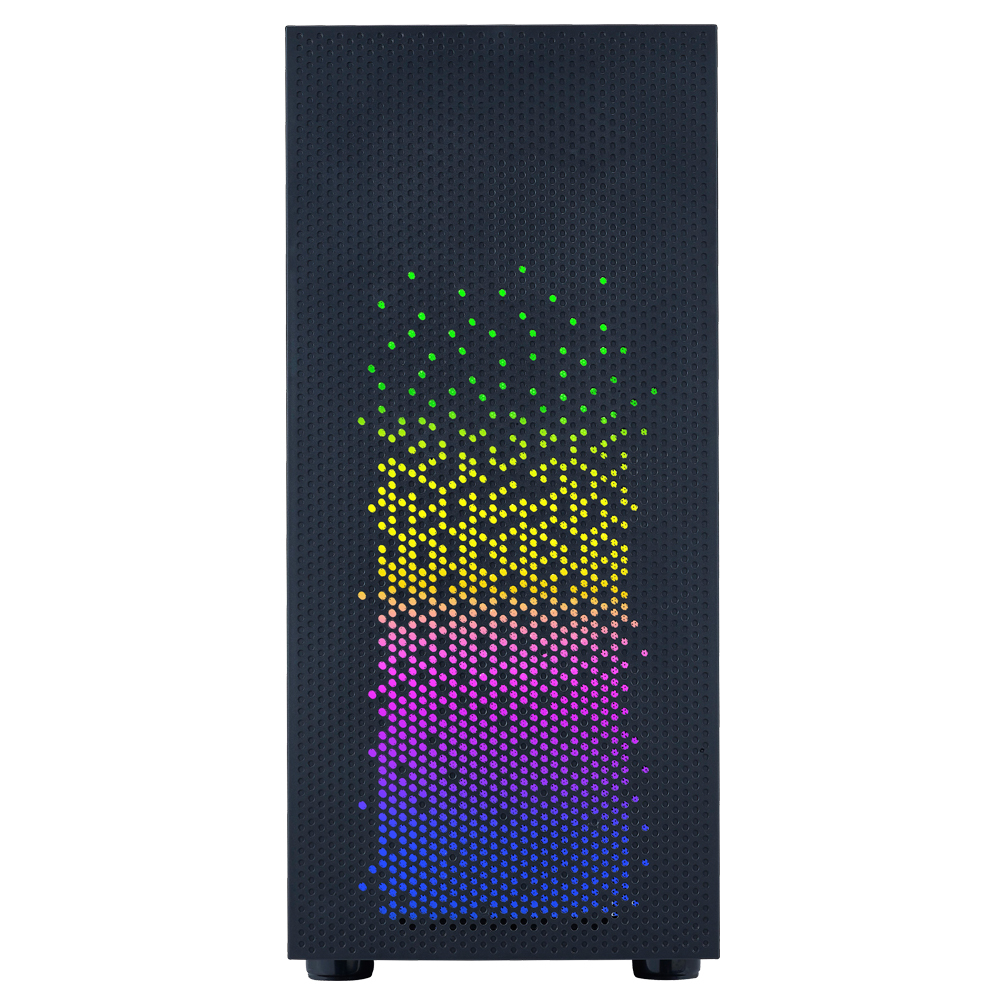

Its dazzling front panel design brings a bright and unique new aesthetic while still offering good thermal performance.
It can accomodate up to a 320mm video card, a 360mm radiator, 6 fans, and 6 storage disks, giving you the freedom to build as robust of a system as you would like.
-
Option 1:CSAZ-340
( CELESTA 340 chassis without fan)
Make what kind of CELESTA 340 you like, just built it.
-
Option 2:CSAZ-340F
(CELESTA 340 chassis with 120mm Black fan)
Black fan:
Connect with motherboard 3pin connector.
< -

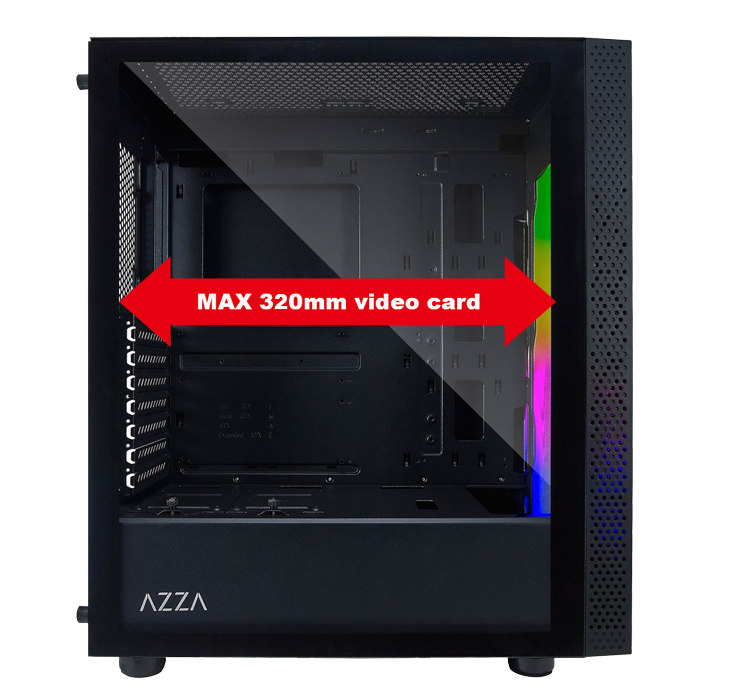

Supports VIDEO cards up to 320mm in length.
-

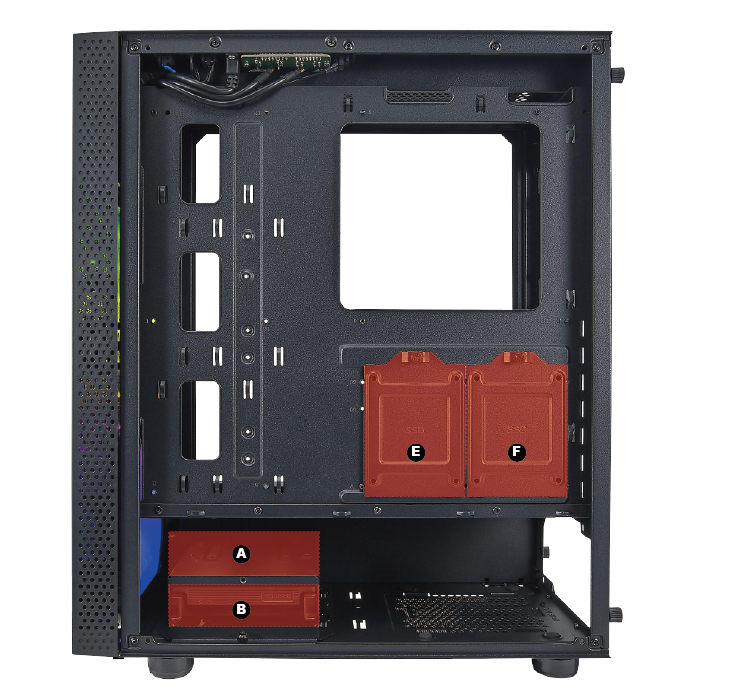

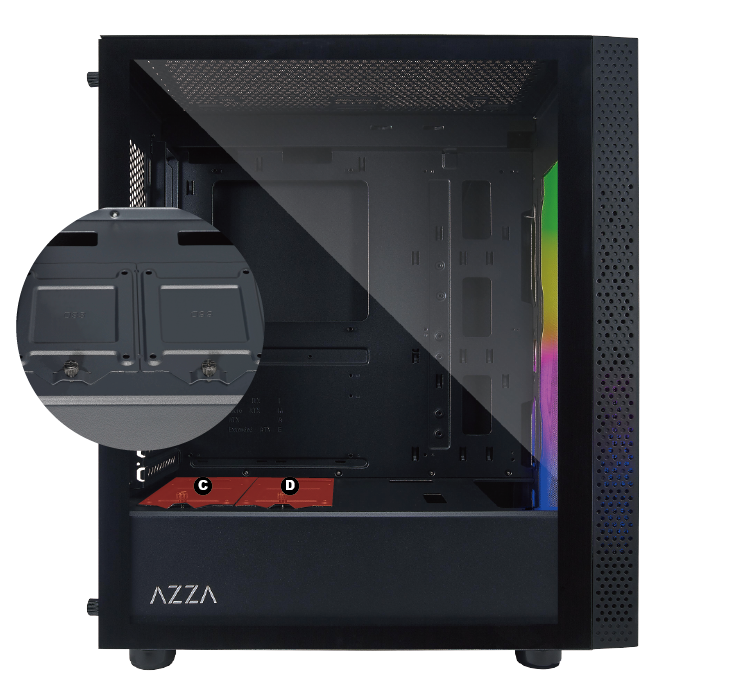

2.5"SSD metal tray support 2.5”SSD x 2
(C、D、E、F)
< -
Multifunctional hard disk bracket support 3.5”HDD or 2.5” SSD x 1
(B)
Multifunctional hard disk cage support 3.5”HDD or 2.5” SSD x 1
(A)
-
▪Supports up to 3x120mm or 3x140mm fan
▪Supports up to 360mm water cooling radiator in height.
< -

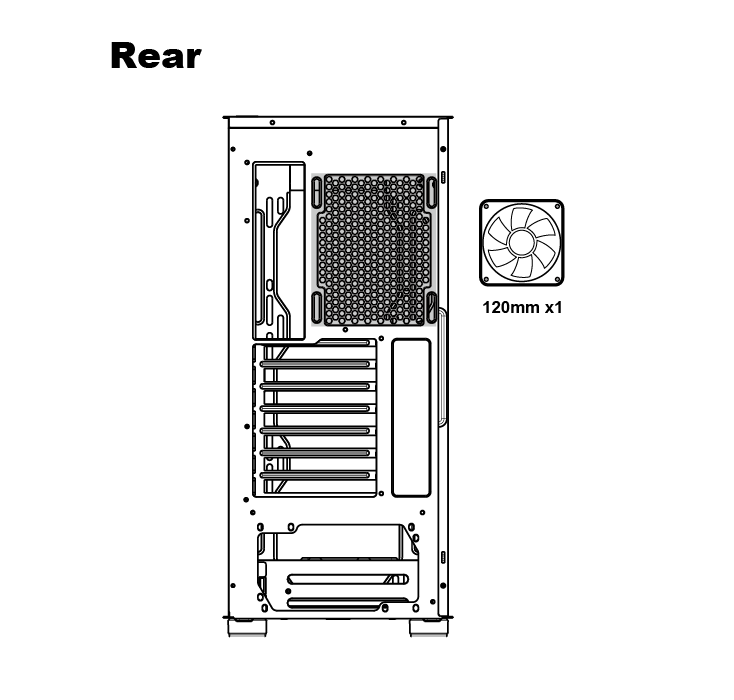

▪Supports up to 1x120mm fan
< -
▪Supports up to 2x120mm or 2x140mm fan
▪Supports up to 240mm water cooling radiator in length.
-

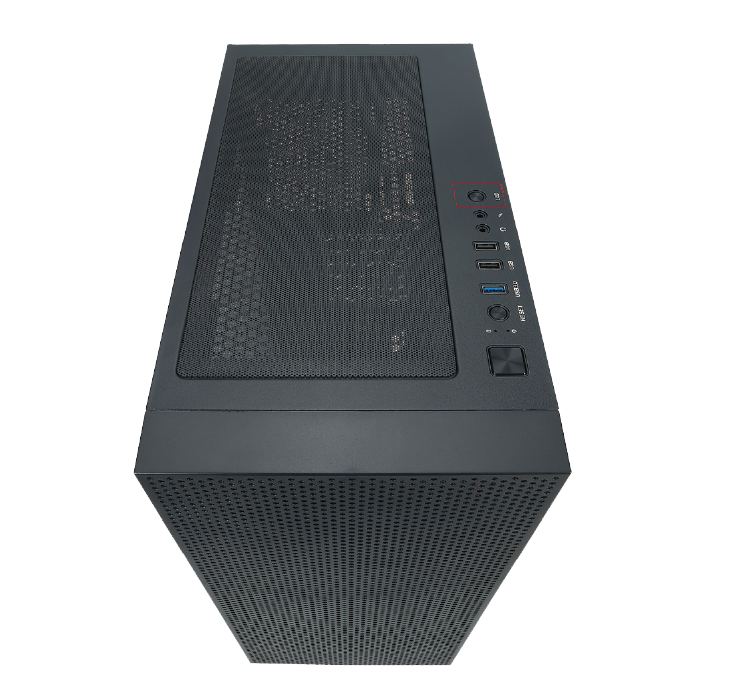

▪To control the front panel ARGB lighting modes, press the LED button to cycle through 13 RGB lighting modes.
▪Hold the LED button for 3 seconds to switch the RGB control function between motherboard RGB software and LED button.
▪To synchronize all addressable RGB light devices, it needs to be switched to be controlled only by the motherboard.
