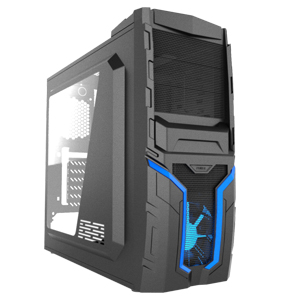

Draco 207

特點規格

Accommodates up to 380mm long VGA card.

Bottom-mounted power supply.

1 x USB 3.0 ready.

Ultimate Cooling System:

1 x 120mm fan (optional) on top to exhaust hot air

1 x 120mm blue LED fan in front to cool the HDD and VGA card

1 x 120mm fan (optional) located in the rear to exhaust hot air

Cables are hidden behind the pre-drilled motherboard tray to get better airflow.

Model
Model Name	Draco 207
Model Number	CSAZ-207/CSAZ-207S
SPECS
Type	ATX Mid Tower
Color	Black (exterior) / Black (interior)
Side Panel	Metal+transparent arcylic
Max CPU Cooler Height	Up to 155mm
Max VGA Card Length	Up to 380mm
Water cooling radiato	up to 120mm
Motherboard Compatibility	ATX, Full ATX, Micro ATX
Power Supply Locations	Rear Bottom
Expansion
External 5.25" Drive Bays	3
Internal 2.5" Drive Bays	Up to 3
Internal 3.5" Drive Bays	Up to 3
Expansion slots	7
Front Ports
Draco 207	1 x USB 3.0, 2 x USB 2.0, HD Audio, Mic.
Draco 207S	2 x USB 2.0, HD Audio, Mic..
Cooling System
Draco 207	1x120mm LED Fan in front; 1 x 120mm Fan in rear
Draco 207S	1x120mm LED Fan in front
Available Fan Ports (option)
Front	1x120mm
Top	1x120mm
Rear	1x120mm
Physical Specs
Dimensions(HxWxD)	450mm x 200mm x 472mm / 17.72 x 7.87 x 18.58 inch
Weight	3.56kgs
Carton Size (H x W x D)	508mm x 237mm x 490mm

The AZZA Draco 207/ CSAZ-207 is designed for those casual gamers looking for an easy-to-build yet sturdy case. Its sleek exterior appeases the eyes while the interior packs a punch. With optional 120mm fans on the top, one 120mm blue LED fan in the front and one optional 120mm fan in the back, this case provides you with outstanding cooling. There is no need to worry about cables as they are hidden behind the motherboard tray, with nothing to obstruct air flow.
