尺寸:440mmx200mmx470mm(H x W x D)



Accommodates up to 380mm long VGA card.

Bottom-mounted power supply.

1 x USB 3.0 ready.

Ultimate Cooling System:

1 x 120mm fan (optional) on top to exhaust hot air

1 x 120mm blue LED fan in front to cool the HDD and VGA card

1 x 120mm fan (optional) located in the rear to exhaust hot air

Cables are hidden behind the pre-drilled motherboard tray to get better airflow.

Model Name SIRIUS 206
Model Number CSAZ-206/CSAZ-206S
Type ATX Mid Tower
Color Black (exterior) / Black (interior)
Side Panel Metal+transparent arcylic
Max CPU Cooler Height Up to 155mm
Max VGA Card Length Up to 380mm
Water cooling radiato up to 120mm
Motherboard Compatibility ATX, Full ATX, Micro ATX
Power Supply Locations Rear Bottom
External 5.25" Drive Bays 3
Internal 2.5" Drive Bays Up to 3
Internal 3.5" Drive Bays Up to 3
Expansion slots 7
Front Ports
CSAZ-206 1 x USB 3.0, 2 x USB 2.0, HD Audio, Mic.
CSAZ-206S 2 x USB 2.0, HD Audio, Mic..
Cooling System
CSAZ-206 1x120mm LED Fan in front; 1 x 120mm Fan in rear
CSAZ-206S 1x120mm LED Fan in front
Available Fan Ports (option)
Front 1x120mm
Top 1x120mm
Rear 1x120mm
Physical Specs
Dimensions(HxWxD) 440mm x 200mm x 470mm /17.32 x 7.87 x 18.5 inch
Weight 3.51kgs
Carton Size (H x W x D) 508mm x 225mm x 479mm

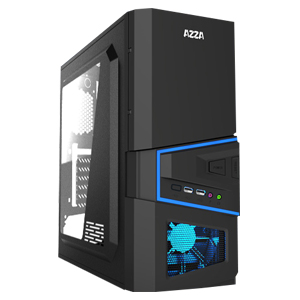

  • The AZZA Sirius 206/CSAZ-206 is designed for those casual gamers looking for an easy-to-build yet sturdy case. Its sleek exterior appeases the eyes while the interior packs a punch. Withoptional 120mm fans on the top, one 120mm blue LED fan in the front and one optional 120mm fan in the back, this case provides you with outstanding cooling. There is no need to worry about cables as they are hidden behind the motherboard tray, with nothing to obstruct air flow.

  • Supports VGA Cards
    up to 380mm in Length.

  • Up to 3 x 5.25",
    3 x 2.5" and 3 x 3.5"
    Drive Bays.

  • Exceptional Cooling
    System: Total of 3 Fans.

  • Bottom-Mounted
    Power Supply
