Inferno 310
產品規格
尺寸：480mm x205mm x 475mm (H x W x D)
顏色：黑色

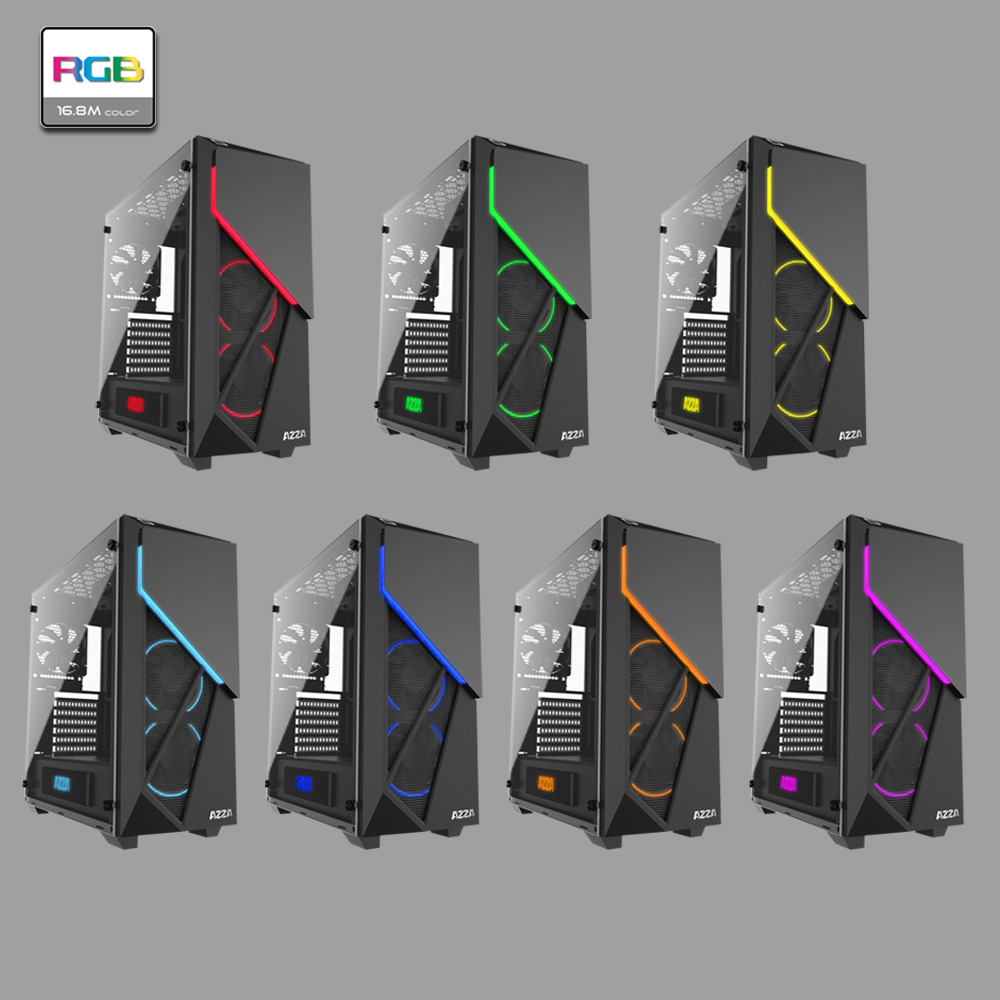

RGB配置：
‧2x HURRICANE RGB LITE 風扇
‧RGB 控制板
‧RGB Logo板、前面板
‧可從面板上LED按鍵變更顏色
產品介紹
‧Supports up to 380mm VGA cards.
‧High-quality tempered glass side panel allows for clear visuals to inner components.
Available Fan Ports:
3x120mm or 2x140mm fan ports on the top
2x120mm or 2x140mm fan ports in the front
1x120mm fan port in the rear (installed)
‧Supports up to 360mm water cooling radiator.
| Model | |
|---|---|
| Model Name | INFERNO |
| Model Number | CSAZ-310 |
| Specs | |
| Type | ATX Mid-Tower |
| Color | Black (exterior)/Black (interior) |
| Side Panel | Tempered Glass with Rubber Mounted |
| Max CPU Cooler Height | Up to 155mm |
| Max VGA Card Length | Up to 380mm |
| Water cooling radiator | Front: up to 280mm; Top: up to 360mm |
| Motherboard Compatibility | ATX, Full ATX, Micro ATX |
| Power Supply Locations | Rear Bottom |
| RGB light effects | 2xHURRICANE RGB LITE fans |
| RGB logo plate, RGB front panel | |
| All RGB light effects controlled by external button. | |
| Expansion | |
| External 5.25" Drive Bays: | 1 |
| Internal 2.5" Drive Bays | Up to 6 (2 with metal tray) |
| Internal 3.5" Drive Bays | Up to 2 |
| Expansion slots | 7 |

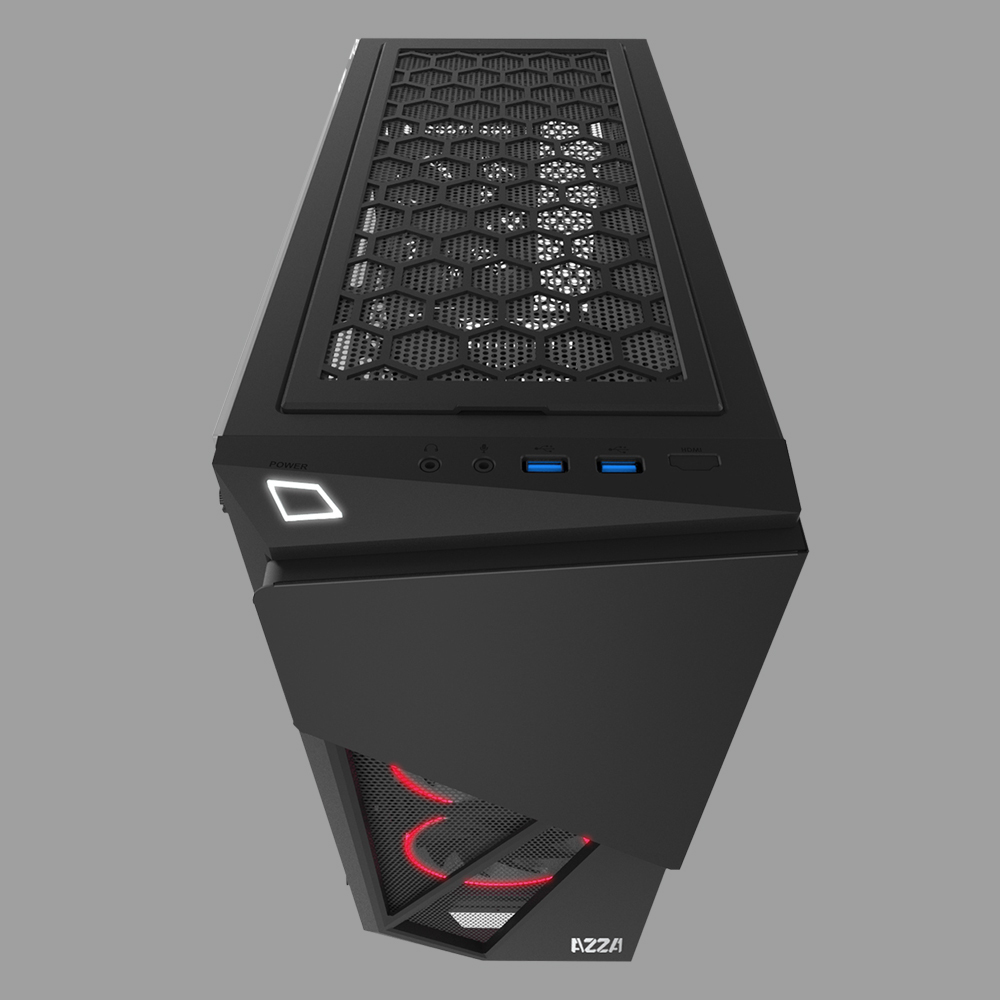

| Front Ports | 2 x USB 3.0, HD Audio, Mic. |
| Cooling System | 2x120mm AZZA HURRICANE RGB LITE fan in front |
| 1 x 120mm black fan in rear | |
| Available Fan Ports | |
| Front | 2x120mm or 2x140mm |
| Top | 3x120mm or 2x140mm |
| Rear | 1x120mm |
| Physical Specs | |
| Dimensions(HxWxD) | 480x205x475mm / 18.9x8.1x18.7 inch |
| Weight | 6.7kg |
| Carton Size (H x W x D) | 544x274x538mm |
FB-Tech 2017/09/16
Azza Inferno 310 PC Case Review
Nicolas11x12 English 2017/10/14
Azza Inferno 310 PC Case Review
Legitreviews 2017/10/23
Azza Inferno 310 PC Case Review
ThinkComputers 2017/10/31
Azza Inferno 310 PC Case Review
ALittleDIMM 2017/12/07
Azza Inferno 310 PC Case Review
overclock 2017/12/04
Azza Inferno 310 PC Case Review
-

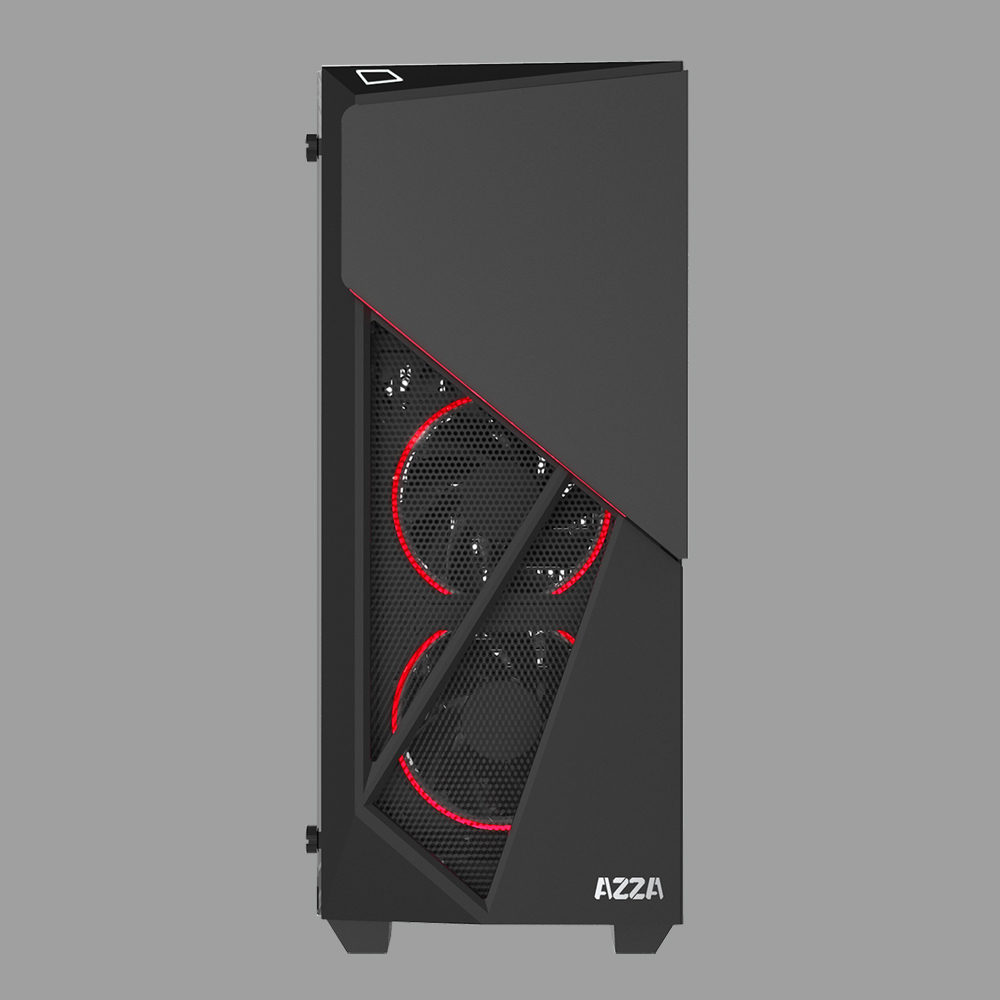

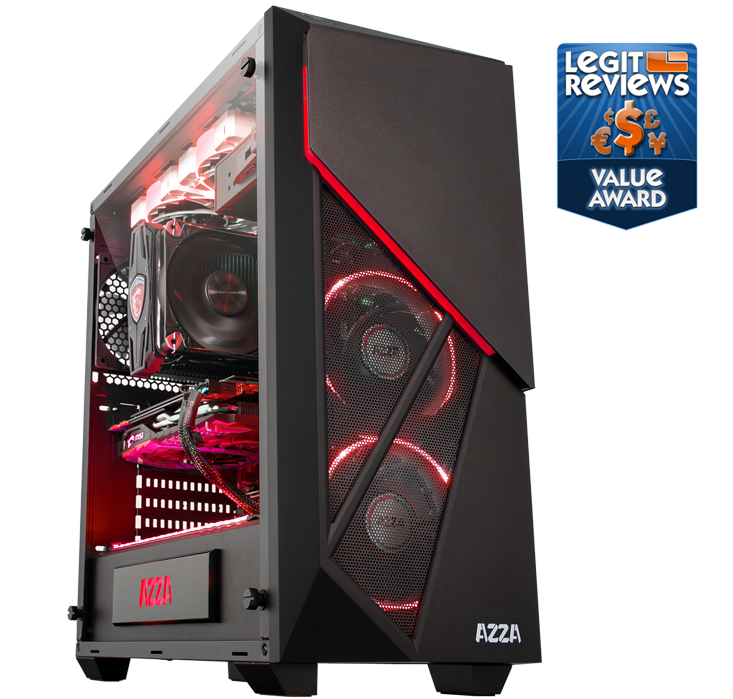

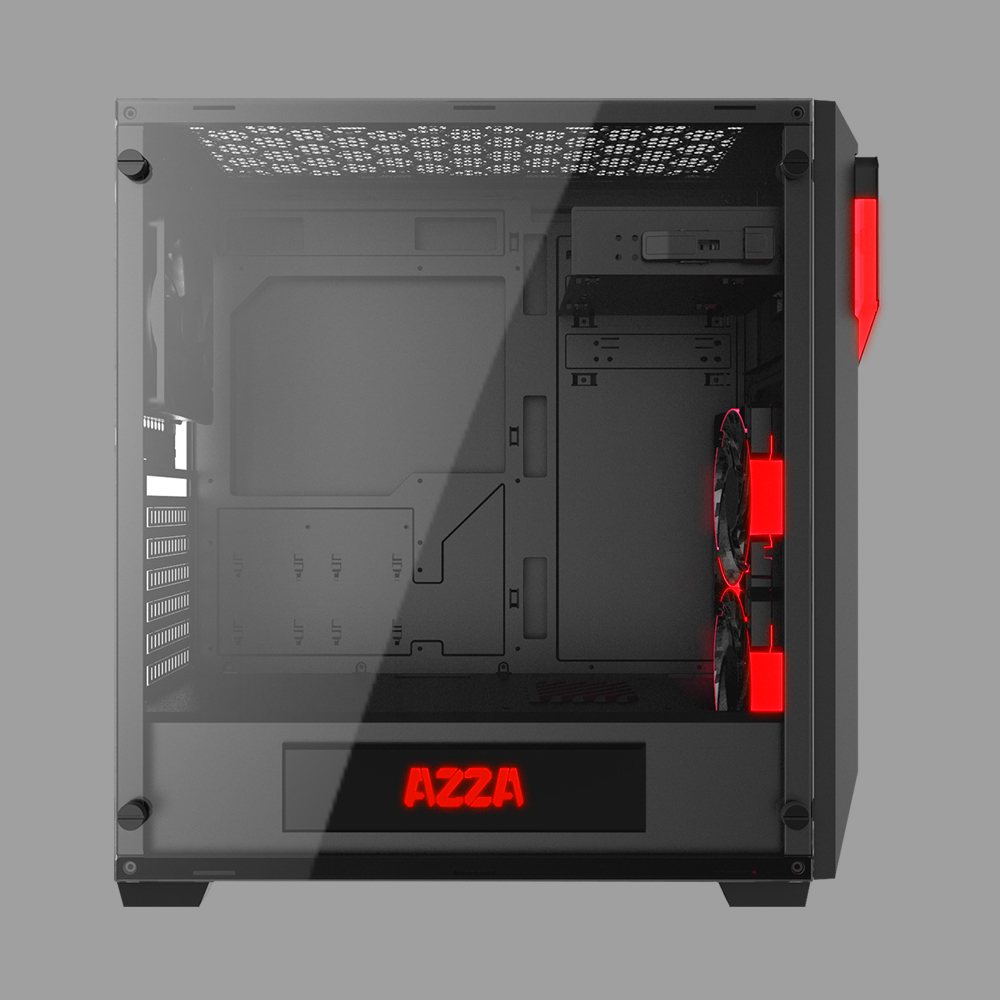

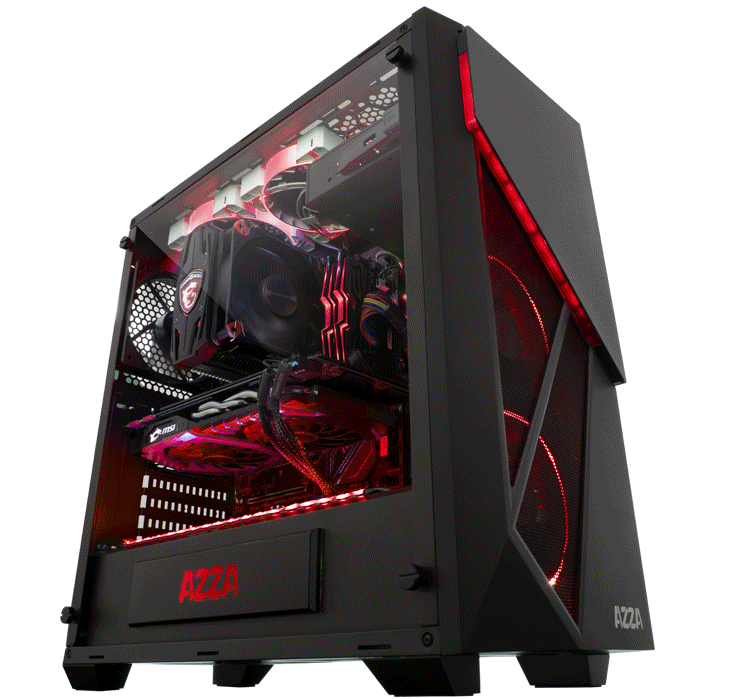

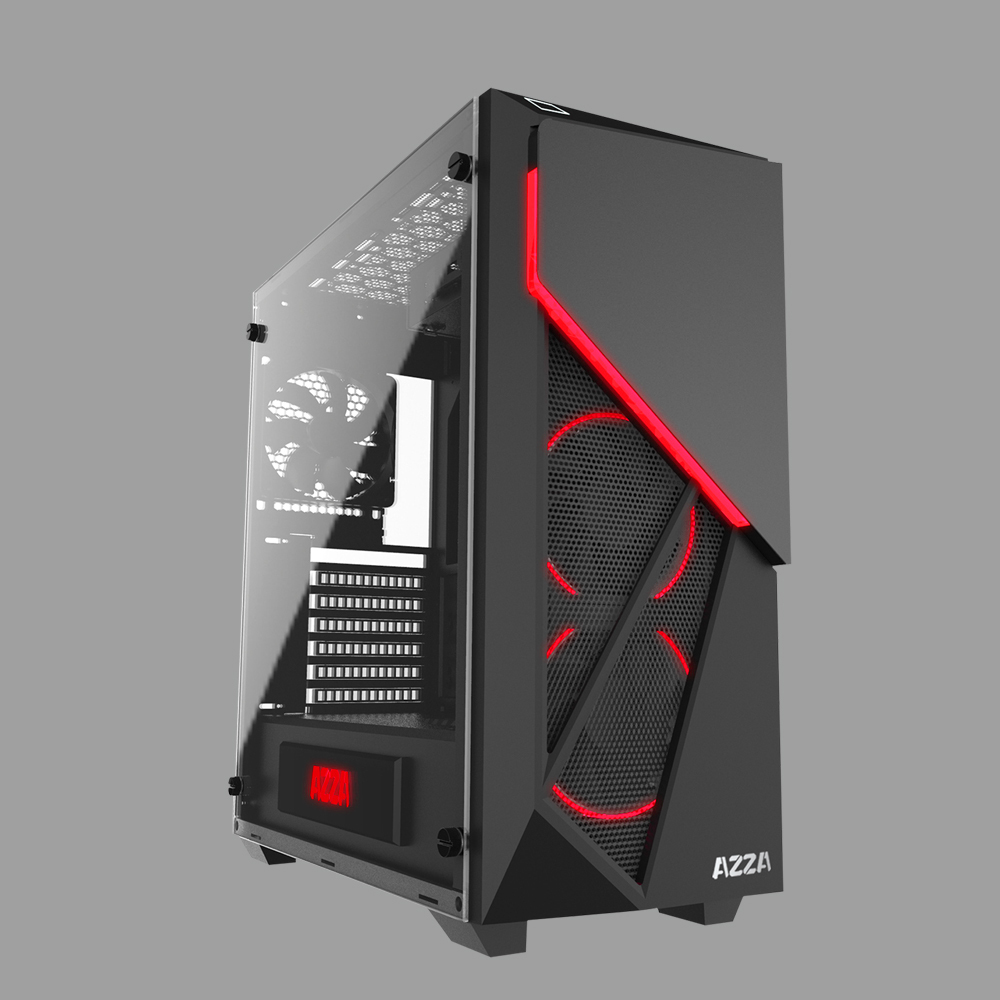

The Inferno 310 is the hottest new case in our lineup, as it is geared towards users who want a lot of flare and style in their rig. With a sleek and sturdy tempered glass side panel, the case allows for easy viewing of the inner components. For those RGB fanatics, the Inferno 310 includes two of our HURRICANE RGB LITE fans, an RGB strip on the front panel, and an RGB AZZA logo on the power supply chamber, all fully customizable, allowing you to make this case truly yours.
With a metal front door panel, the case features a sturdy design that is suited for all users. The Inferno 310 supports a 360mm water cooling radiator on the top, as well as a 280mm one on the front. The Inferno 310 support the longest video cards in the market, up to 380mm long. The power supply is housed inside its own isolated chamber, preventing the residual heat from the power supply from affecting the other components.
-
Vortex Air – To help improve cooling performance, our patented Shark Teeth design helps channel the air into a concentrated stream for more powerful air flow.
Silence – Special grooves carved into the fan blades help reduce noise levels up to ten percent!
Sync RGB – By plugging the HURRICANE RGB LITE fan into a RGB-compatible motherboard, lighting and fan speed can be controlled directly, without the need for additional hardware.
Cylindrical Lightning – More light is better. With a frame made of acrylic material, the RGB lighting is spread all throughout the fan’s frame, giving a clean, uniform look.
-

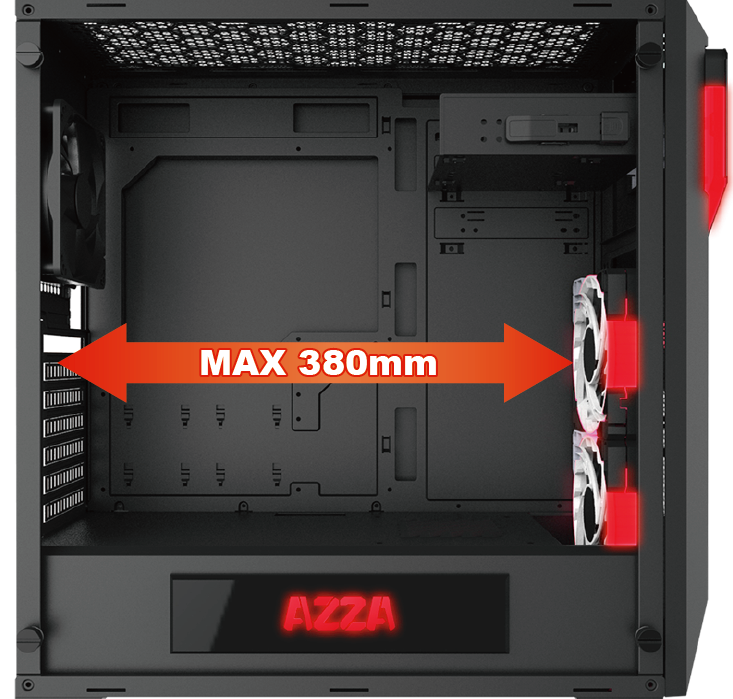

Supports VGA cards
up to 380mm in length.
< -

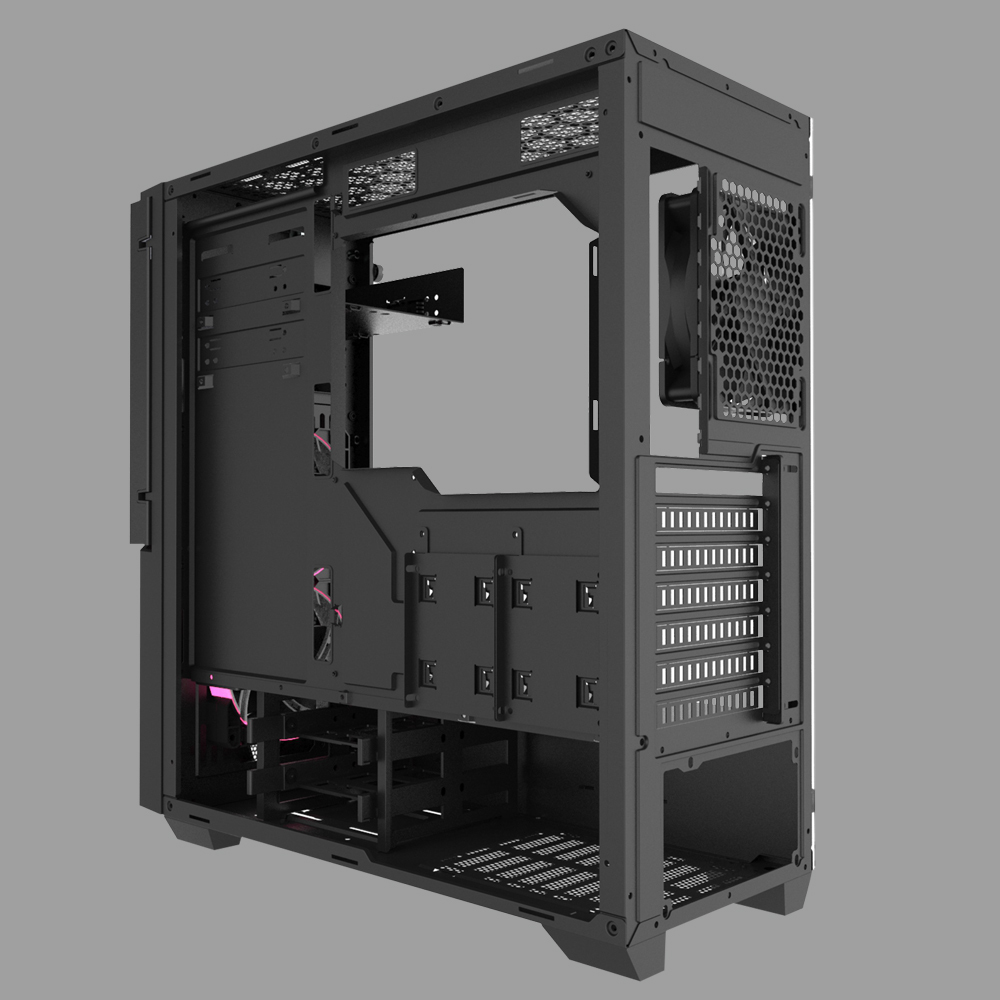

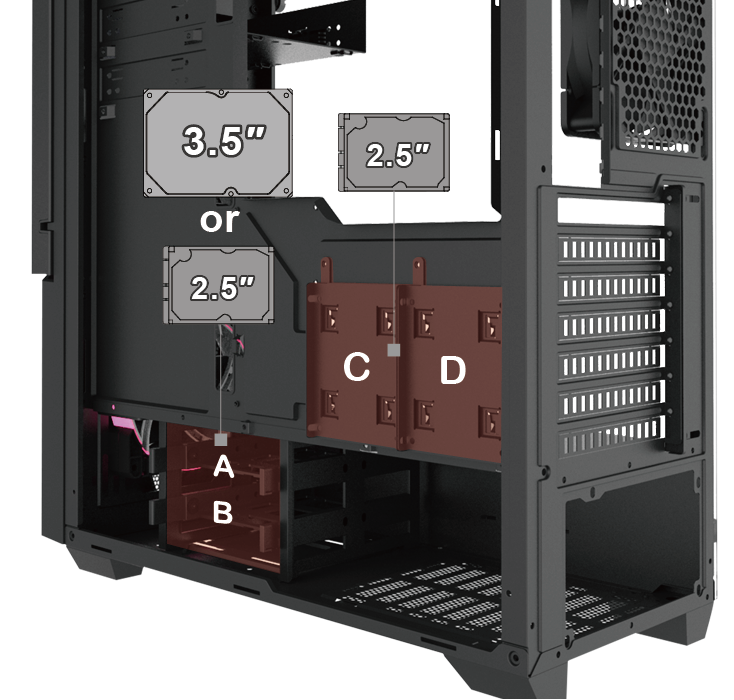

‧Two multifunctional brackets support
3.5" HDD or 2.5" SSD( A、B)
‧Two multifunctional brackets support
2.5" SSD( C、D)
-

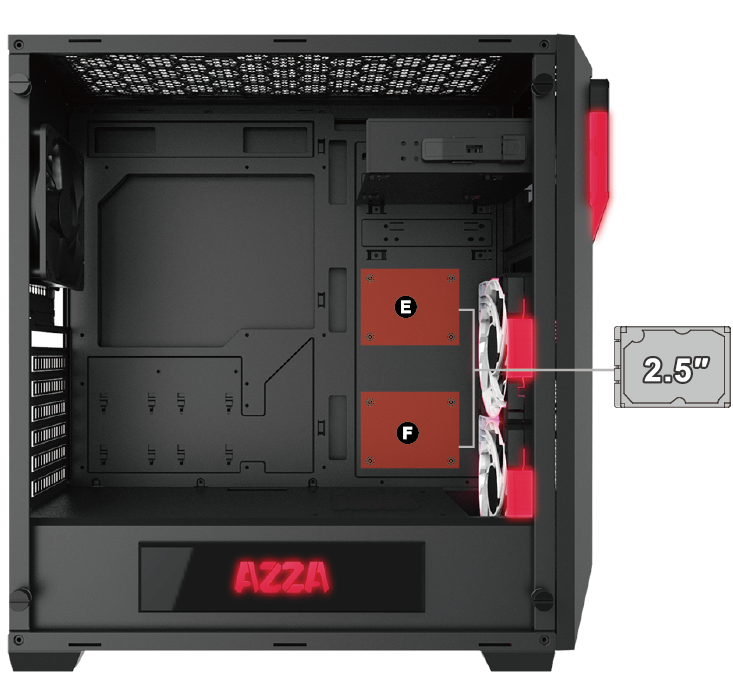

‧Two mounting holes support
2.5" devices.( E、F)
-
Supports tup to 2 x 140mm or 120mm fan
up to 280mm water cooling radiator in length.
< -

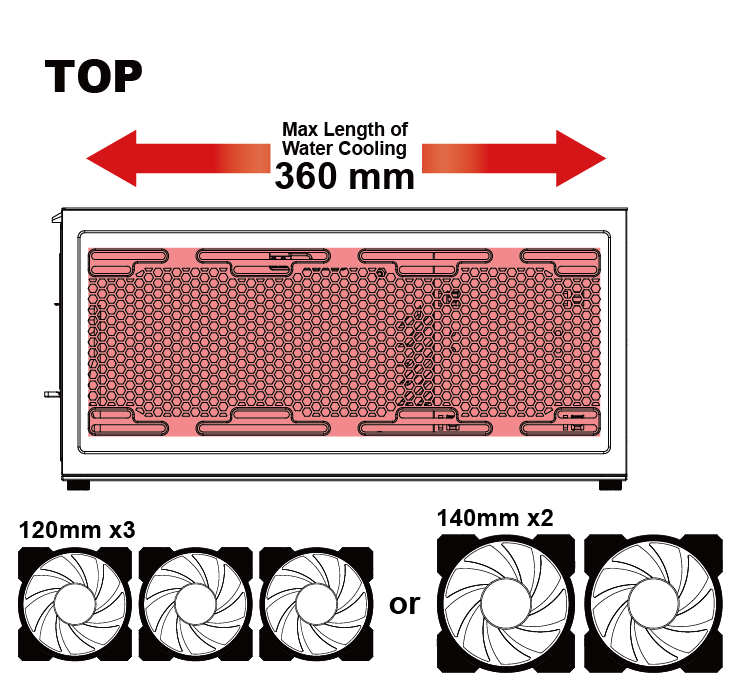

Supports up to 2 x 140mm or 3 x 120mm fan
up to 360mm water cooling radiator in length.
