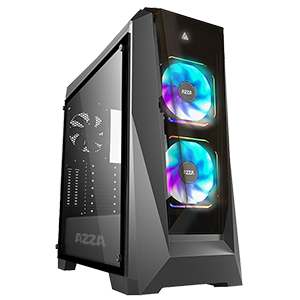

Chroma 410B

‧Supports up to 400mm Video cards.

‧High-quality tempered glass side panel allows for clear visuals to inner components.

Available Fan Ports:

2x120mm Fan ports on the top

3x120mm or 2x140mm Fan ports in the front

1x120mm Fan port in the rear

1x120mm black Fan port in the rear (installed)

‧Supports 360mm Water Cooling Radiator.

Model
Model Name	Chroma 410
Model Number	CSAZ-410B
Specifications
Type	ATX Mid-Tower
Color	Black (exterior)/Black (interior)
Side Panel Window	Tempered Glass With Rubber Mounts
Max CPU Cooler Height	Up to 162mm
Max Video Card Length	Up to 400mm long Video card
Power Supply Locations	Not Included
Motherboard Compatibility	ATX, Micro ATX
Expansion
External 5.25" Drive Bays:	0
Internal 2.5" Drive Bays	Up to 6 (2 with metal tray)
Internal 3.5" Drive Bays	Up to 2
Expansion slots	7
Top Ports	2xUSB3.0,2xUSB2.0, HD Audio
Physical Specs
Dimensions(HxWxD)	520x205x500mm / 20.5x8.1x19.7 inches
Weight	6.82 kg / 15.0 lbs
Carton Size (H x W x D)	570x295x572mm
Features
Front Panel	Acrylic Side Translucent modeling
Digital RGB Light Effects	Digital RGB Light on the front.
	All Digital RGB light devices controlled by RF Remote (included) or motherboard
Tempered Glass Side Window	High-quality tempered glass side window allows for clear visuals to inner components
Available Fan Ports
Front	3x120mm or 2x140mm
	(2x120mm PRISMA-Digital RGB Square Fan included)
Top	2x120mm
Rear	1x120mm
	(1x120mm Black Fan included)
Dust Filters	Dustproof PVC Net x2 on bottom of Chassis
Water Cooling	Supports radiators up to 240mm on top / 360mm in front
Isolated Chamber	Power supply is housed inside its own isolated chamber,
	preventing its heat from affecting other components
Water Cooling	Supports radiators up to 240mm on top / 360mm in front
Easy Installation Cooler	A pre-cut hole for easy installation of CPU Cooler,
	eliminating the need to remove the motherboard

2018//

Azza Chroma 410B PC Case Review

The Chroma 410B is the sister case of our Chroma 410A, and offers a slightly different RGB experience for those who are looking for one. Included with the case is 2 of our PRISMA Digital RGB fans mounted on the front, both of which are addressable, allowing you to customize their colors to your heart’s desire.
Coupled with an acrylic front panel, the RGB fans are able to offer a beautiful aesthetic. The Chroma 410B supports some of the longest video cards in the market, up to 400mm long, making it compatible with a variety of builds. With a tempered glass side panel, the case is able to show off its components in clear view, further enhancing the viewing experience of the case.
With its diverse support for water cooling and fans, along with its isolated power supply chamber for heat dissipation, the Chroma 410B is able to deliver exceptional cooling performance. For those who are looking for a case with an RGB aesthetic that isn’t too loud, the Chroma 410B is perfect for you.

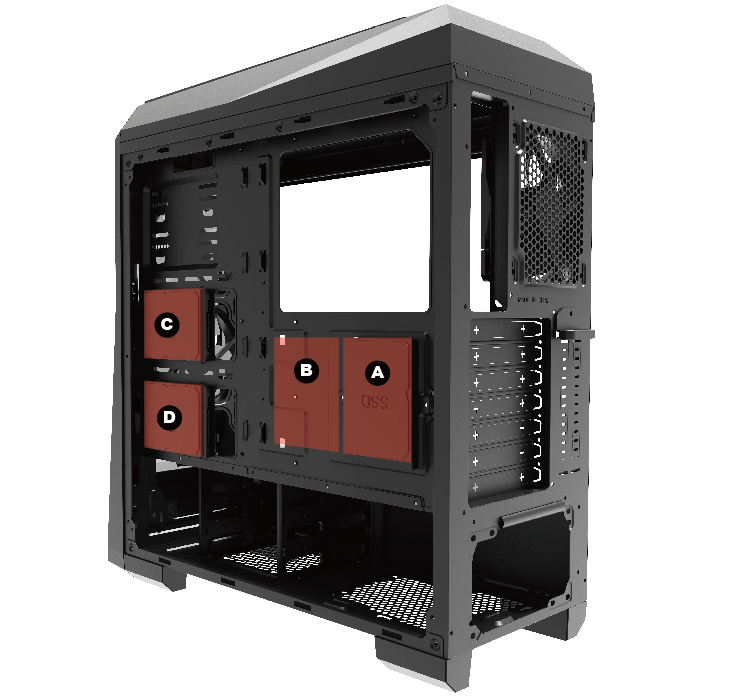

Two multifunctional brackets support
2.5" SSD( A、B)
Two mounting holes support
2.5" devices.(C、D)
