‧Supports up to 370mm Video cards.
‧High-quality tempered glass side panel allows for clear visuals to inner components.
Available Fan Ports:
2x120mm fan port on the top
3x120mm or 2x140mm Fan ports in the front
(3x120mm PRISMA-Digital RGB fans included)
1x120mm Fan port in the rear
‧Supports Up to 360 mm Water Cooling Radiator in the front and 240 mm on the top.
|Model Name||Obsidian 270|
|Color||Black (exterior)/Black (interior)|
|Side Panel||Tempered Glass on Top, Front and Side panel. Tempered Glass with rubber mounts|
|Max CPU Cooler Height||Up to 155mm|
|Max Video Card Length||Up to 370mm Long Video Card|
|Power Supply||Not inclued|
|Motherboard Compatibility||ATX, Micro ATX|
|External 5.25" Drive Bays||0|
|Internal 2.5" Drive Bays||Up to 5|
|Internal 3.5" Drive Bays||Up to 3|
|Top Ports||2xUSB3.0, 2xUSB2.0, HD Audio|
|Dimensions(HxWxD)||514x198x469mm / 20.3x7.8x18.5 inches|
|Weight||6.96kg / 15.4 lbs|

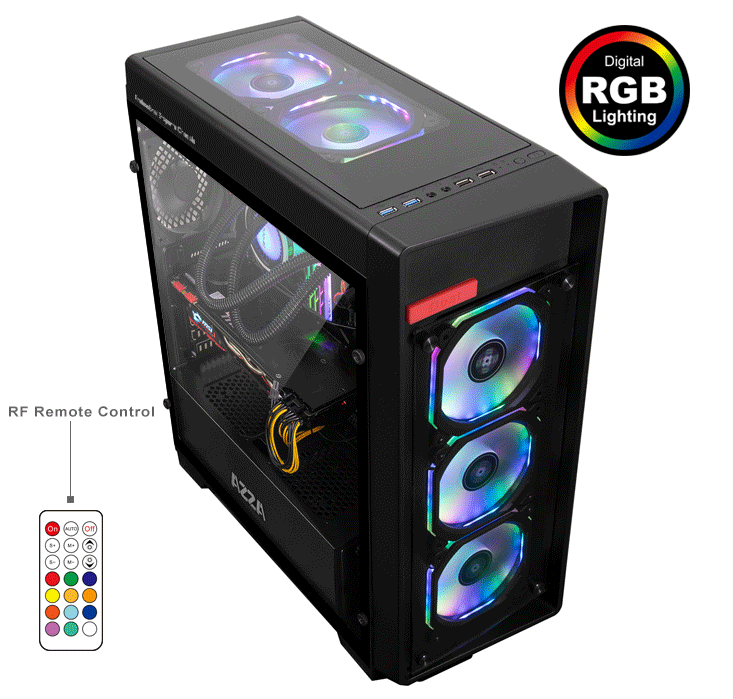

|Digital RGB Light Effects||Digital RGB light on the front. All digital RGB light devices controlled by RF Remote (included) or motherboard.|
|Tempered Glass Side Window||High-quality tempered glass side windows allow for clear visuals to inner components|
|Available Fan Ports||2x120mm Fan ports on the top|
|3x120mm or 2x140mm Fan ports in the front|
|(3x12cm PRISMA- Digital RGB Fans included)|
|1x120mm Fan port in the rear|
|Dust Filters||Dustproof PVC Net on bottom of Chassis|
|Water Cooling||Supports radiators up 240mm on top/360mm in front|
|Isolated Chamber||Power supply is housed inside its own isolated chamber, preventing its heat from affecting other components|
|Easy Installation Cooler||A pre-cut hole for easy installation of CPU Cooler,eliminating the need to remove the motherboard|
|Accessories||Headphone Hanger, Anti-dust Plug, Digital RGB LED RF Remote|

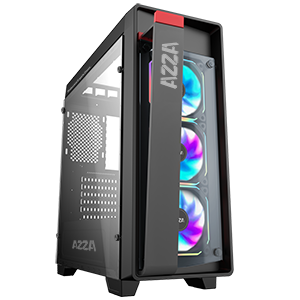

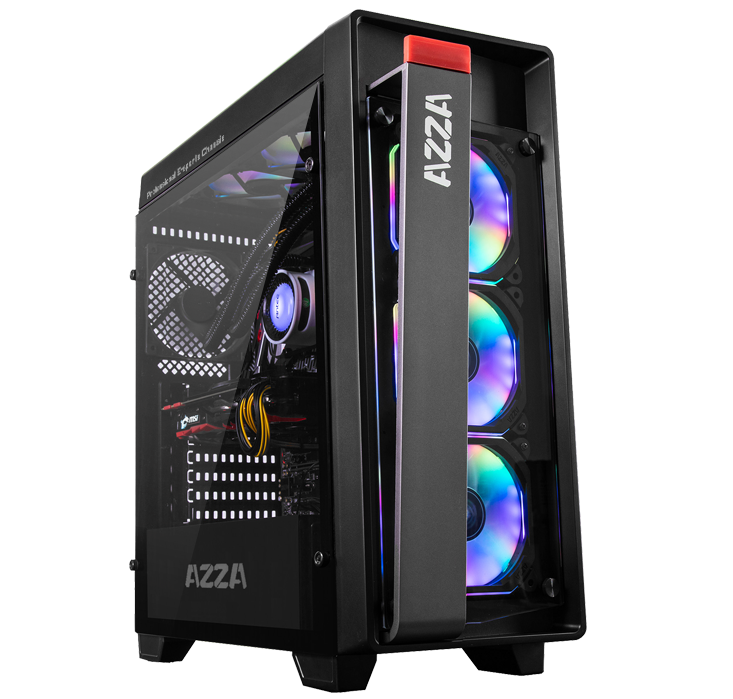

The Obsidian 270 is a unique gamer-oriented case that features a red accented design. One special feature of this case is the dedicated headphone hanger on the front of the case. Users can hang their headphones on this mount when not in use, providing a convenient and efficient storage solution for headphones. For users without headphones, the mount can also be removed with a few simple steps.
The high-quality tempered glass panel allows users to show off their build with pride, and coupled with the headphone mount, gives the Obsidian 270 a unique look. The case supports a variety of components, including support for the longest video cards up to 370mm long. With water cooling options and compatibility with ATX, M-ATX, and ITX motherboards, the Obsidian 270 is a solid choice for any gamer!

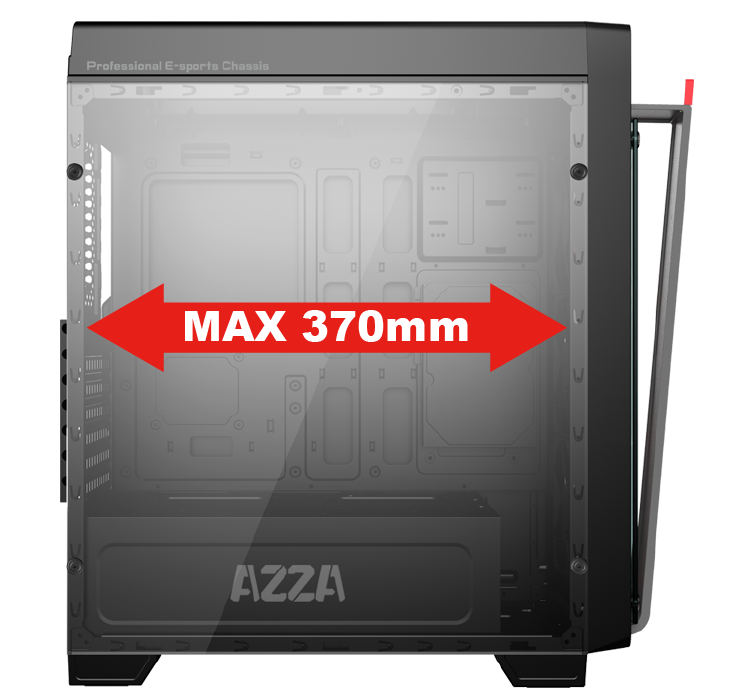

Supports Video cards
up to 370mm in length.

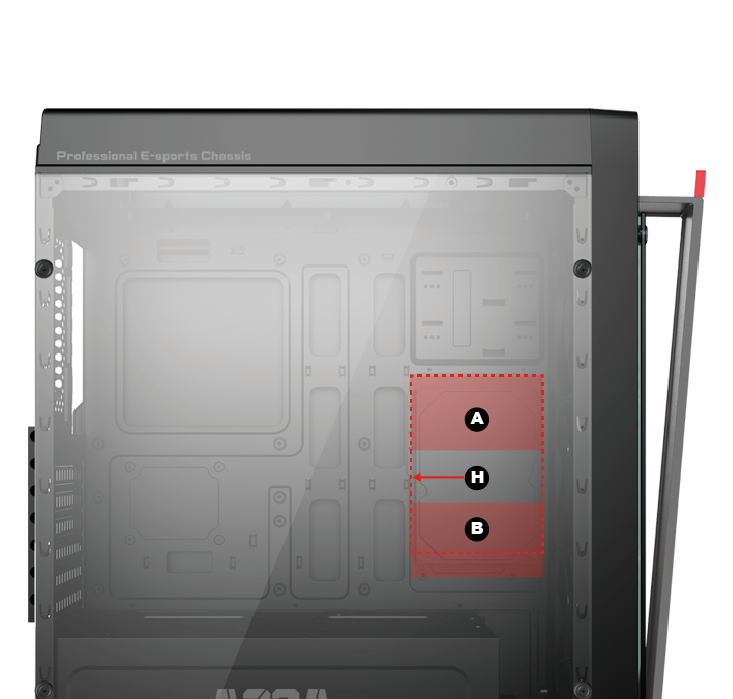

‧Supports 2.5" SSD x2 ( A 、B )
‧Supports 3.5" HHD x1 ( H )

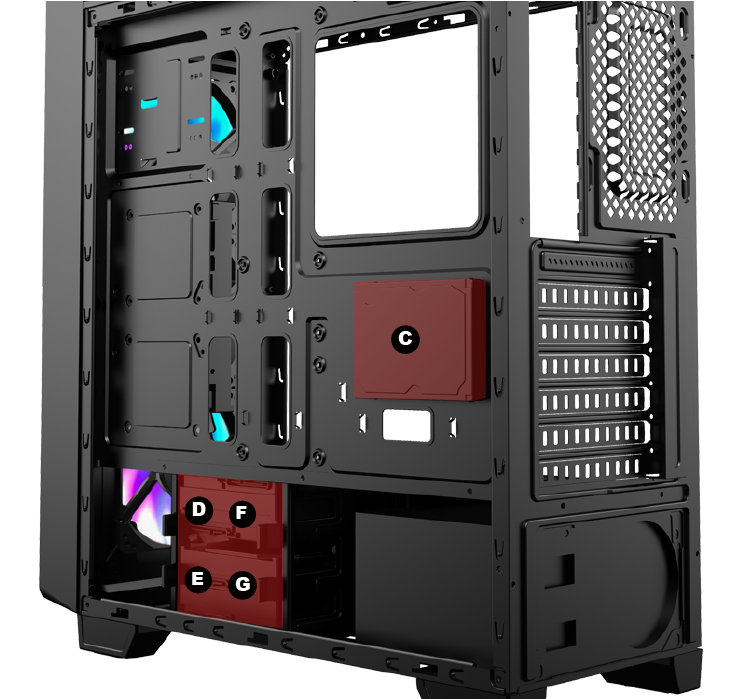

‧Supports 2.5" SSD x3 ( C 、D 、E )
‧Supports 3.5" HHD x2( F 、G)

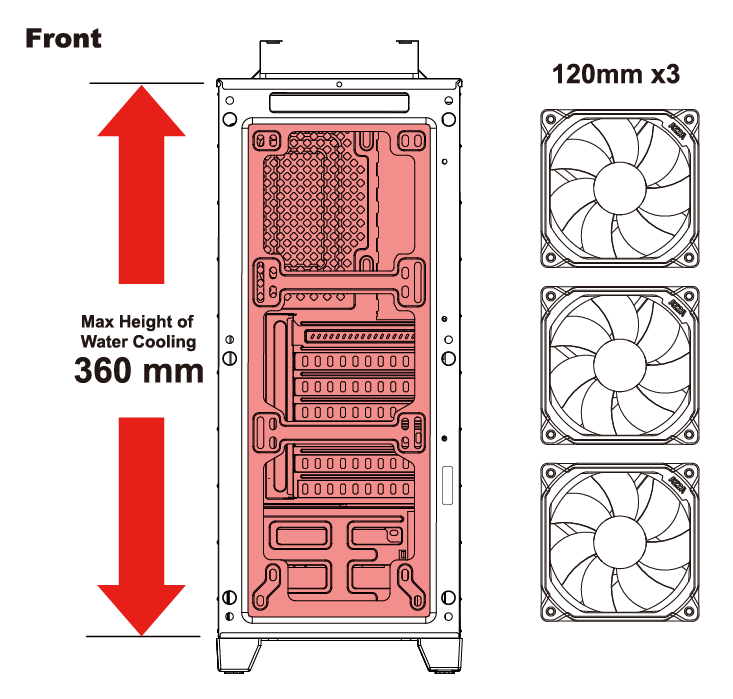

Supports up to 3 x 120mm fan / 360 mm Water Cooling Radiator in height

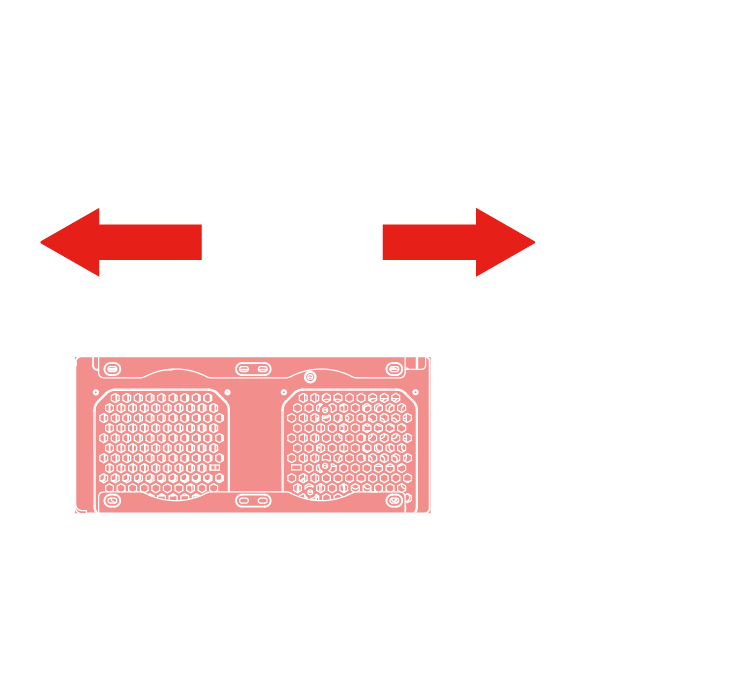

Supports up to 2 x 120mm fan / 240mm Water Cooling Radiator in length
