尺寸：480mm x 197mm x 427mm (H x W x D)
▪Supports up to 340mm long video card.
▪Left Side Panel:
Transparent acrylic for CSAZ-231, tempered glass for CSAZ-231G
Available Fan Ports:
2x120mm fan ports on the top
2x120mm or 2x140mm fan ports in the front
( 2x120mm PRISMA-RGB Fan included )
1x120mm fan port in the rear
▪Supports up to 240mm water cooling radiator.
|Model Name||Blaze 231|
|Model Number||CSAZ-231 / CSAZ-231G|
|Color||Black (exterior)/Black (interior)|
|Side Panel Window:CSAZ-231||Transparent Acrylic with rubber mounts|
|Side Panel Window:CSAZ-231G||Transparent Glass with rubber mounts|
|Max CPU Cooler Height||Up to 155mm|
|Max VGA Card Length||Up to 340mm long video card|
|Power Supply||Not included|
|Motherboard Compatibility||ATX, Micro ATX|
|External 5.25" Drive Bays:||0|
|Internal 2.5" Drive Bays||Up to 3|
|Internal 3.5" Drive Bays||Up to 3|
|Top Ports||1 x USB 3.0, 1 x USB 2.0,HD Audio|
|Dimensions(HxWxD)||480mmx197mmx427mm / 18.9 x 7.8 x 16.8 inches|
|Weight:CSAZ-231||3.75Kg / 8.3 lbs|
|RGB Light Effects||RGB light on the front.All RGB light devices controlled by motherboard|
|Left Side Panel||Transparent acrylic for CSAZ-231, tempered glass for CSAZ-231G|
|Available Fan Ports||2x120mm ports on the Top|
|2x120mm or 2x140mm ports in the Front|
|(2x120mm PRISMA-RGB Fan included)|
|1x120mm Fan port in the rear|
|Dust Filters||Removable(Magnetic) dustproof PVC Net on the bottom of chassis|
|Water Cooling||Supports radiators up to 240mm in front|
|Isolated Chamber||Power supply is housed inside its own isolated chamber, preventing its heat from affecting other components|
|Easy Installation Cooler||A pre-cut hole for easy installation of CPU Cooler, eliminating the need to remove the motherboard|

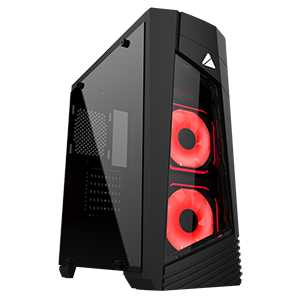

Azza PC Case Review
Minimalistic designs are in. The Blaze 231 is a minimalist’s case and provides all the necessary features for an awesome gaming rig.
With a transparent side-panel, you can show off your rig with pride! With water cooling support and exceptional cable management, the Blaze 231 offers great airflow to help keep your rig cool for those intense gaming sessions.
Supporting some of the longest video cards in the market at 370mm, as well as compatibility with various motherboard sizes, the Blaze 231 is diverse enough to fit a variety of different setups.
Several red led fans are included, further enhancing airflow and giving the case a custom look. While it may not have all the bells and whistles, it comes with all you need to create an amazing gaming setup. Sometimes, simpler is better!
‧Supports Video cards
up to 340mm in length.
‧Support 2.5" Devices x3
‧Support 3.5" HDD x3
Supports up to 2x120mm or 2x140mm fan
up to 240mm water cooling radiator in height.
Supports up to 2 x 120mm fan
Up to 120 mm water cooling radiator in length.
Supports 1x120mm fan
up to 120 mm water cooling radiator in height.
