1 x Prisma RGB 跑馬燈風扇
1 x RF 遙控器

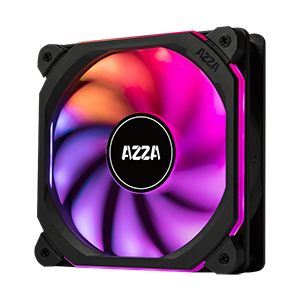

▪ATTRACTIVE –With Vibrant Digital RGB lighting and a unique Square design with individually addressable RGB LED diodes (5V), the PRISMA Digital RGB Square Fan is an attractive lighting option to any setup. WS2812B-compliant.
▪ENHANCED COOLING –Our fan blades will improve cooling performance with their unique design.
▪QUIET – Rubber pads are mounted on all four corners of the fan, offering improved performance over standard fans by offering less vibration, less noise, and less turbulence.
▪SYNC DIGITAL RGB – By plugging the AZZA PRISMA digital RGB square fan into a motherboard/lighting controller that is compatible with addressable RGB lights, the lighting and fan speeds can be controlled directly.
|Model Name||Prisma Digital RGB|
|Model Number||FFAZ-12DRGB-011/FFAZ-12DRGB-211 (Include RF Remote)|
|Rating Voltage||DC12V (Fan) DC5V (LED)|
|Rated Voltage||DC6.0-13.8V (Fan) DC4.5-5.3V (LED)|
|Start-up Voltage||DC6V (Fan) (ON/OFF) DC4.5V (LED) (ON/OFF)|
|Rated Currend||Max: 240A (Fan) Max: 1080mA (LED)|
|Life Expectancy||40000 hrs ,25℃|
|Bearing Type||Hydro Bearing|
|Fan Speed||600 RPM|
|4-1PIN Digital WS2812B RGB:Male & Female|
Instead of a tiny ring of light,why not light up the whole thing?
With a frame constructed of acrylic material, the PRISMA DIGITAL RGB fan allows for Digital RGB lightning to illuminate evenly throughout the entire frame, giving you a clean Digital RGB aesthetic.
Rubber pads are mounted on all four corners of the fans, offering improved performance over standard fans by offering less vibration, less noise, and less turbulence
PRISMA Digital RGB SQUARE Fan Installation For Motherboard
Connecting a strip to an incorrect connector can potentially cause damage to the LED strip, due to the RGB, and Digital RGB connectors providing different voltages .
Our digital RGB devices are WS2812B-compliant. Each fan contains 18 digital/addressable LED diodes. The WS2812B standard supports up to 60 diodes at the maximum for a single header, so please do not daisy-chain more than 3 digital RGB fans together.
