尺寸：630mm x 300mm x 655mm (H x W x D)
▪Supports up to 400mm long video card.
▪Available Fan Ports:
4x120mm or 3x140mm ports on the Top
3x120mm or 2x140mm ports in the front
4x120mm or 3x140mm ports on the Bottom
1x120mm or 1x140mm Fan port in the rear
▪Supports radiators up to 280-420mm on top/240-360mm in front/240 on the bottom.

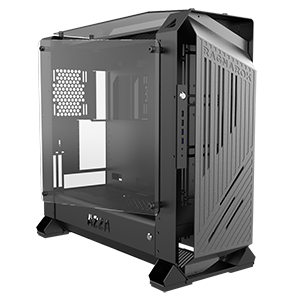

|Model Name||Ragnarok 801|
|Type||E-ATX, ATX, Mini ITX, XL-ATX, Dual System|
|Color||Black (exterior)/Black (interior)|
|Side Panel Window||Left、Right、Top side of panel : Tempered Glass With Rubber Mounts|
|Max CPU Cooler Height||Up to 175mm|
|Max video Card Length||Up to 400mm long video card|
|Power Supply||Not Included, supports dual power supplies|
|Motherboard Compatibility||E-ATX、ATX、Micro ATX、Mini ITX、 XL-ATX|
|External 5.25" Drive Bays:||0|
|Internal 2.5" Drive Bays||Up to 4|
|Internal 3.5" Drive Bays||Up to 4|
|Top Ports||2 x USB 3.0, 2 x USB 2.0,HD Audio|
|Dimensions(HxWxD)||630mmx300mmx655mm / 24.8 x11.8 x 25.8 inches|
|Weight||21.5Kg / 47.4 lbs|
|Front Panel||Aluminum plate|
|Tempered Glass Windows On Three Sides||High-quality tempered glass side window allows for clear visuals to inner components|
|Available Fan Ports||4x120mm or 3x140mm ports on the Top|
|3x120mm or 2x140mm ports in the front|
|4x120mm or 3x140mm ports on the Bottom|
|1x120mm or 1x140mm Fan port in the rear|
|Dual System Mode||Mini-ITX & ATX|
|Water Cooling||Supports radiators up 280-420mm on top/240-360mm in front/240 on the bottom.|
|Isolated Chamber||Power supply is housed inside its own isolated chamber, preventing its heat from affecting other components|
|Easy Installation Cooler||A pre-cut hole for easy installation of CPU Cooler,eliminating the need to remove the motherboard|
Azza PC Case Review
The Ragnarok 801 is a two-in-one system, giving you the power to choose how to use it. It can be a slick gaming case, or a dual-system case.
When used as a gaming case, the Ragnarok 801 can support dual systems and dual power supplies, allowing you to house two separate system. Of course, it can also support two water cooling radiators as well, for all your cooling needs. The Ragnarok 801 also sports a high-quality transparent side panel, so that you can show off your internal components in style.
With plenty of spots for fans and cooling, the Ragnarok 801 offers exceptional cooling performance in both modes. This truly versatile case will be sure to accommodate for all of your computing needs.
A transparent, attractive chassis
High-quality transparent side panel allows for clear visuals to inner components. Let you boldly show creative characteristic with RGB lights.
